2 Bay SSD TBT3 Docking Station

Model:SI-417TB3
.Dual M.2 PCIe SSD speeds up to 1500MB/s.
.Dual Thunderbolt™3 supports 40G to host.
.Thunderbolt™ 3 supports PD 87W charging.
.1x USB3.2-C supports 10Gbps & PD 5V@3A.
.1x USB-A supports 10Gbps & PD 5V@2.4A.
.2x USB-A supports 5G and BC1.2 5V@2.4A.
.1x DP 1.4 supports 8K@30H/4K@60Hz output.
.1x Gigabit Ethernet 100-1000M network port.
.1x SD transfer speed up to 270MB/s reader.
.Compact design, creating the neat environment.
.A set for a headphone and a microphone.
Contact Download

Ultra Speed & Rugged design

Model No.

SI-417TB3

Item

2 Bay SSD TBT3 Docking Station

Certifications

CE, FCC, RoHS(compliance)

Material

High-quality Aluminum

Dimensions

141.0 x 140.0x 42.0 mm

Interfaces

2 x M.2 PCIe NVMe (M-key) Slots
2 x Thunderbolt
3 40Gbps ports
1 x DisplayPort 1.4 8K@60Hz port
1 x RJ45 1GbEthernet LAN port
1 x USB3.2 10G USB-C port
1 x USB3.2 10G USB-A port
2 x USB3.2 5G USB-A ports
1 x SD 4.0 UHS-II Slot
1 x DC-Jack Socket
1 x Audio port
1 x Mic port

LED

1 x Functional LED power indicator

Optional

2 x Thunderbolt™ 3 40Gbps Cable
1 x External Power Adaptor (20V/7.5A)
1 x Retail Color Box

OS Support

Mac OS / Windows

Environment

Operating Temperature: 5°C ~ 55°C
Operating Humidity: 20%RH ~ 80%RH
Storage Temperature: -20°C ~ 50°C
Storage Humidity: 20%RH ~ 80%RH

Features

2x M.2 PCIe SSD transfer speeds up to 1500MB/s.
Dual Thunderbolt™3 ports support 40G to hosts.
TBT3 ports support 87W power delivery charging.
1x DisplayPort 1.4 supports 8K@30H / 4K@60Hz.
1x USB3.2 USB-C supports 10Gbps and PD 5V@3A.
1x USB3.2 USB-A supports 10Gbps & PD 5V@2.4A.
2x USB3.2-A supports 5Gbps and BC1.2 5V@2.4A.
A set for headphone/microphone expansion port.
1x SD4.0 transfer speed up to 270MB/s reader.
1x Gigabit Ethernet 100-1000M network port.
Compact design, creating a neat environment.

Advantages

[HD Video]
Connect DisplayPort1.4 to enjoy 5K@60Hz video output.
[Flash Transmission]
Equipped with Thunderbolt™ 3-port 40Gbps flash transmission.
[Powerful Expansion]
Support 1GbE network port/DP1.4 port 5K@60Hz output.
[High-End HDD]
For high-end HDD M.2 NVMe PCIe 1500MB/s transmission.
[Professional Accessories]
Satisfying memory card SD4.0 UHS-II card reading/transfer 270MB/s.
[Device Sharing]
USB-C 10G/USB-A 5G port and headphone/microphone port.
[Charging Station]
USB-C (PD 3.0), USB-A (BC1.2) for charging external devices.
[Minimal Design]
Multi-port reduces space clutter and greatly improves work efficiency.

Usage Scenario

[Video Creation]
With DP high-definition image output brings best video & audio work efficiency.

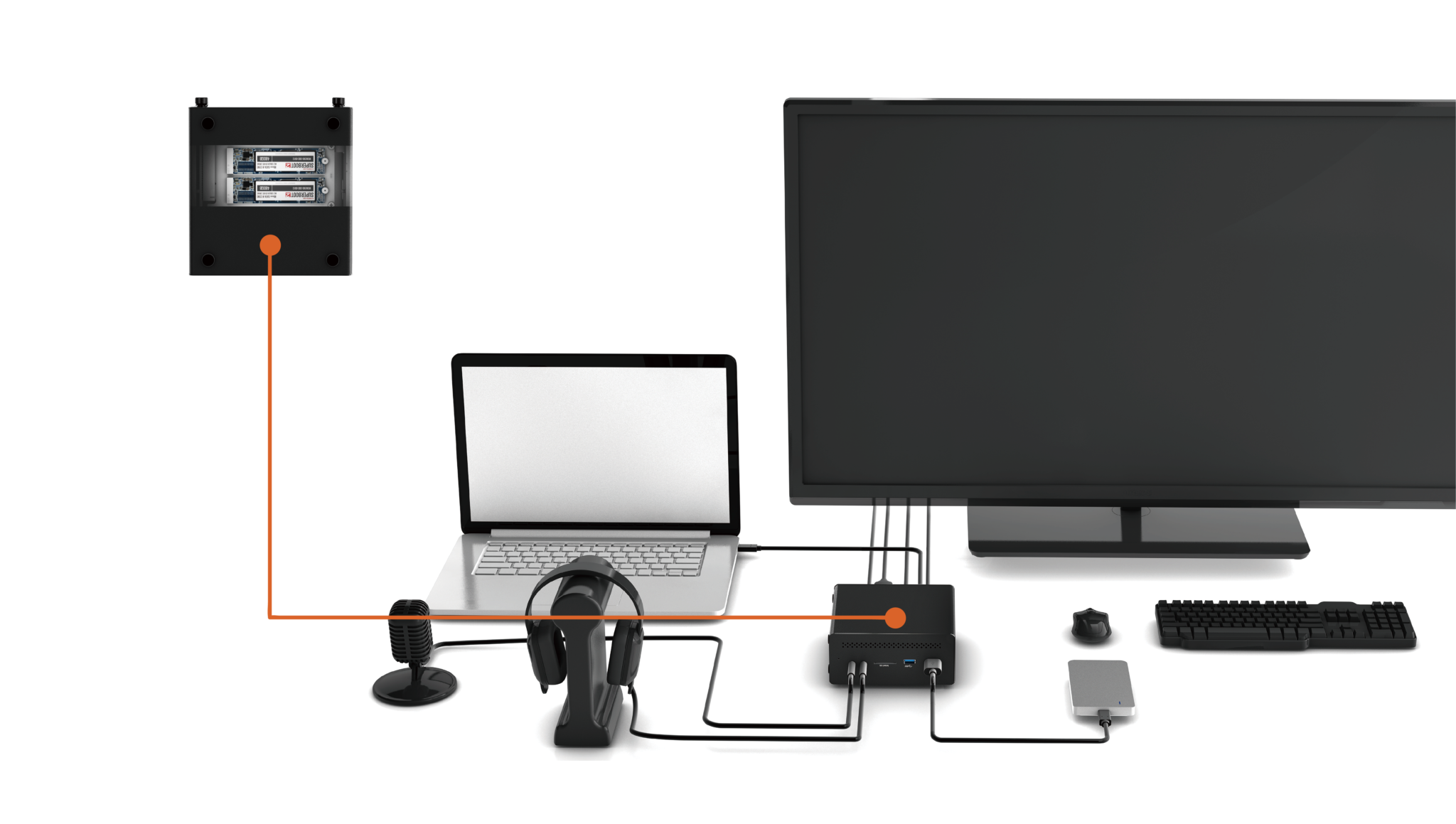

[SOHO]
Plug & plug function,
with M.2 SSD slot, Gigabit Ethernet port, mouse port, keyboard port and multiple TB/USB ports for external devices.
[Design Work]
Transmission of large files remains stable, say goodbye to any crash!
[Photography Creation]

With excellent stability, high-efficiency SD4.0 card reading, and writing, your work efficiency on content creation will be greatly improved.
[Personal use]
TBT3 interface with Apple 5K Retina makes the monitor more efficient.

End-User

Business Office, Home Sharing, Video Creation, Design Engineer, Control Room, Remote Office, Financial Institution, Remote Server, Educational institutions, Portfolio Careerist, General Consumer
