Model No.
|
SI-9923KVM
|
|
Item
|

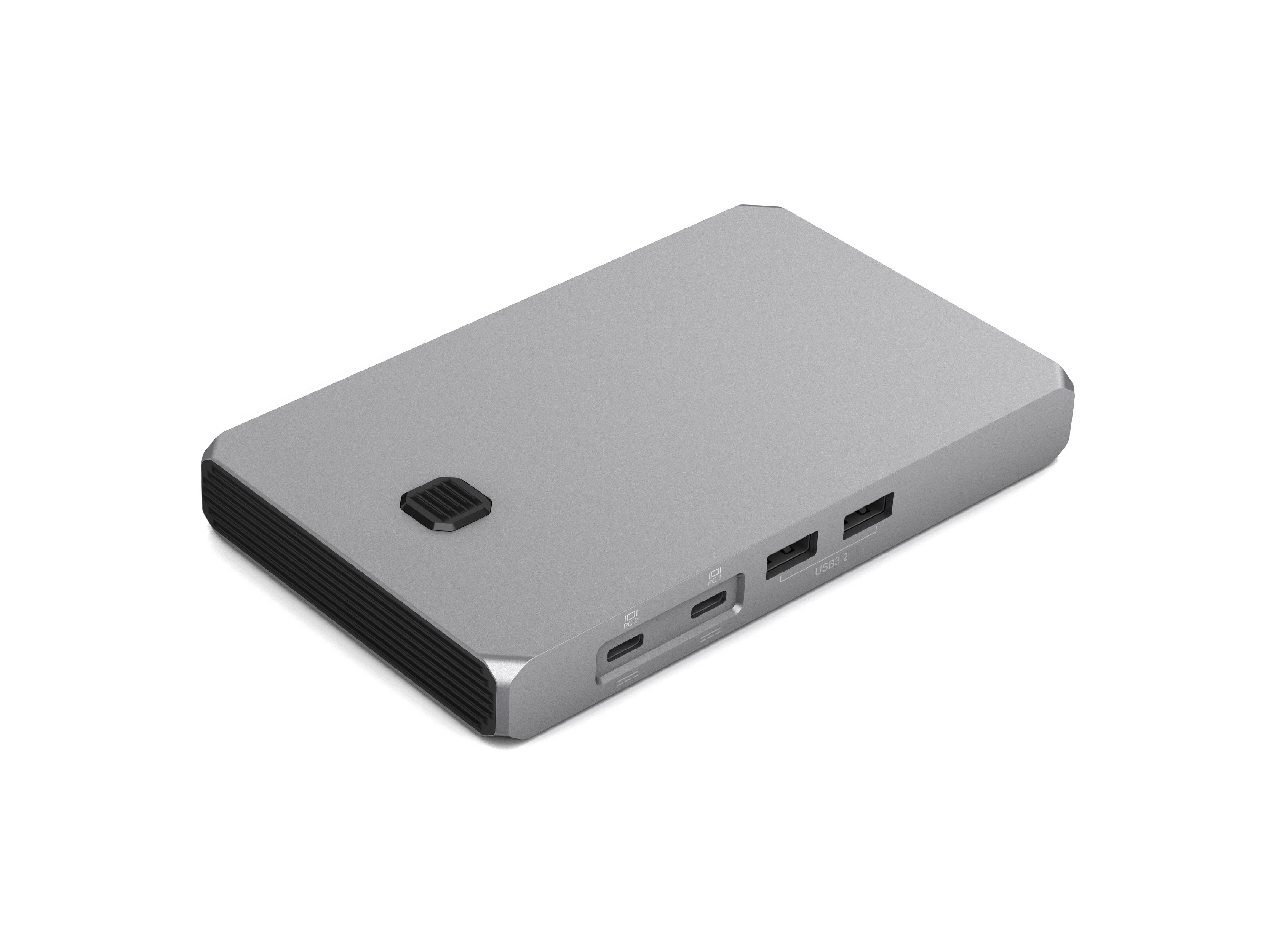

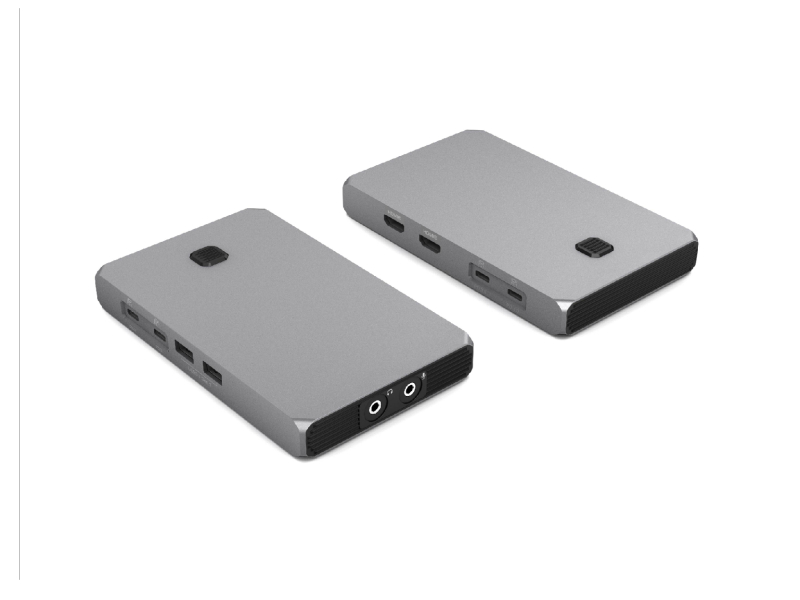

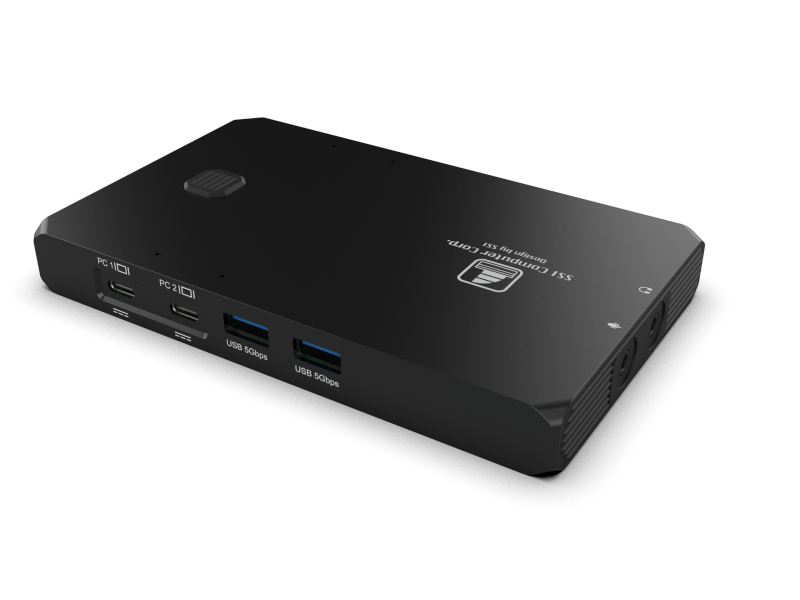

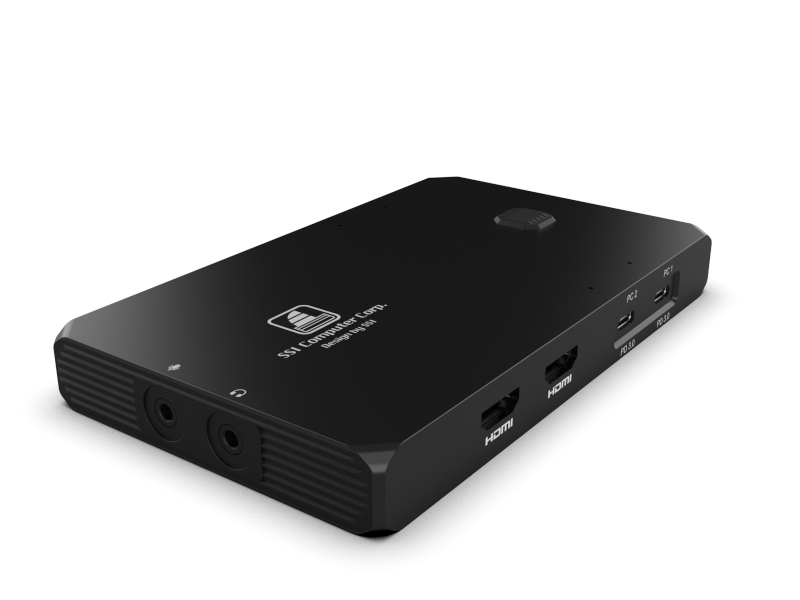

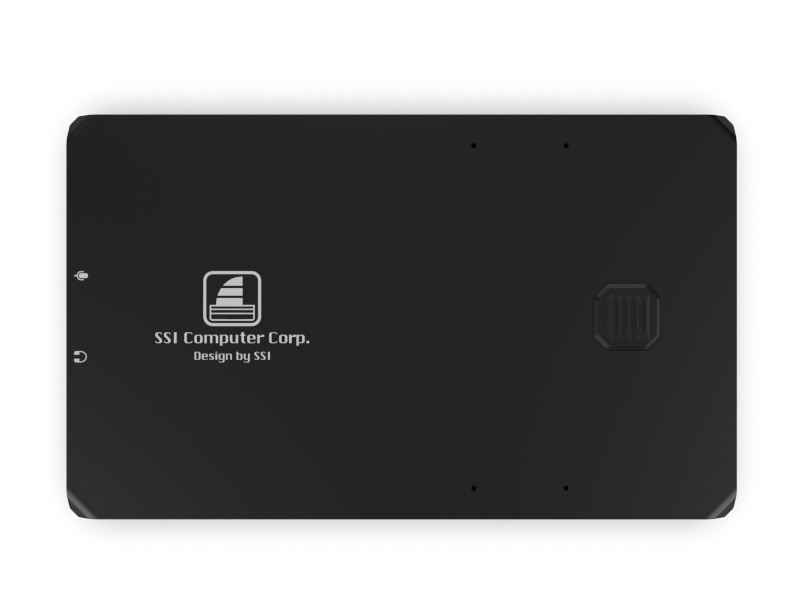

2 to 2 USB-C KVM Dock
|
|
Certifications
|
CE, FCC, RoHS(compliance)
|
|
Material
|
High-quality Aluminum
High-strength ABS+PC plastic
|
|
Dimensions
|
149.0 x 90.0 x 18.0 mm
|
|
Interfaces
|

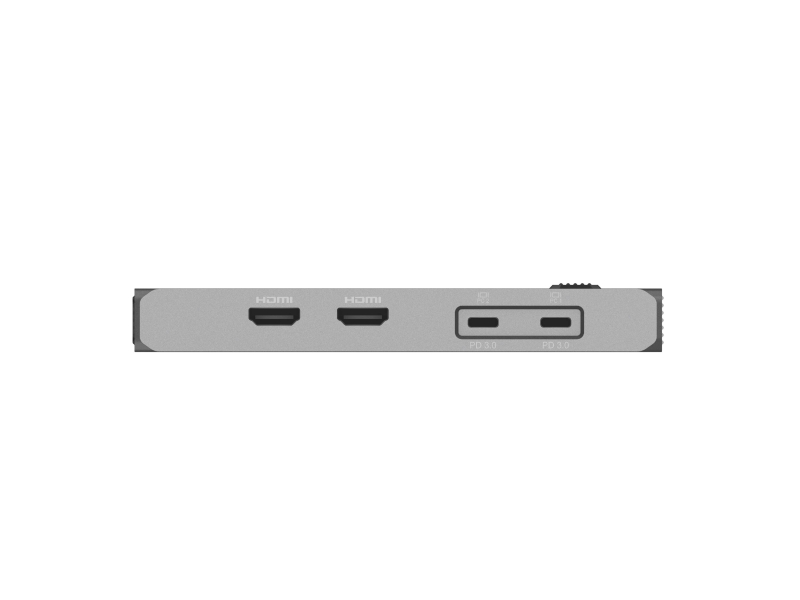

1 x HDMI 4K@30Hz port (output)
1 x HDMI 1080P port (output)

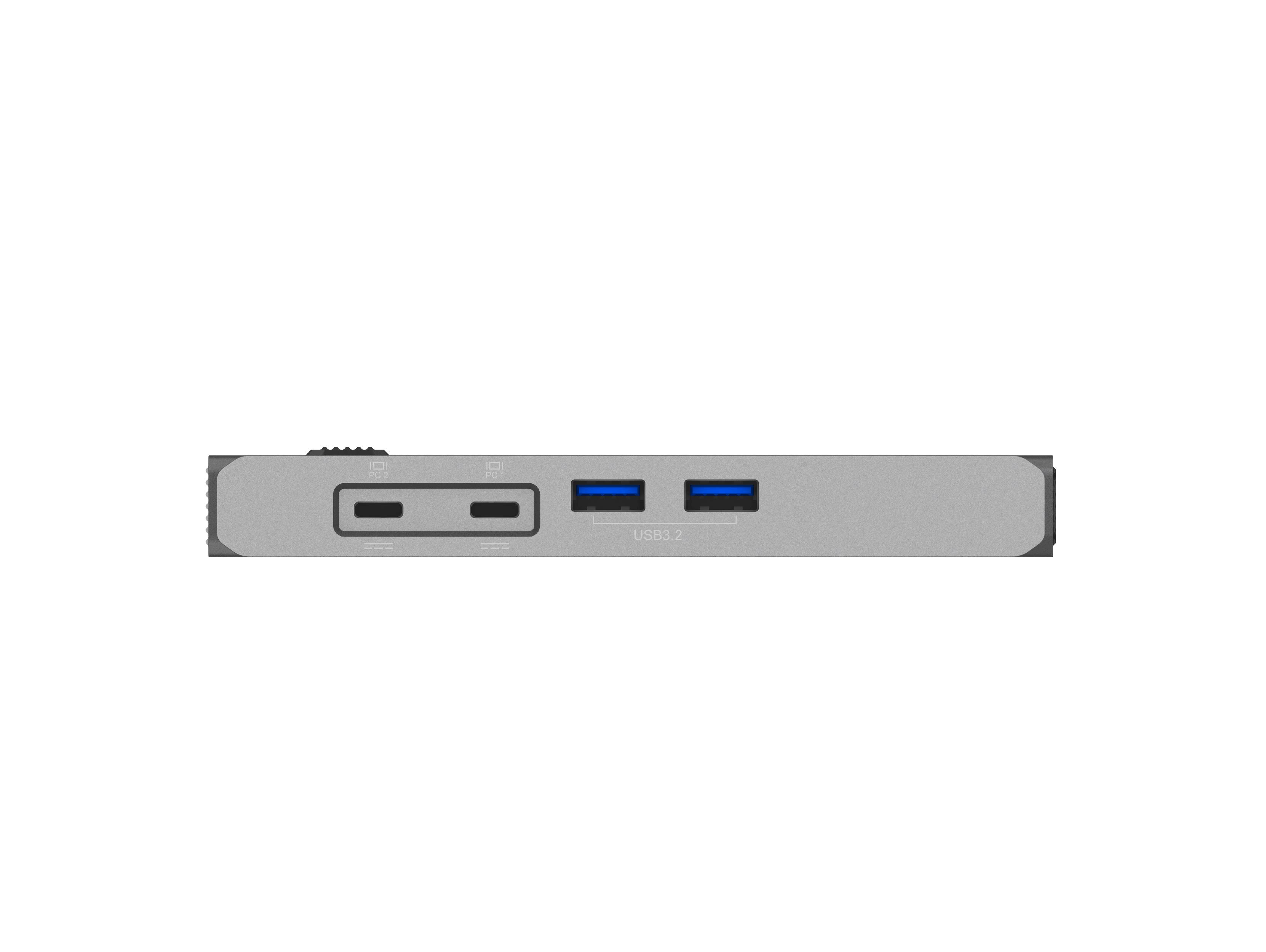

2 x USB-C 5G ports (input)
2 x USB-C PD 3.0 ports
2 x USB-A 5G HUB ports

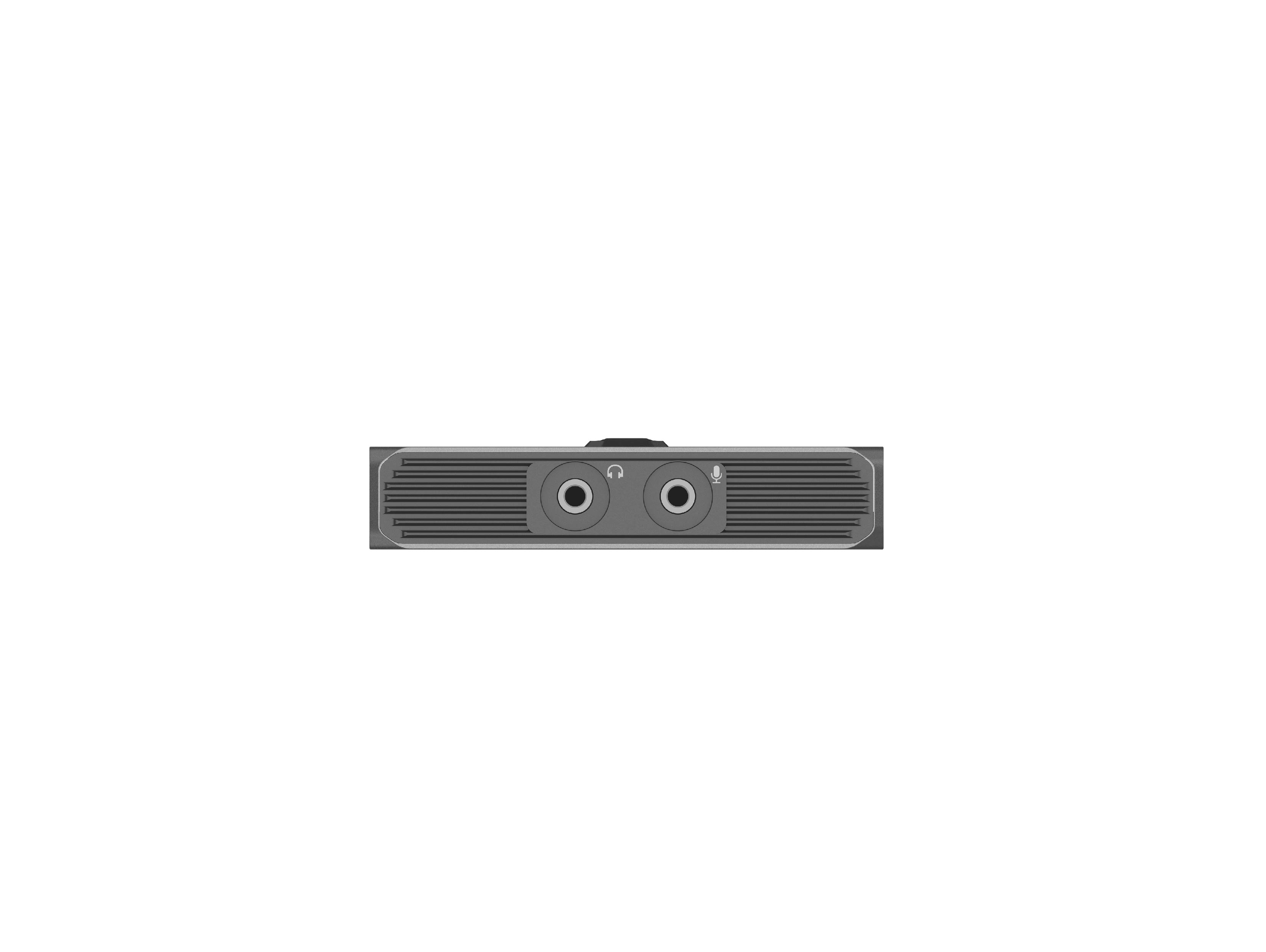

1 x Headphone port + 1 x Microphone port
|
|
Optional
|
1 x Retail Color Box
|
|
OS Support
|
Mac OS / Windows
|
|
Environment
|
Operating Temperature: 5°C ~ 55°C
Operating Humidity: 20%RH ~ 80%RH
Storage Temperature: -20°C ~ 50°C
Storage Humidity: 20%RH ~ 80%RH
|
|
Features
|
．1 button to switch input source for PC1/2.
．Support 2 x hosts to transfer and display.
．Enable HDMI1.4 model support 4K@30Hz.
．Support USB-C and USB-A 5Gbps to host.
．Compatible M1/M2 based MacBook, TB3.
．With headphone port & microphone port.
．OCP function, device over current power.
．Plug & play, no need to install any driver.
|
|
Advantages
|
[KVM Application]
USB-C dual-port input, dual HDMI 4K@30Hz/1080P switch in seconds.
[Screen Sharing]
Connect mobile phones, tablets, laptops, and desktops to share a large screen.
[High-Definition Video]
Equipped with HDMI1.4, enjoy high-quality 4K@30Hz video output.
[Light Body]
KVM expansion designed for personal use, light & easy to carry.
[Device Sharing]
Mouse/keyboard/external device, no need to plug and plug between two hosts.
[Cost Down]
Users can switch through a set of devices to avoid space clutter.
[Easy Operation]

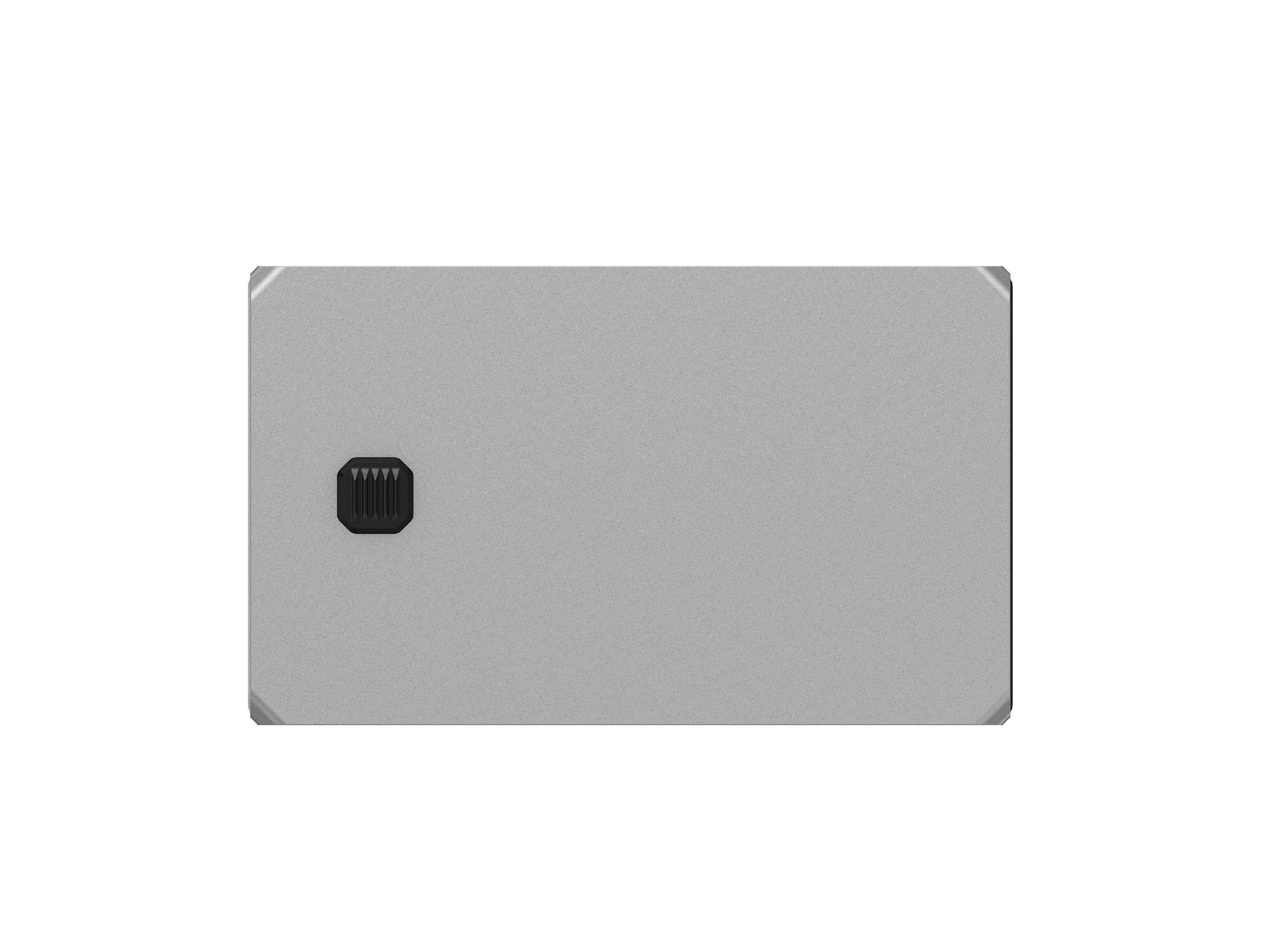

Equipped with PC1/ 2 switch extension button & LED indicator.
|
|
Usage Scenario
|
[Home Sharing]
Multiple hosts/devices share and switch between 4K@30Hz display.
[Video Creation]
With DP high-definition image output brings ultimate video work efficiency.
[Remote Control]
Multi-device dual display switching control, controlling dual groups of monitors and hosts.
[Work from Home]
Easy switching between two computers, participating in remote conferences and work from home at the same time.
[Engineering Design]
Multi-window editing, switch between 2 monitors & 2 hosts.
[Financial Investment]
Multi-screen display of investment and financial management, banking, and financial trading cabinets.
[Plant Room]
Single console, improve control and productivity to save costs.
|
|
End-User
|
Home Sharing, Video Creation, Design Engineer, Control Room, Remote Office, Financial Institution, Remote Server, Factory Production, Data Center, Personal Use, General Consumer
|
