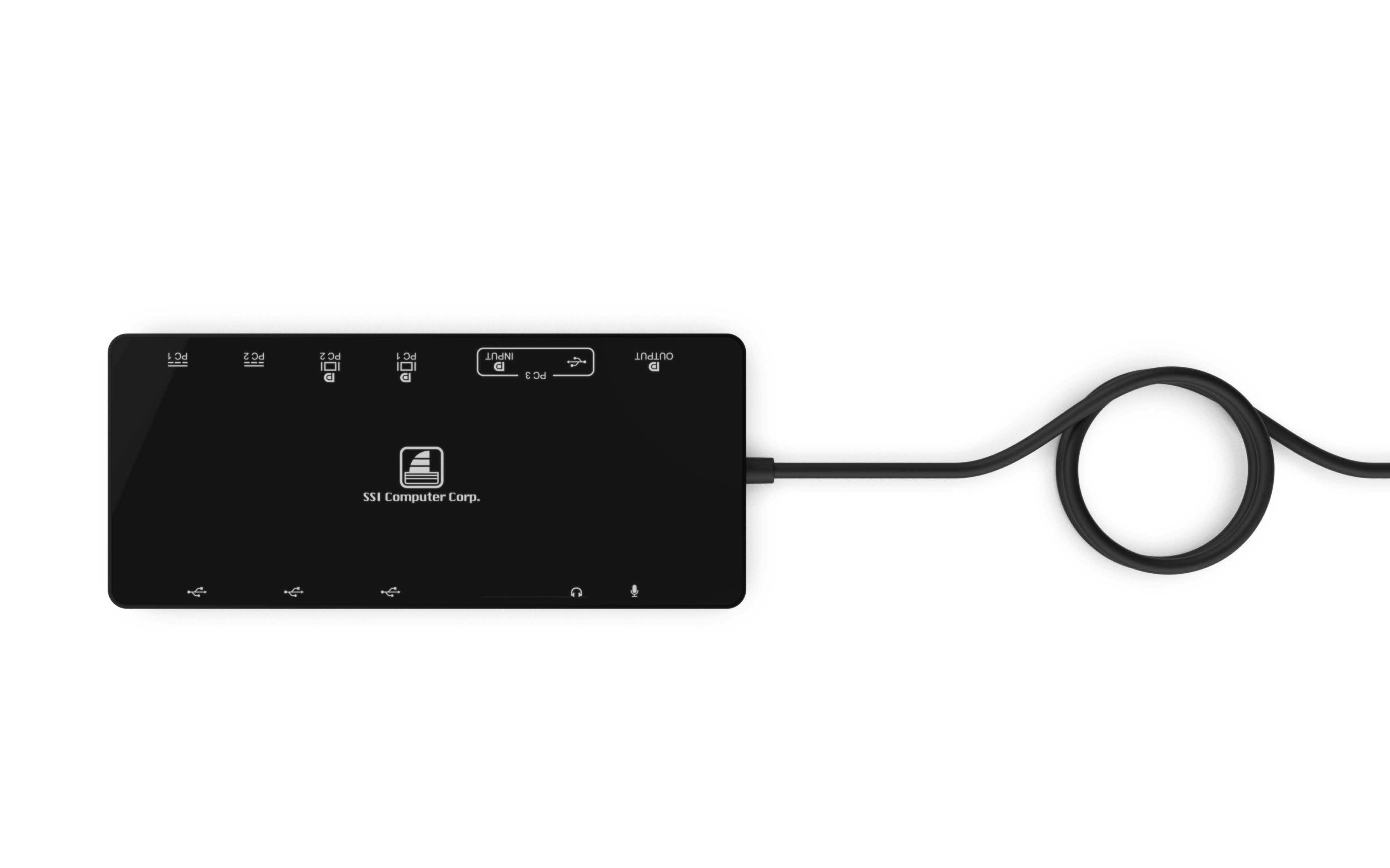

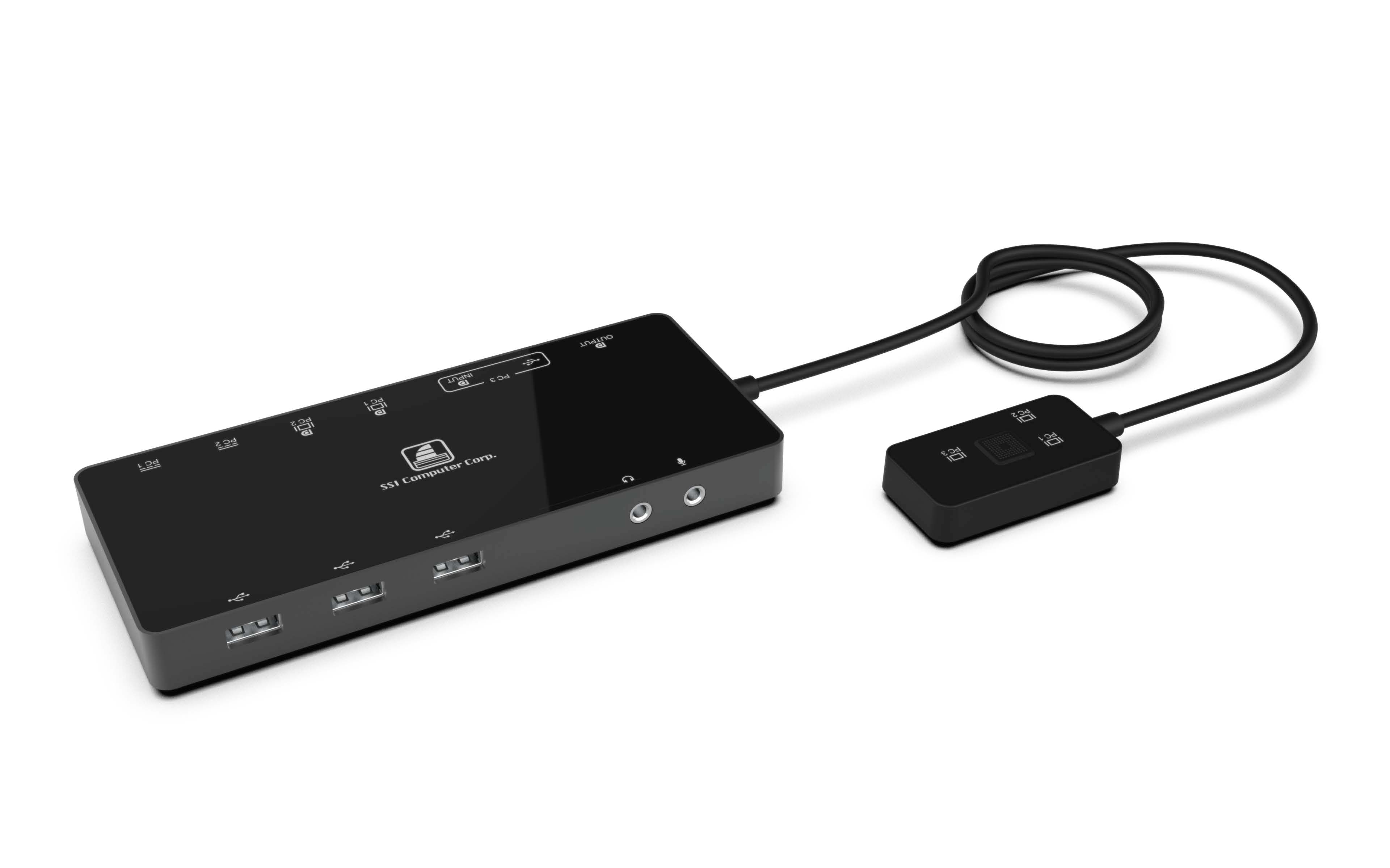

3 to 1 USB-C with legacy USB KVM Dock

Model:SI-4531KVM
.3 to 1 KVM, supports 4K@60Hz outputs.
.Compatible TB & USB-C with DP function.
.1x DP1.4 port supports 8K@60Hz output.
・3x USB-A for connecting external devices.
・DP1.4 and USB2.0 input for PC3 desktop.
・Support PD3.0 charge for PC1/PC2.
.Bus power, unnecessary external power.
Contact Download

Model No.

SI-4531KVM

Item

3 to 1 USB-C/legacy USB KVM Dock

Certifications

CE, FCC, RoHS(compliance)

Material

High-quality Aluminum
High-strength ABS+PC plastic

Dimensions

165.0 x 71.2 x 16.5 mm

Interfaces

1 x USB2.0 Micro-B Port + 1 x DisplayPort 1.4 (For PC3)
2 x USB-C for DP Alternate Ports (For PC1 & PC2)
2 x USB-C PD3.0 Ports (For PC1 & PC2)
1 x DisplayPort 1.4 8K@60Hz (output)
3 x USB2.0 USB-A HUB Ports
1 x Audio Port + 1 x Mic Port

Button

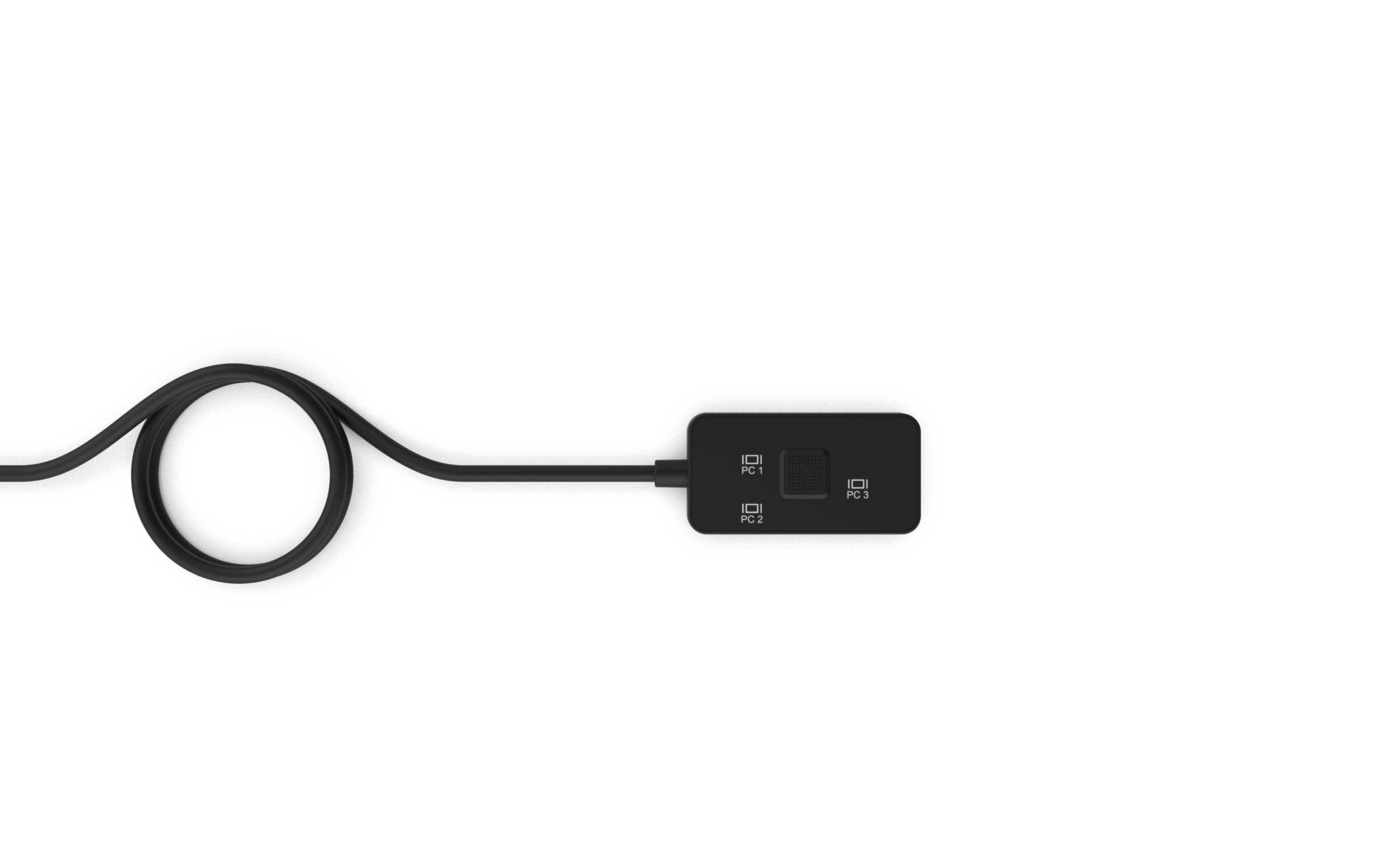

1 x Hosts option switchover button

LED

4 x Functional LED for PC input indicate

Optional

1 x USB-A to Micro-B Cable
1 x USB-C to C Cable
1 x Retail Color Box

OS Support

Mac OS / Windows

Environment

Operating Temperature: 5°C ~ 55°C
Operating Humidity: 20% ~ 80% RH
Storage Temperature: -20°C ~ 50°C
Storage Humidity: 20% ~ 80% RH

Features

3 to 1 KVM, supports 4K@60Hz outputs.
Compatible TB & USB-C with DP function.
1x DP1.4 port supports 8K@60Hz output.
3x USB-A for connecting external devices.
DP1.4 and USB2.0 input for PC3 desktop.
Support PD3.0 charge for PC1/PC2.
Bus-power, unnecessary external power.

Advantages

[One-Key Switch]
Easy switching between dual hosts, the key extension design is more.
[Device Sharing]
A set of mouse and keyboard devices can be used between two hosts without plugging.
[High-Definition Video]
Support DP1.4 8K@60Hz high-definition video output.
[Cost Saving]
Users can switch through a set of devices to reduce clutter.
[Charging Station]
USB-C with PD 3.0 charging for mobile phones and tablets.
[Special Function]
Equipped with PC switch extension button and LED indicator.

Usage Scenario

[Home Sharing]
Multiple hosts/devices share and switch between 8K@60Hz displays.
[Video Creation]
With DP high-definition image output brings ultimate video work efficiency
[Remote Control]
Multi-device dual display switching control, controlling dual groups of monitors and hosts
[Work From Home]
Easy switching between two computers, participating in remote conferences and work from home at the same time.
[Engineering Design]
Multi-window editing, switch between two monitors and hosts

[Financial Investment]
Multi-screen display of investment and financial management, banking, and financial trading cabinets.
[Plant Room]
Single console, improve control and productivity to save costs.

End-User

Home Sharing, Video Creation, Design Engineer, Control Room, Remote Office, Financial Institution, Remote Server, Factory Production, Data Center, Personal Use, General Consumer
