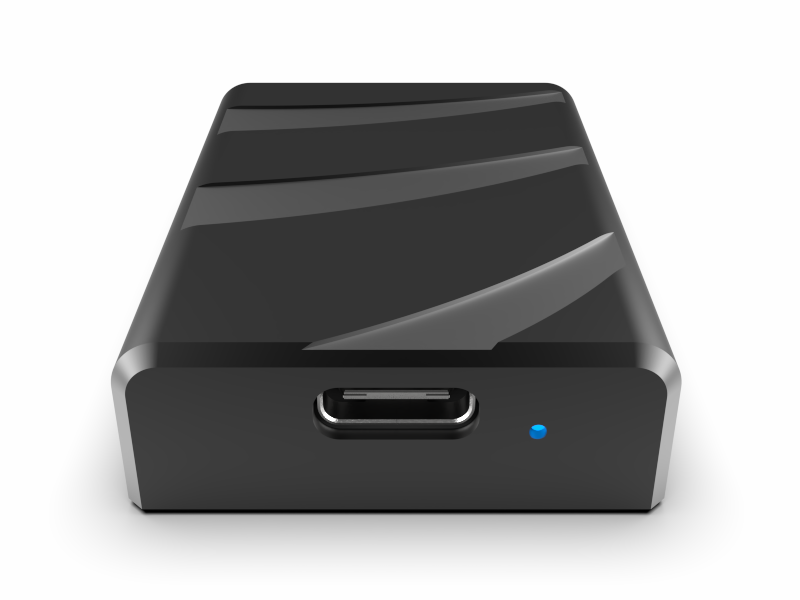

10G-MSDExpress-B Card Reader

 SI-4203MSDEx

Item

10G-MSDExpress-B Card Reader

Dimensions

45.0x 32.0 x 11.0mm

Interfaces

1 x USB3.2 Gen.2x1 Type-C upstream.
1 x SD Express Socket.
1 x LED for power indicator.

OS Support

Mac OS / Windows

Environment

Operating Temperature: 5°C ~ 55°C
Operating Humidity: 20%RH ~ 80%RH
Storage Temperature: -20°C ~ 50°C
Storage Humidity: 20%RH ~ 80%RH

Features

A. High quality aluminum body for optimized heat dissipation.
B. Dimensions: 45.0x32.0x11.0mm
C. Functional LED power indicator

D. Supports USB3.2 Gen2x1 10Gbps to host, Compatible 1x PCIe Gen3x1 NVMe SD
Express bridge controller to host. backward compatible with USB 5Gbps and
USB 480Mbps.
E. This SD 7.1 SD Express card has a read speed of up to 985MB/s (theoretical
value) and ~800MB/s in real-world applications. Support Type-C Smartphones
with OTG function.
F. Card Reader supports backward compatibility with the speed of UHS-I (Ultra
High Speed-I).
G. Supporting BOT and UASP mass storage specifications.
H. Plug & play, automatically installs drivers.
I. Bus powered.


Power & Accessories

A. Retail Color Box x 1.
B. USB Cable USB3.2 Gen.2 Type-C to Type-C 0.3 Meter x 1PCS. (Option
