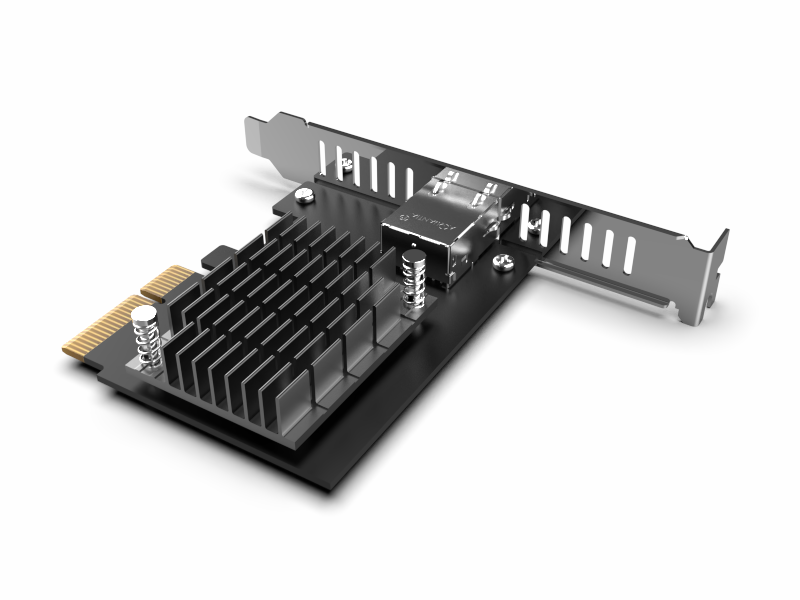

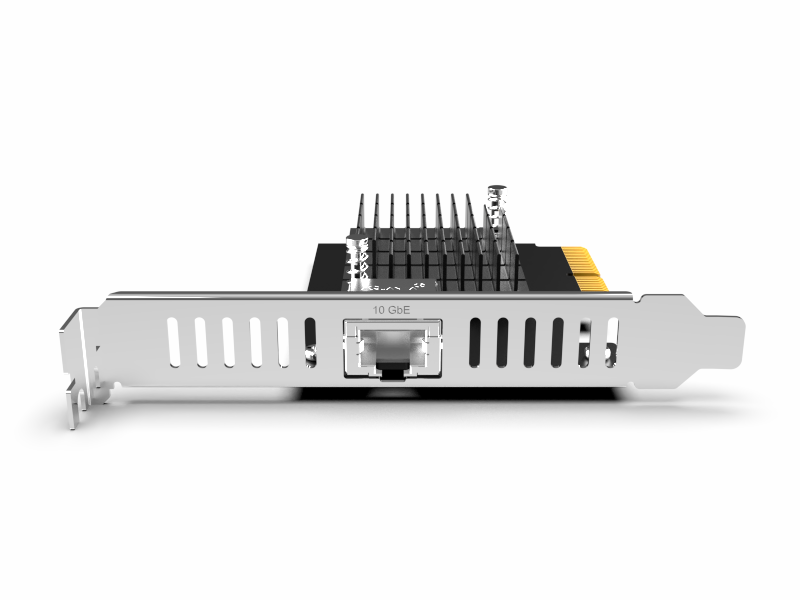

10GbE PCIe ADD-ON CARD

Model No.

SI-1242PCIe

Item

10GbE PCIe ADD-ON CARD

Dimensions

216.0 x 111.5 x 945.0

Interfaces

1x PCI-Express 4x connector pin-out.
1 x Ethernet port.

OS Support

A. Mac OS X 14.5and future releases.
B. Windows7/ 8/8.1 32 and 64 bit, Windows 10/11 32 and 64 bit and future releases.
C. Linux 6.5 and future releases.

Environment

- Operating Temperature: 5°C ~ 55°C
- Operating Humidity: 20%RH ~ 80%RH
- Storage Temperature: -20°C ~ 50°C
- Storage Humidity: 20%RH ~ 80%RH

Features

A. High quality aluminum heat sink for optimized heat dissipation.
B. Dimensions: 94.5x111.5x21.6mm.
C. Functional LED: RJ45 automatic LED indicator displays the status through the
lights next to the network port.
D. Support PCI-Express 4x Connector Pin-Out link to PCIe chipset bridge
downstream each driver.
E. Supports that delivers 10 GbE network connectivity speed through Cat 6a,
Backward compatibility with 5 GbE and 2.5 GbE network connections.

F. Support L0s/L1/L23/L3 power saving states.
G. Support wakes up function in S3/S4.
H. Support LTR/AER.
I. Support SRIS on both upstream and downstream ports.
J. Max Payload Size = 512Byte
