28-Bay PCIe Gen5 x16 Cache Accelerator AIC
．2x MCIO x8 (Downstream Port DPR Support)
．PCIe Gen5 x16 (512 GT/s)
|
Model No. |
SI-1253A PCIe |
|
Item |
28-Bay PCIe Gen5 x16 Cache Accelerator AIC |
|
Certifications |
CE, FCC, RoHS(compliance) |
| Material | FR-4 PCB / ENIG finish / LCP connector / SMT assembly |
|
Dimensions |
335mm x 103mm x 42mm |
| Interfaces |

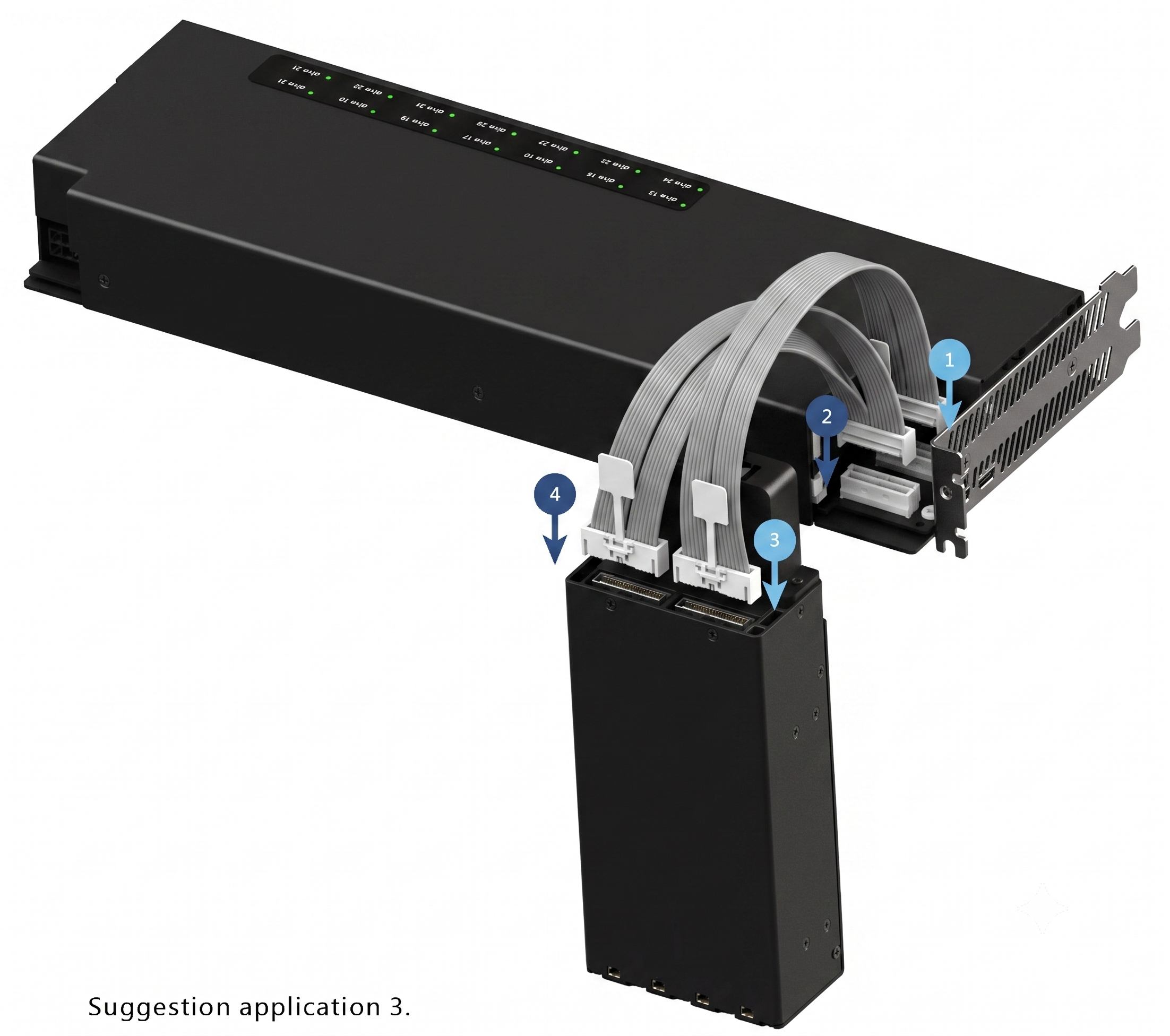

Upstream: PCIe Gen5 x16 (512 GT/s) Storage Slot: 28x NVMe Gen5 M.2 SSD 2280 Expansion: 2x MCIO x8 (Downstream Port DPR Support) Power Input: EPS 8-Pin |
|
OS Support |
Windows,Windows Server,Linux |
|
Environment |
Operating Temperature : 0°C to 50°C Storage Temperature : -40°C to 85°C Operating Humidity : 10% to 90% relative humidity non-condensing Storage Humidity : 5% to 95% relative humidity non-condensing |
|
Features |
．High-Density Storage: Supports up to 28x NVMe Gen5 M.2 SSDs with a maximum capacity of 224TB (8TB per drive). ．Premium PCIe Switch: Powered by Broadcom AtlasII PEX89144 switch for efficient data routing. ．Storage Scalability: Downstream MCIO x8 ports enable seamless daisy-chaining and external storage expansion. ．Surprise Hot Plug: Supports surprise hot plug functionality for reliable system maintenance. ．Active Cooling: Integrated high-efficiency heatsink and cooling fans ensure continuous Gen5 performance. |
