Model No.
|
SI-1245PCIe
|
|
Item
|

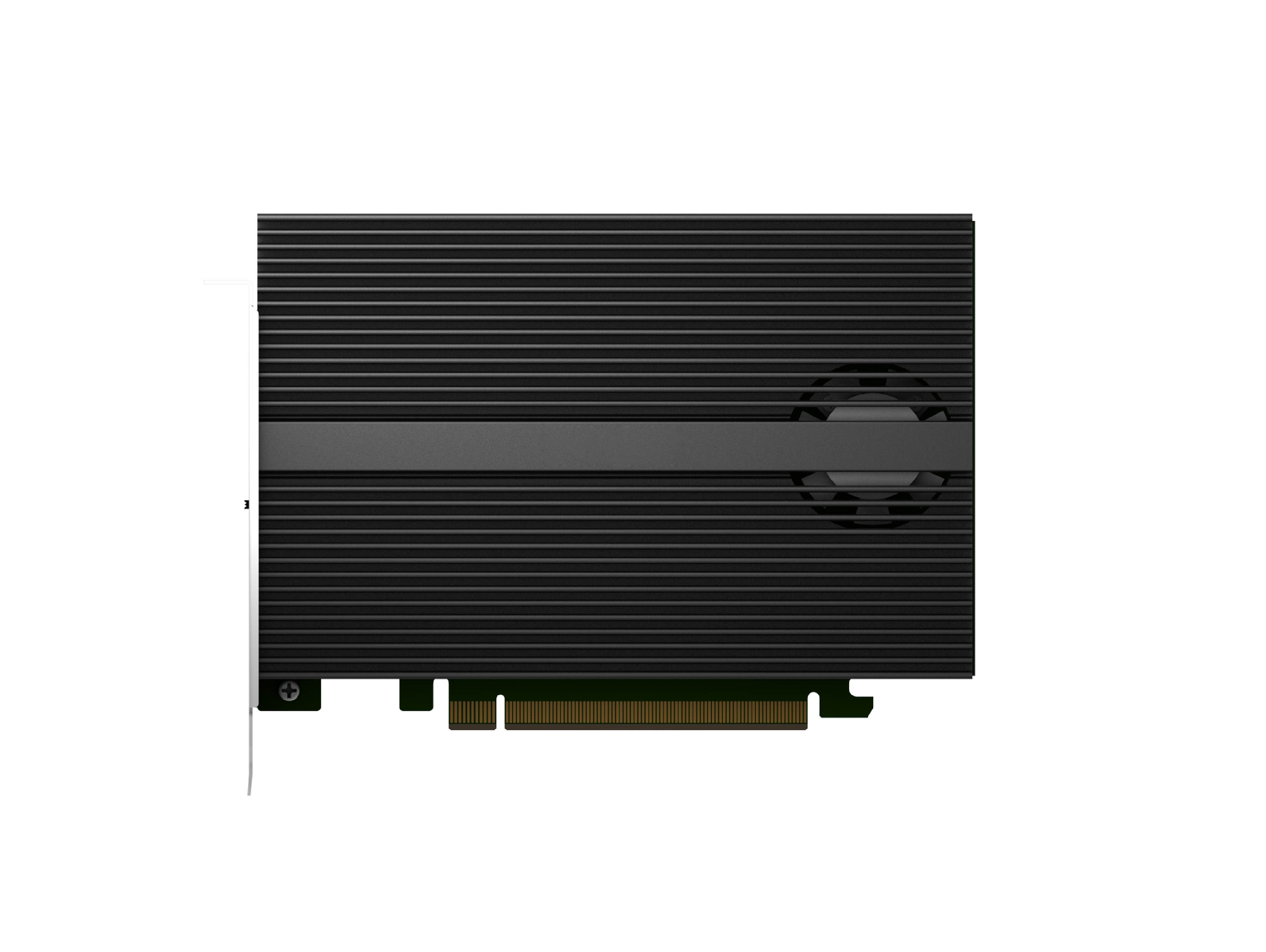

4 Bay M.2 NVMe SSD PCIex16 Add-on Card
|
|
Certifications
|
CE, FCC, RoHS(compliance)
|
|
Material
|
High-quality Aluminum
|
|
Dimensions
|
178.0 x 125.0 x 20.0 mm
|
|
Interfaces
|
1 x PCIe4.0 x16 lane port (Upstream)
4 x M-key M.2 NVMe SSD Slots
|
|
Button
|
1 x Power switches
|
|
Optional
|
1 x Retail Color Box
|
|
OS Support
|
Motherboard must support intel VROC or AMD Ryzen NVMe RAID
Motherboard Support List Reference

|
|
Environment
|
Operating Temperature: 5°C ~ 55°C
Operating Humidity: 20% ~ 80%RH
Storage Temperature: -20°C ~ 50°C
Storage Humidity: 20%RH ~ 80%RH
|
|
Features
|
．Motherboard PCIex16 channel to M.2 SSD.
．4 x M-key M.2 PCIe4.0 x 4 expansion slots.
．PCIe Gen4.0 x16 support 256GT/s to host.
．Motherboard must support PCIe Bifurcation.
．With fan (40*40*10 mm) for heat dissipation.
|
|
Advantages
|
[Extremely Fast Expansion]
Applicable to motherboard x16 channel 256GT/s with fast and large bandwidth.
[Best Performance]
Equipped with extremely fast and stable interface, space-saving M.2 PCIe with four-slot configuration.
[Optimized Mechanism]
The silent fan optimizes heat dissipation, equipped with metal baffles to increase firmness.
[Power-Saving Accessories]
Power switch on the left with high mobility, free to switch and expand.
[Safe Heat Dissipation]
Aluminum alloy material, fin design, set high heat dissipation silent fan.
|
|
Usage Scenario
|
[Entertainment Racing]
There is no conflict with high-speed graphics cards, and the speed and stability won’t be lost.
[3D Rendering]
Enlarge storage & create high-performance 3D rendering working environment.
[Enterprise/Personal Application]
System-side x16 channel PCIe4.0 x16 to M2 NVMe M-key adapter card.
|
|
End-User
|
Enterprise engineering, Audio-visual workers, Draftsmen, E-sports players, Business people, General consumers
|
