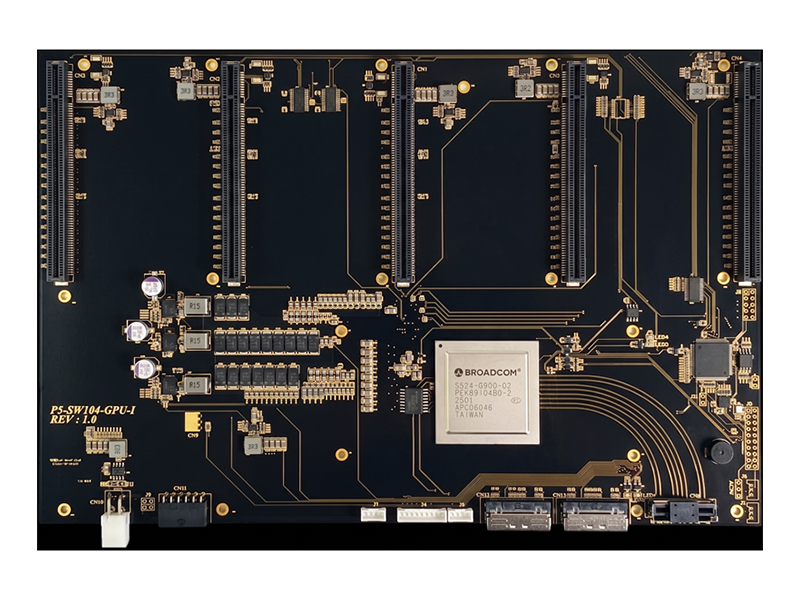

PCIe Switch Board
Downstream: 16x MCIO x8 Connectors (Maximum capacity)
|
Model No. |
SI-1254 PCIe |
|
Item |
PCIe Switch Board |
|
Certifications |
CE, FCC, RoHS(compliance) |
| Material | FR-4 PCB / ENIG finish / LCP connector / SMT assembly |
|
Dimensions |
220.5mm x 175mm |
| Interfaces |
2 x MCIO x8 (SFF-TA-1016) 1 x PCIe x16 edge connector (Gen4/Gen5) |
|
OS Support |
Windows,Windows Server,Linux |
|
Environment |
Operating Temperature : 0°C to 50°C Storage Temperature : -40°C to 85°C Operating Humidity : 10% to 90% relative humidity non-condensing Storage Humidity : 5% to 95% relative humidity non-condensing |
|
Features |
．Massive Bandwidth Architecture: Powered by Broadcom PEX 89144 switch, delivering up to 1024 GT/s Upstream (via 2 x Gen5 x16) and an ultra-high 4096 GT/s Downstream throughput (16 x Gen5 x8). ．Scalable Topologies: Features flexible MCIO grouping supporting up to 4x MCIO x8 links for upstream hosting and up to 16x MCIO x8 links dedicated to downstream GPU clusters. ．Visual Diagnostics: Onboard status LEDs including a green PCIe Switch Heartbeat LED and a green Switch Board Healthy LED for instant hardware verification. |
