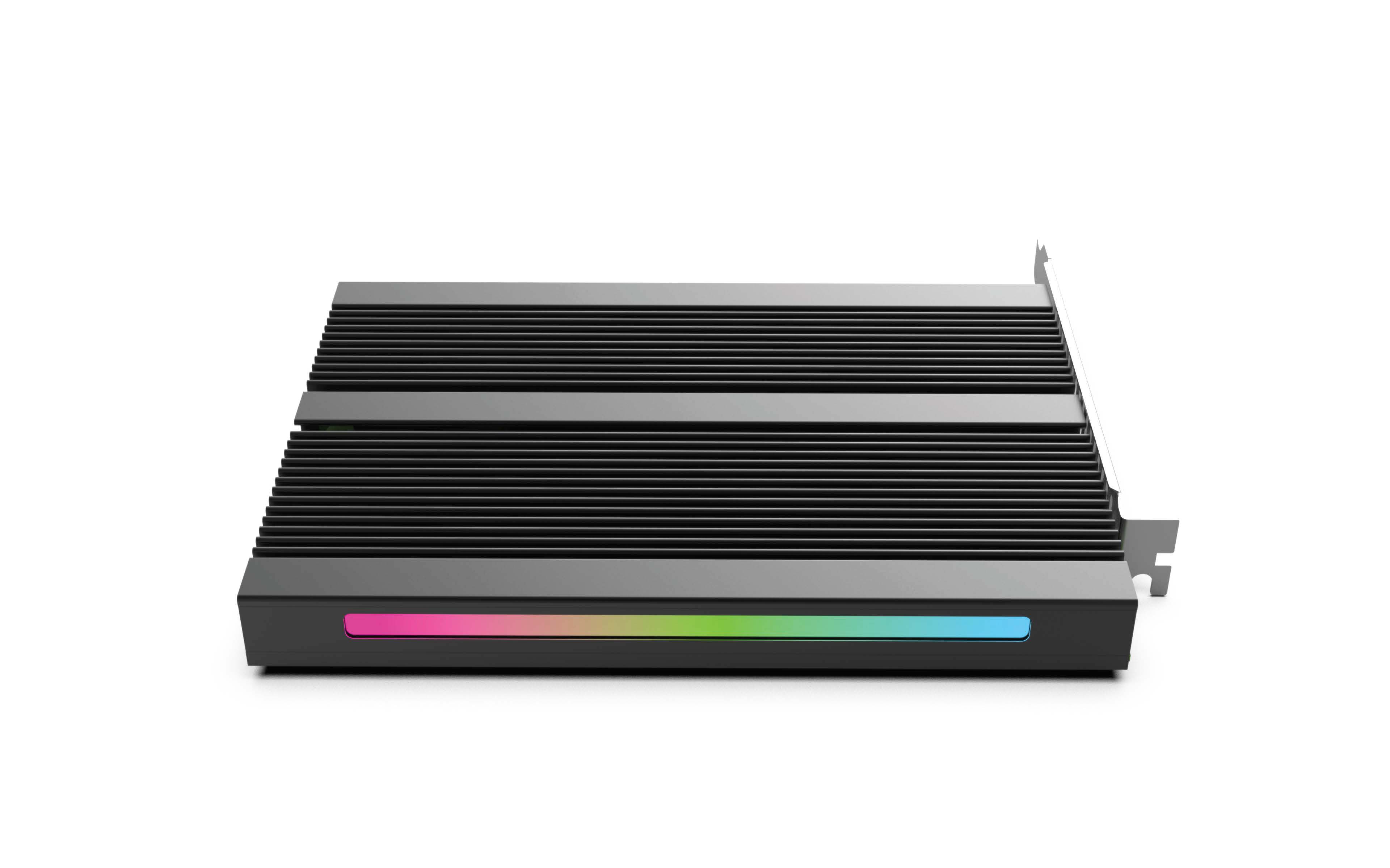

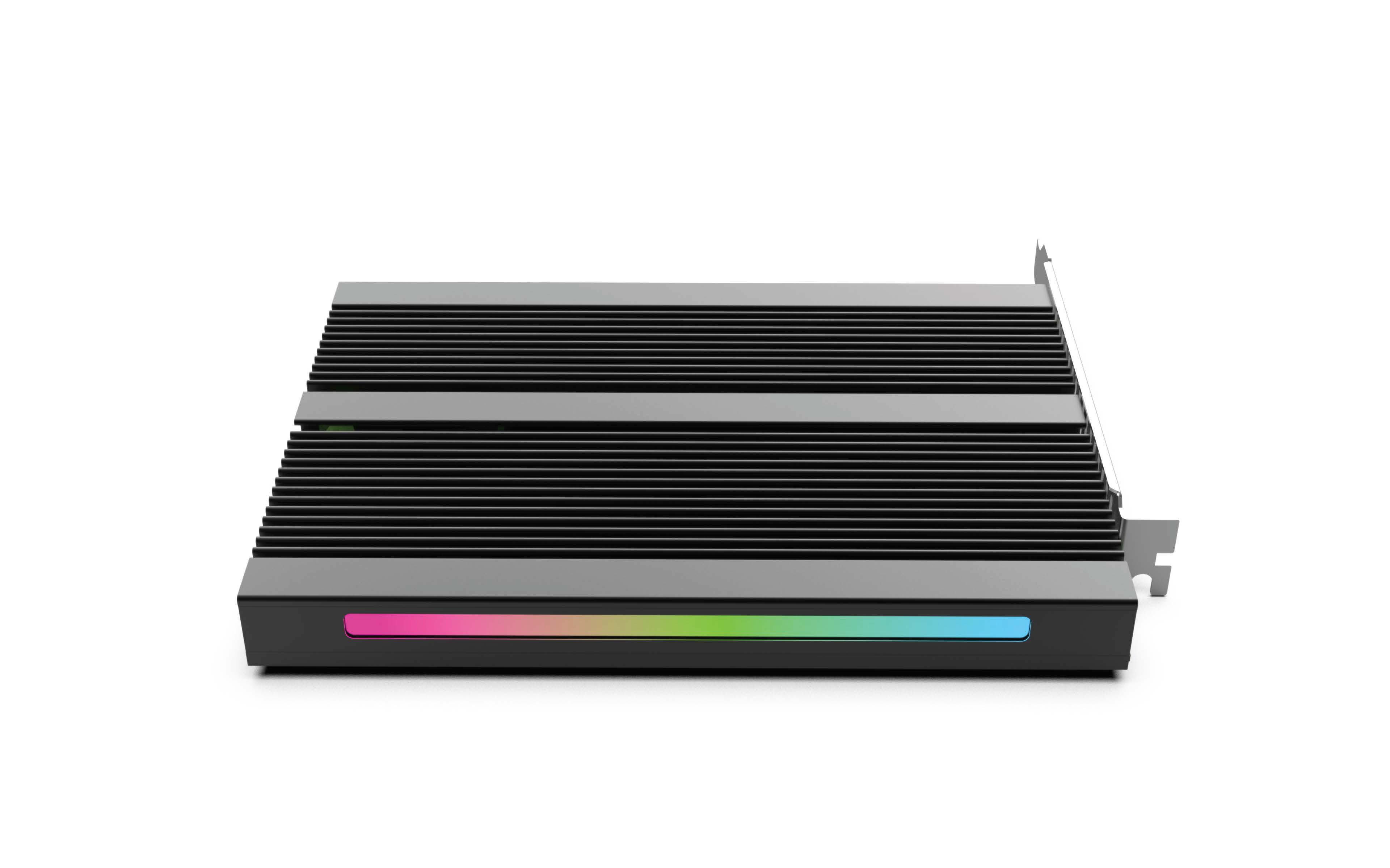

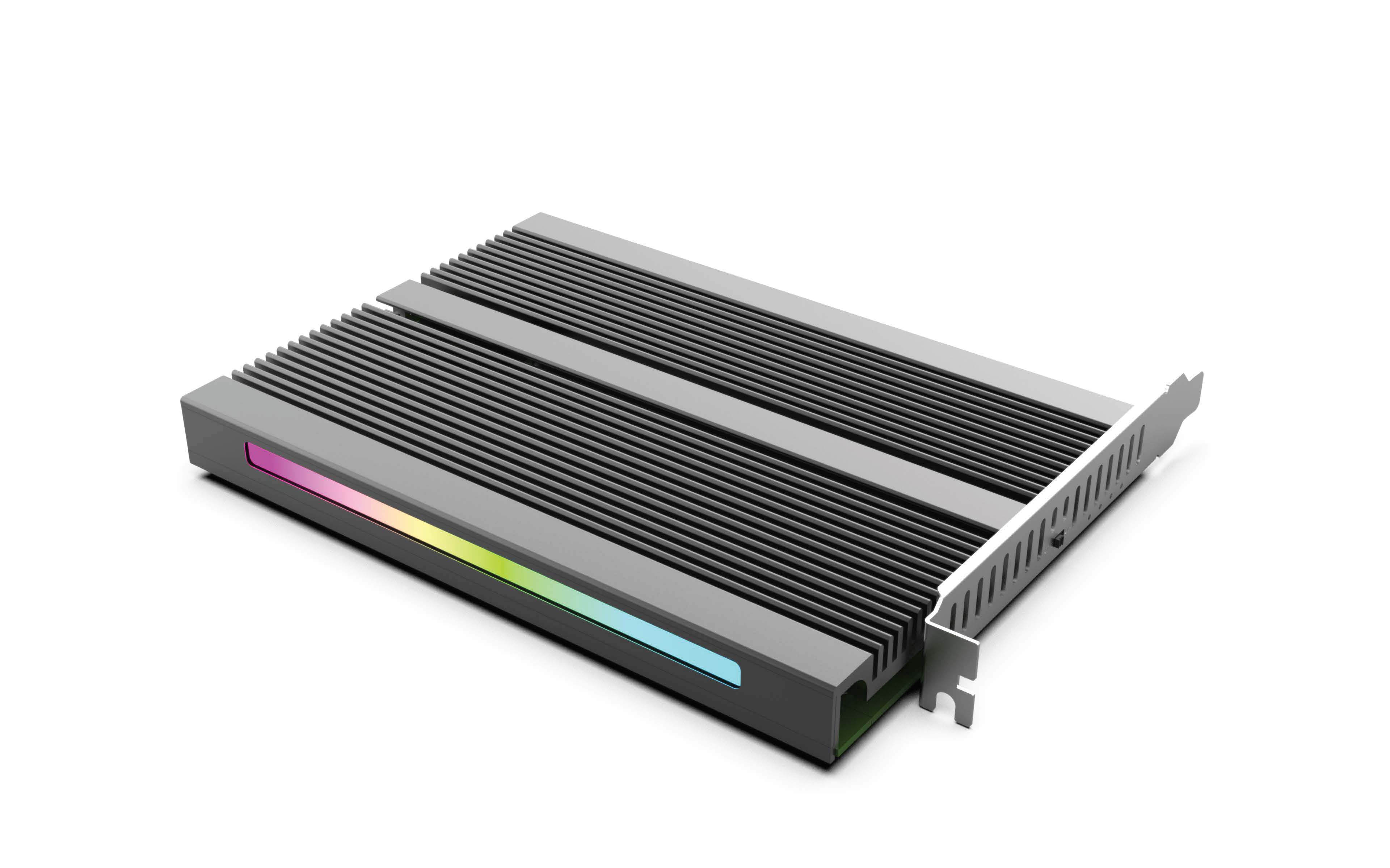

RGB 4 Bay M.2 NVMe SSD PCIex16 Add-on Card

Model No.

SI-1245PCIe RGB

Item

RGB 4 Bay M.2 NVMe SSD PCIex16 Add-on Card

Certifications

CE, FCC, RoHS(compliance)

Material

High-quality Aluminum

Dimensions

178.0 x 125.0 x 20.0 mm

Interfaces

1 x PCIe4.0 x16 lane port (Upstream)
4 x M-key M.2 NVMe SSD Slots

Button

1 x Power switches

LED

Dynamic RGB lights logo design

Optional

1 x Retail Color Box

OS Support

Motherboard must support intel VROC or AMD Ryzen NVMe RAID

Environment

Operating Temperature: 5°C ~ 55°C
Operating Humidity: 20%RH ~ 80%RH
Storage Temperature: -20°C ~ 50°C
Storage Humidity: 20%RH ~ 80%RH

Features

．Motherboard PCIex16 channel to M.2 NVMe.
．4 x M-key M.2 PCIe4.0x4 SSD expansion slots.
．PCIe Gen4.0 x16 support 256 GT/s to host.
．RGB light bar for added flair and style.
．Motherboard must support PCIE Bifurcation.
．With fan (40*40*10 mm) for heat dissipation.

Advantages

[Extremely Fast Expansion]
Applicable to the motherboard x16 channel 256GT/s extremely fast and large bandwidth.
[Best Performance]
Equipped with extremely fast and stable interface, space-saving M.2 PCIe with four-slot configuration.
[Optimized Mechanism]
Silent fan optimizes heat dissipation, equipped with metal baffles to increase firmness.
【RGB Lighting】
Multi-Color Glowing RGB lights and power indicator & activity indicator for hard disk reading.
[Power-Saving Accessories]
There is a power switch on the left side, with high mobility, free to switch and expand.
[Safe Heat Dissipation]

Aluminum alloy material, fin design, set high heat dissipation silent fan.

Usage Scenario

[Entertainment Racing]
There is no conflict with high-speed graphics cards, and the speed and stability won’t lost.
[3D Rendering]
Enlarge storage capacity and create a high-performance 3D rendering working environment.
[Enterprise/Personal Application]
System-side x16 channel PCIe4.0x16 to M2 NVMe M-key adapter card.

End-User

Enterprise engineering, Audio-visual workers, Draftsmen, E-sports players, Business people, General consumers
