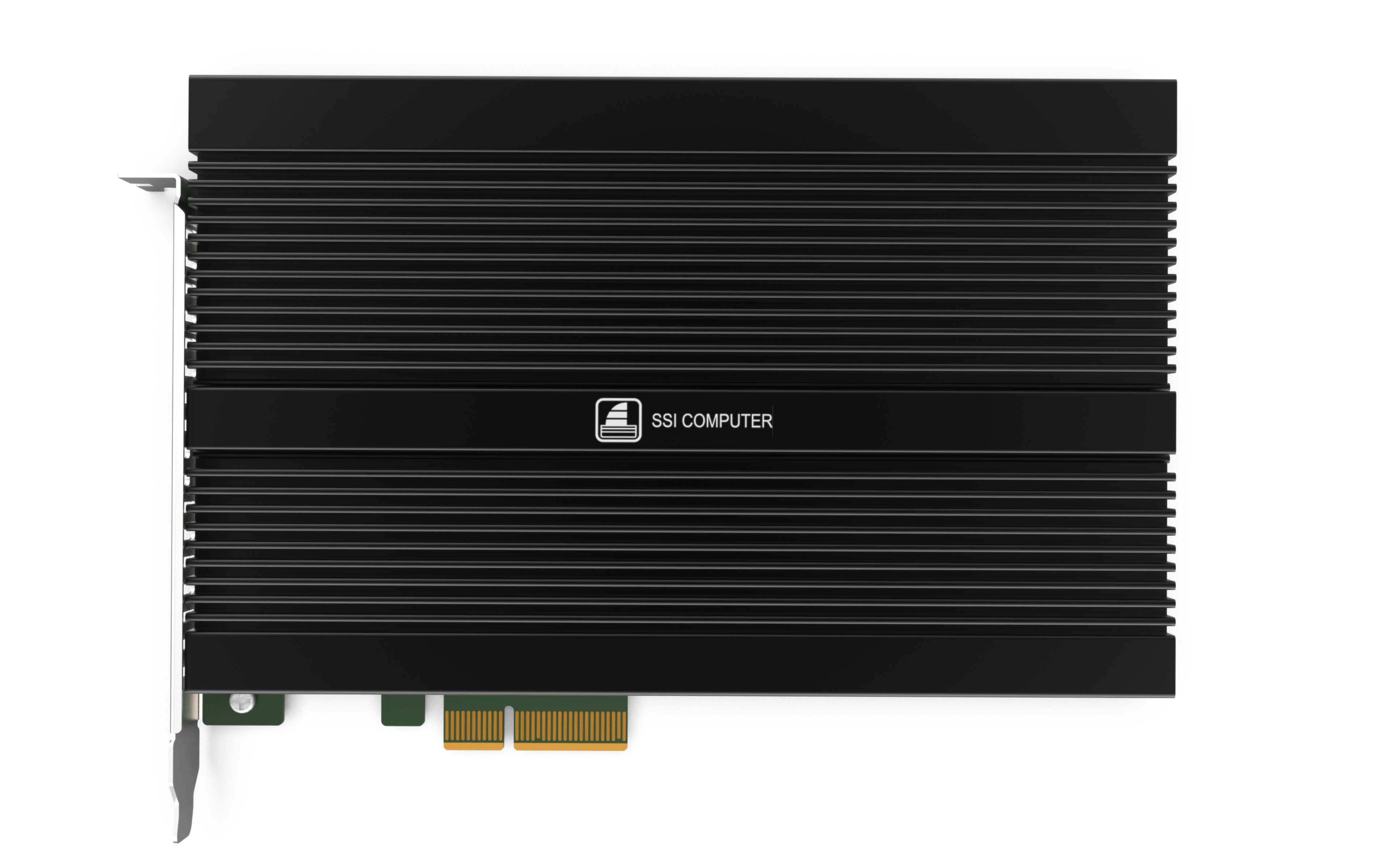

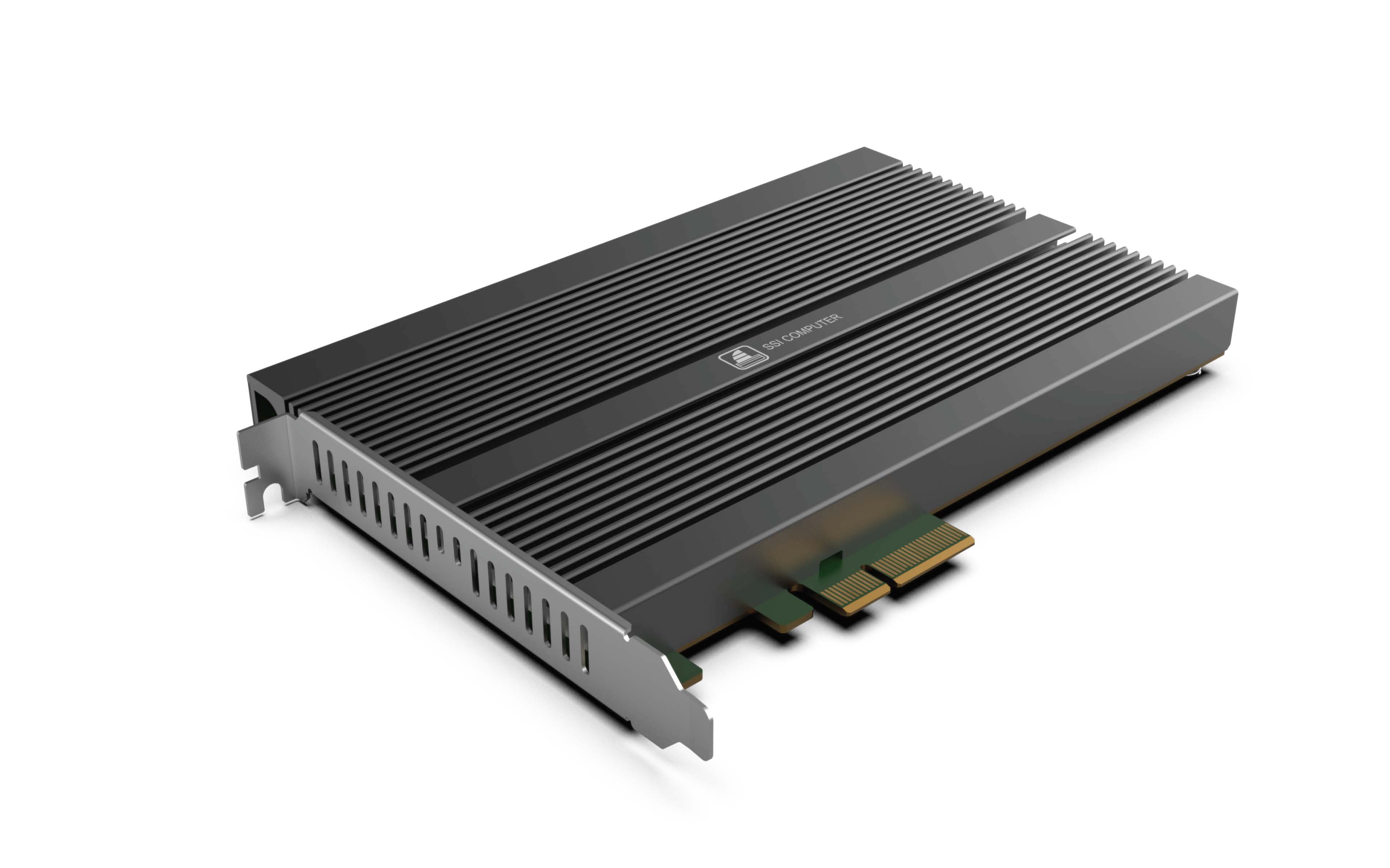

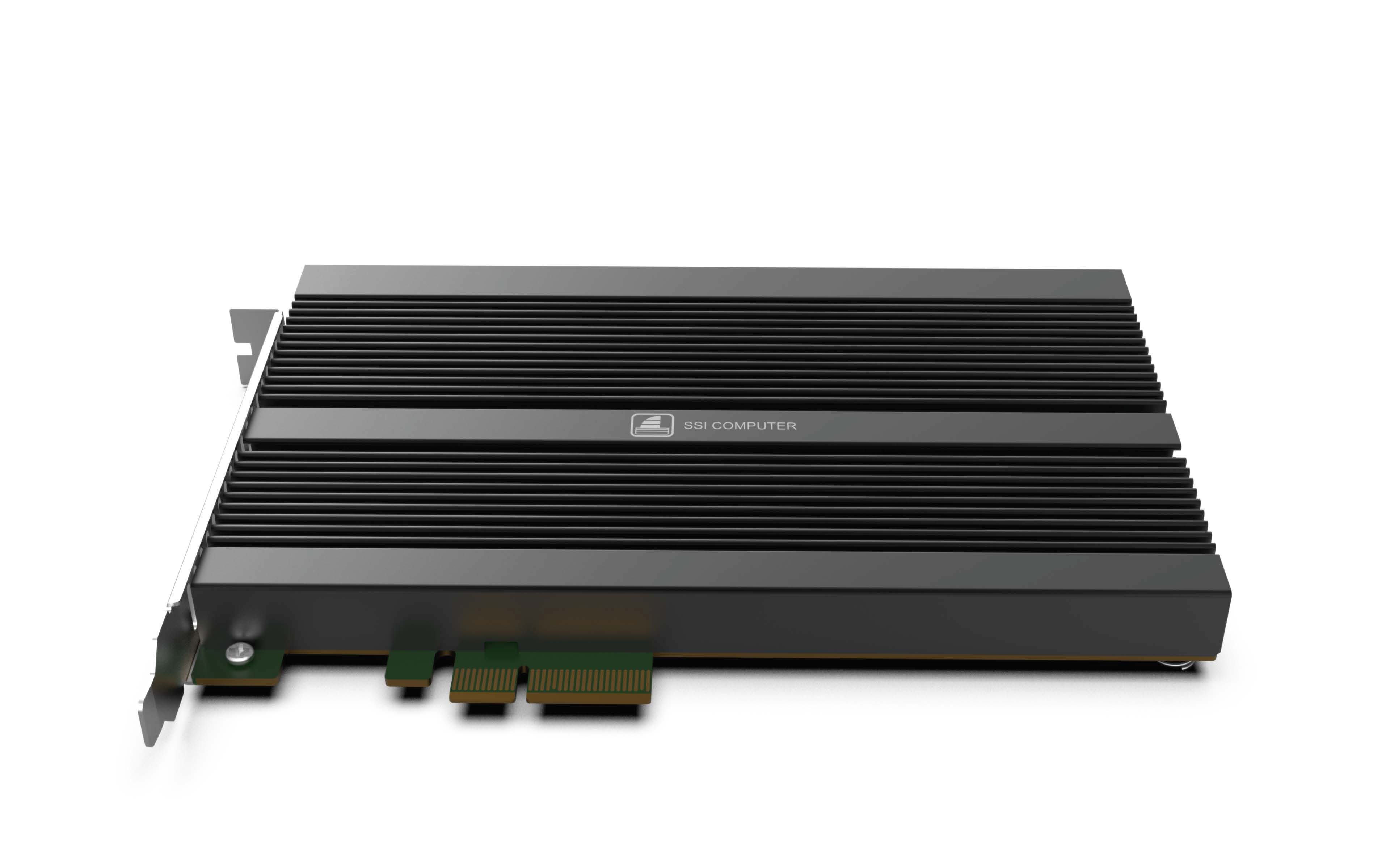

RGB 4 Bay M.2 NVMe SSD PCIex4 Add-on Card

Model No.

SI-1244PCIe RGB

Item

RGB 4 Bay M.2 NVMe SSD PCIex4 Add-on Card

Certifications

CE, FCC, RoHS(compliance)

Material

High-quality Aluminum

Dimensions

178.0 x 125.0 x 20.0 mm

Interfaces

1 x PCIe3.0 x4 lane port (Upstream)
4 x M.2 NVMe SSD M-Key Slots

LED

Dynamic RGB lights logo design

Optional

1 x Retail Color Box

OS Support

Mac OS / Windows

Environment

Operating Temperature: 5°C ~ 55°C
Operating Humidity: 20%RH ~ 80%RH
Storage Temperature: -20°C ~ 50°C
Storage Humidity: 20%RH ~ 80%RH

Features

．Motherboard PCIex4 channel to M.2 NVMe.
．PCIe Gen3.0 x4 supports 3200 MB/s to host.
．4 x M.2 NVMe PCIe3x2 SSD expansion slots.
．Build software, load 4 SSDs still to top speed.
．Be compatible with PC and Mac OS support.
．RGB light bar for added flair and style.
．Plug and play, automatically installs drivers.
．Support L0s/L1/L23/L3 power saving states.
．Fanless design, quiet & efficient convection.

Advantages

[Empty Slot Expansion]
Through the motherboard PCIe3.0x4 channel, it solves the problem of poor storage performance.
[Best Performance]
Fast and stable interface, space-saving M.2 PCIe SSD with four-slot configuration.
[Optimized Mechanism]
Fanless heat dissipation design, equipped with metal baffles to increase firmness.

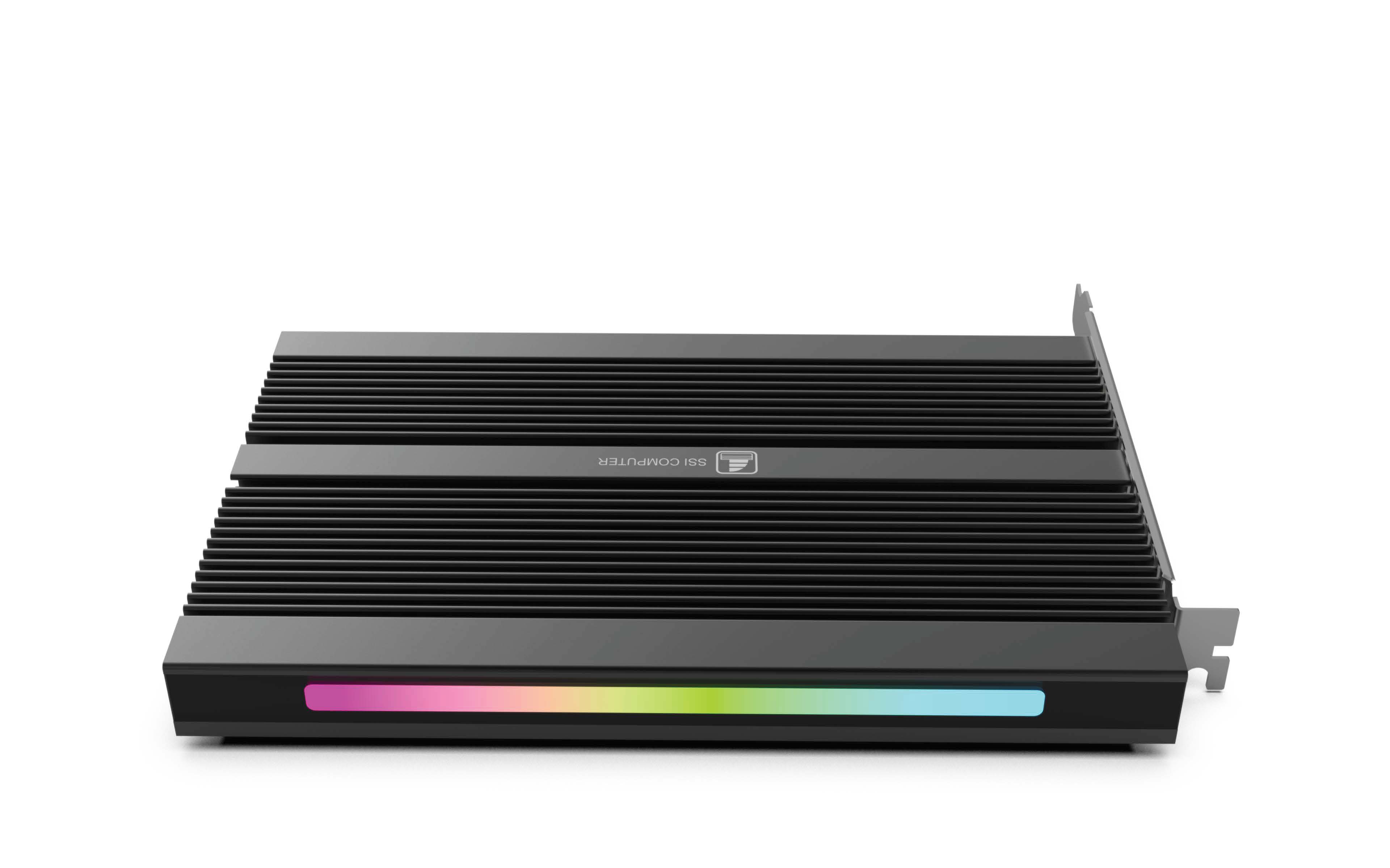

【RGB Lighting】
Multi-Color Glowing RGB lights and power indicator & activity indicator for hard disk reading.
[Powerful Compatibility]
Equipped with special IC design, which supports both MAC OS / Windows systems.
[Safe heat dissipation]
Aluminum alloy material, fin design, stable heat dissipation without a fan.
[Easy Installation]
The steps are simple and quick to assemble, plug & play and driverless.

Usage Scenario

[Enterprise/personal application]
System-side x4 PCIe3.0 x4 channel to M-key M2 NVMe adapter card.
[3D Rendering]
Enlarge storage capacity and create a high-performance 3D rendering working environment.
[Entertainment racing]
There is no conflict with high-speed graphics cards, and the speed and stability won’t lost.

End-User

Enterprise engineering, Audio-visual workers, 3D Draftsmen, E-sports players, Business people, General consumers
