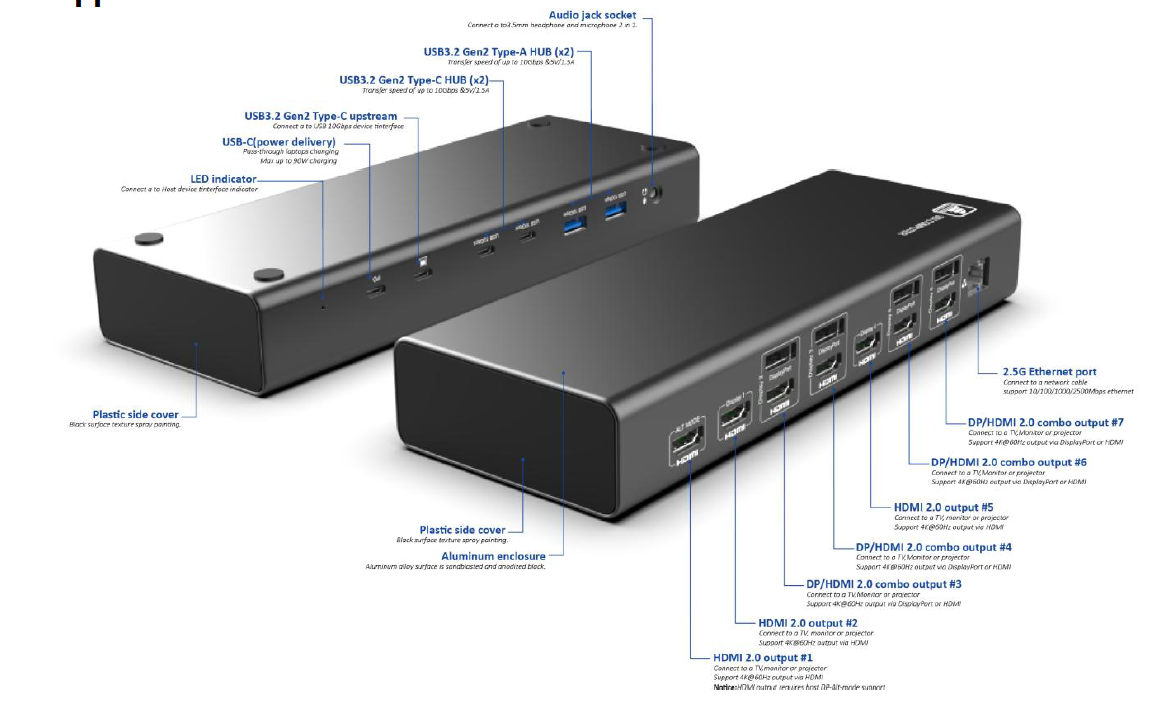

Features
|
A.High quality aluminum body for optimized heat dissipation.
B.Dimensions: 240.0 x 90.0 x 37.0 mm. (not including pad-foot)
C.Function LED connect power on/off indicator.
D.Be compatible with Thunderbolt3/4, USB-C and USB type A 10Gbps host. Be compatible with MacBook (including intel and M1/M2/M4 based mac), thunderbolt3/4.
E.Supports simultaneous output on 7 extended monitors via HDMI2.0 up to 4K 3840x2160@60Hz in windows, There are four sets of DP/HDMI Combo ports, which support a combined output of 4x DisplayPort + 4x HDMI，and supports macOS (including M1, M2, M4 series), Linux, and Chrome OS.
F.Support 2 x USB type-C and 2x USB type-A HUB (5V/1.5A), Transfer speed up to10Gpbs, Be compatible with USB 5Gbps and 480Mbps.
G.The two USB Type - A 10Gbps hubs support daisy - chaining, allowing the connection to one sets of 9938 devices. The output can be extended to up to 12 monitors via HDMI 2.0 at a resolution of up to 4K (3840x2160) @60Hz under the Windows system.
H.Supports hardware Video decoder: H.265, H.264, M-JPEG, Real Video.
Support ethernet 10M/100M/1000M/2500Mbps transceiver.(Support Realtek Dragon Intelligent Bandwidth Control Software). (for more information, check out the Realtek Dragon Smart Bandwidth Control Software User Guide) Realtek Dragon Intelligent Bandwidth Control Software User Guide (manuals.plus)
I.Support speaker-headphone and microphone ports.
J.Powered via USB-C PD and supports PD3.0 bypass charging for laptops up to 90W. Remarks: the use of a 100-watt PD power supply is highly recommended for optimal charging performance of the laptop. The cable is required to use the one that has passed the e-mark certification.
|
