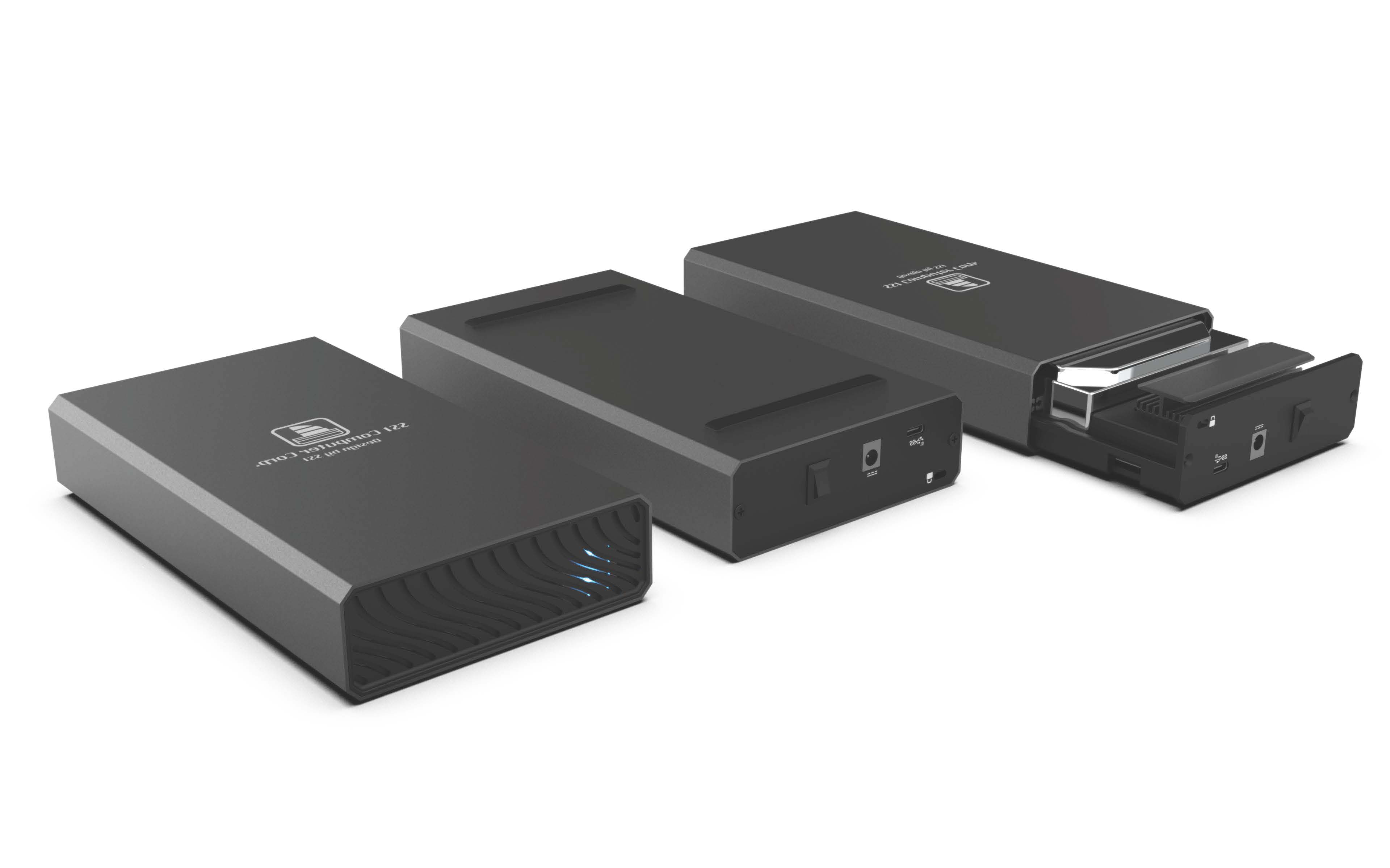

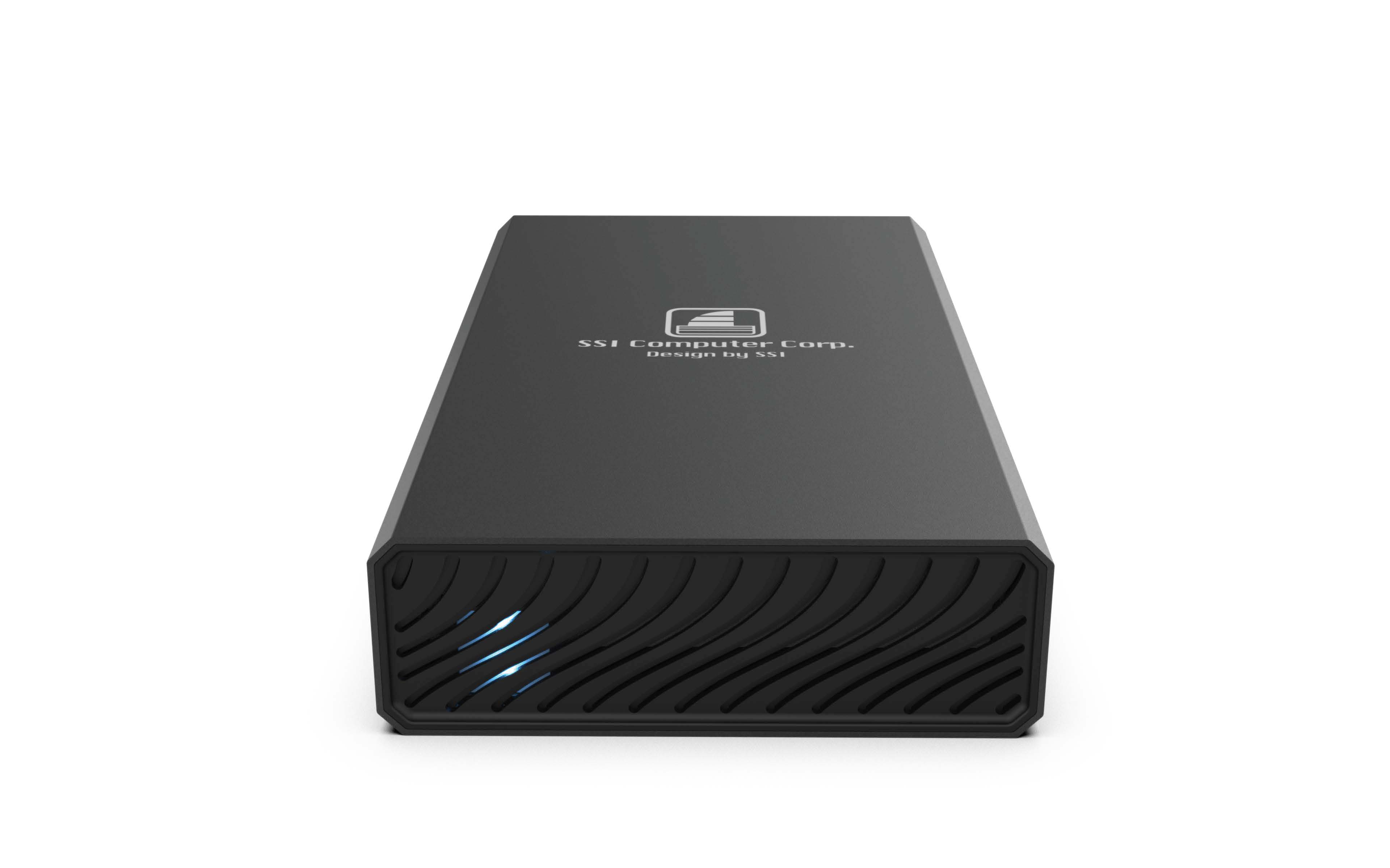

Multi Hard Drive Enclosure

Model:SI-7136US31C
.Supports M.2 NVMe, SATA HDD/SSD.
.USB3.2 USB-C supports 10G to host.
.Compatible with USB3.2 and USB 2.0.
.Applicable 2230/2242/2260/2280 SSD.
.Plastic bracket, reduce the heaviness.
.Plug and play, Hot-swap, Bus-powered.
.Tool-free, easy to install SSD without tool.
.Functional LED activity status indicator.
Contact

Model No.

SI-7136US31C

Item

Multi-Enclosure, USB 3.2 to SATA HDD/SSDM.2 NVMe

Certifications

CE, FCC, RoHS

Material

High-quality Aluminum
High-strength ABS+PC plastic

Dimensions

242.25 x 132.5 x 46.5mm

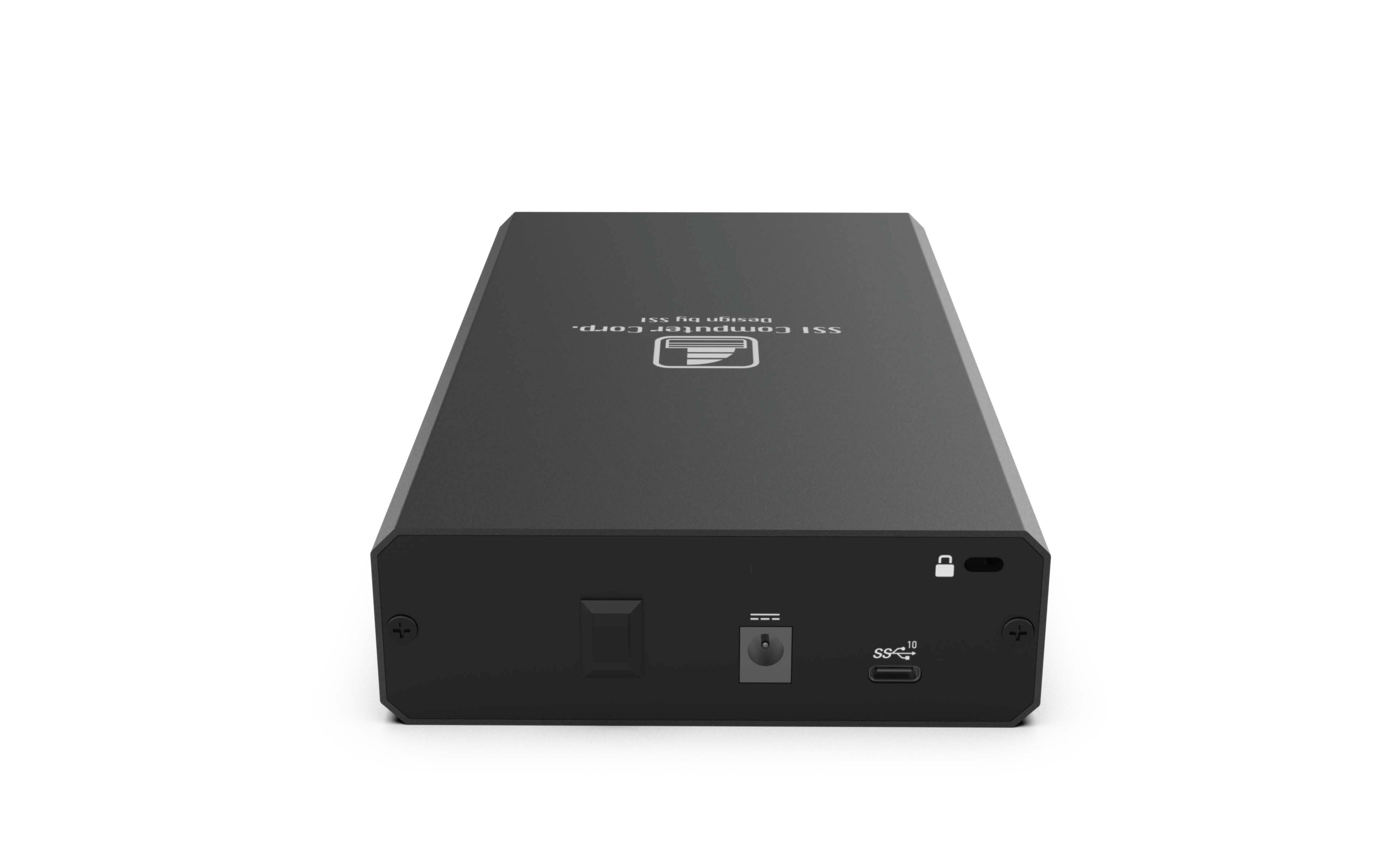

Interfaces

1 x M-Key M.2 NVMe Slot
1 x
3.5” SATA SSD/HDD Slot
1 x USB3.2 10G USB -C Port
1 x DC-Jack Socket

Button

1 x Power switch button

LED

1 x Functional & power LED Indicator

Accessories

1 x External Power Adapter (12V/3A)

Optional

1 x Plastic mounting bracket
1 x USB3.2 10G USB-C/C Cable
1 x External power adapter

OS Support

Mac OS / Windows

Environment

Operating Temperature: 5°C ~ 55°C
Operating Humidity: 20%RH ~ 80%RH
Storage Temperature: -20°C ~ 50°C
Storage Humidity: 20%RH ~ 80%RH

Features

Supports 1 x 3.5-inch SATA HDD/SDD.
Supports 1x M.2 NVMe to USB3.2 10G.
Supports M.2 PCIe NVME SSD heat sink.
USB3.2 USB-C supports 10Gbps to host.
NVMe SSD of the hard disk.

Advantages

[Speed Upgrade]
The extremely fast upgrade
supports 1 x 3.5inch SATA HDD /NVMe SSD data with 10G transmission
[Free Setting
]
The Silicone protection sleeve is specially designed for this case, which is convenient for Anti-collision and protection.
[Complete Functions]
High-quality equipment with tool-free, live plugging and plug-and-play.
[Extreme Heat Dissipation]
Support M.2 PCIe NVME SSD heat sink dissipation hard disk drive.
[LED Lighting]
The hard disk slots are all equipped with independent functional LED power and activity indicators.

Usage Scenario

[Humanism Design]
Main ON/OFF power switch, simple operation that can be combined with versatile products
[Professional use]

Improve work efficiency and expand the hard disk space of your notebook and PC.
[Video Media
]
Workstation for photographers which makes the system operating saving RAW files smoother.
[Design & Engineering]
Multiple functions all in one, with a high-performance design stabilize heat dissipation performance.
[Data Sharing
]
Flexible use of multiple hard drives that are plug-and-play, drive-free, and easy to replace and carry.

End-User

Personal Studio, Video Editor, Designer, Engineer, General Consumer
