Quad Monitor USB Dock (HDMI x2 + HDMI/DP x2)

Model No.

SI-9937U31PV

Item

Quad Monitor USB Dock (HDMI x2 + HDMI/DP x2)

Dimensions

90.0 x 180.0 x 37.0 mm

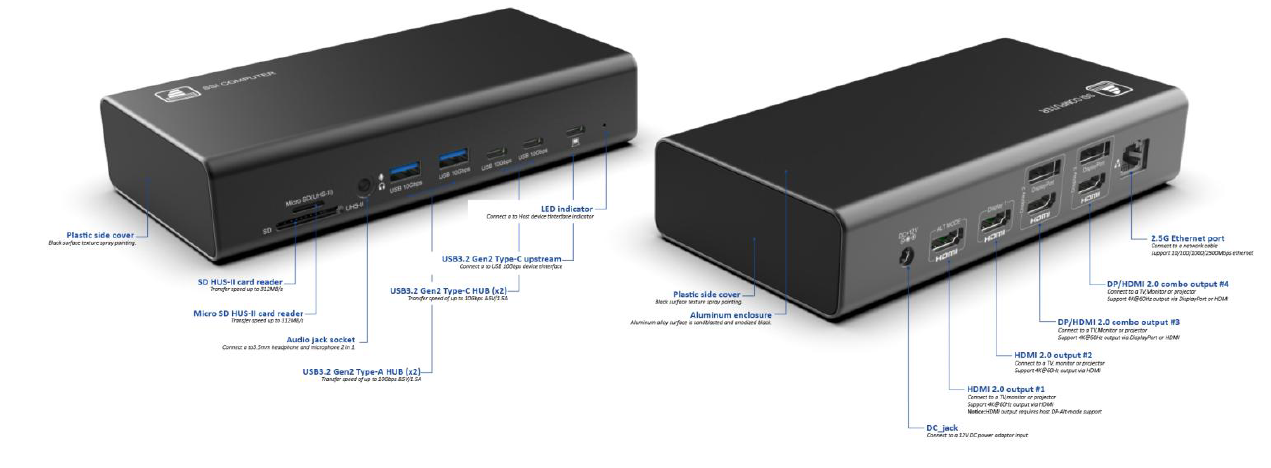

Interfaces

A.1x USB Type-C port upstream.
B.2x USB Type-C HUB ports.
C.2x USB Type-A HUB ports.
D.2 x HDMI Port.
E.2x DP/HDMI Combo ports.
F.1 x RJ45 Port.
G.1x SD and Micro SD Card slot.
H.1x 3.5 mm audio jack.
I.1x DC_Jack.

OS Support

Mac OS / Windows

Environment

- Operating Temperature: 5°C ~ 55°C
- Operating Humidity: 20%RH ~ 80%RH
- Storage Temperature: -20°C ~ 50°C
- Storage Humidity: 20%RH ~ 80%RH

Features

A.High quality aluminum body for optimized heat dissipation.
B.Dimensions: 180.0 x 90.0 x 37.0 mm. (not including pad-foot)
C.Function LED connect power on/off indicator.
D.Be compatible with Thunderbolt3/4, USB-C and USB type A 10Gbps host. Be compatible with MacBook (including intel and M1/M2/M4 based mac), thunderbolt3/4.
E.Supports simultaneous output on 4 extended monitors via HDMI2.0 up to 4K 3840x2160@60Hz in windows, There are two sets of DP/HDMI Combo ports, which support a combined output of 2x DisplayPort + 2x HDMI，and supports macOS (including M1, M2, M4 series), Linux, and Chrome OS.
F.Support 2 x USB type-C and 2x USB type-A HUB (5V/1.5A), Transfer speed up to10Gpbs, Be compatible with USB 5Gbps and 480Mbps.
G.The two USB Type - A 10Gbps hubs support daisy - chaining, allowing the connection to two sets of 9937 devices. The output can be extended to up to 12 monitors via HDMI 2.0 at a resolution of up to 4K (3840x2160) @60Hz under the Windows system.
H.Supports hardware Video decoder: H.265, H.264, M-JPEG, Real Video.
I.Support SD UHS-II Card Reader port, super speed up to 312MB/s. (Backward compatible older versions of SD).
J.Support micro-SD UHS-II Card Reader port, super speed up to 312MB/s. (Backward compatible older versions of micro-SD).

Support ethernet 10M/100M/1000M/2500Mbps transceiver.(Support Realtek Dragon Intelligent Bandwidth Control Software). (for more information, check out the Realtek Dragon Smart Bandwidth Control Software User Guide) Realtek Dragon Intelligent Bandwidth Control Software User Guide (manuals.plus)
K.Support speaker-headphone and microphone ports.
