SATA SSD/HDD to M.2 NVMe Duplicator Dock

Model No.

SI-7927US31C-D

Item

SATA SSD/HDD to M.2 NVMe Duplicator

Certifications

CE, FCC, RoHS(compliance)

Material

High-quality Aluminum
High-strength ABS+PC plastic

Dimensions

134.75 x 94.45 x 68.95 mm
112.5 x 38.0 x 13.0 (Clip)

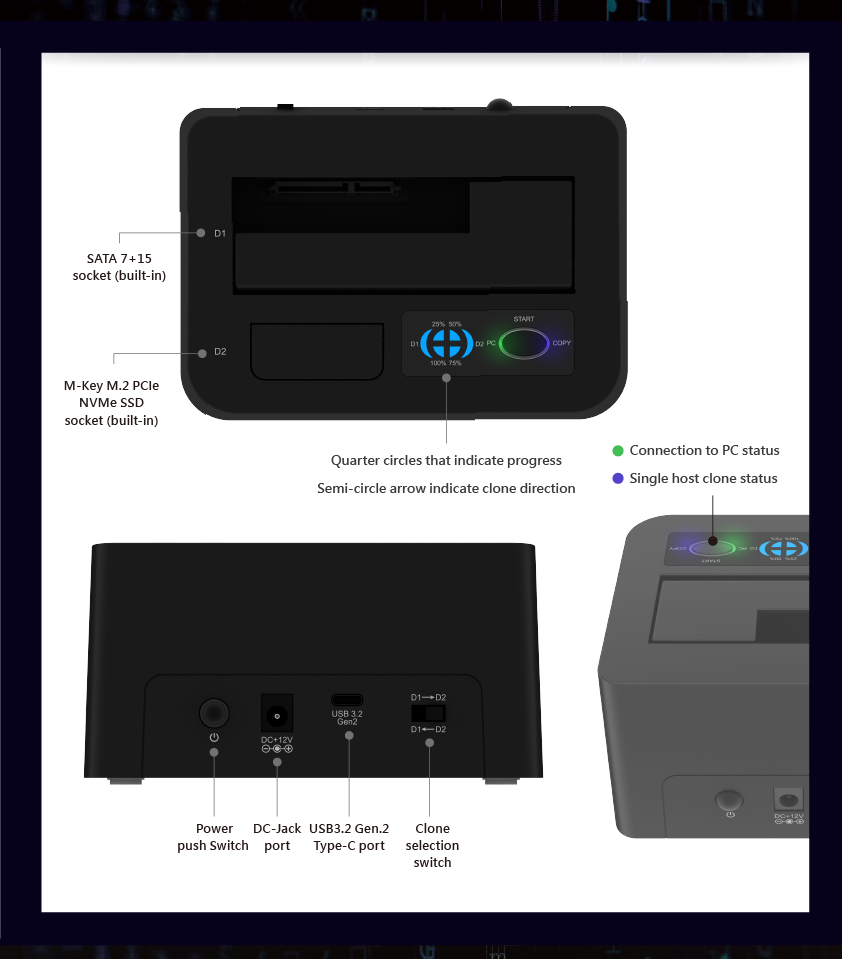

Interfaces

1 x SATA -III SSD/HDD Slot
1 x M.2 NVMe SSD Clip Slot
1 x USB3.2 10G USB-C Port
1 x DC-Jack Socket

LED

1 x Functional LED model indicator
 6 x Functional LED clone state indicator

Button

1 x Power switch button
1 x Mode option button
1 x Clone direction switch

Optional

1 x USB3.2 10G USB-C to C/A Cable
1 x External power adapter (12V/3A)
1 x Retail Color Box

OS Support

Mac OS / Windows

Environment

Operating Temperature: 5°C ~ 55°C
Operating Humidity: 20%RH ~ 80%RH
Storage Temperature: -20°C ~ 50°C
Storage Humidity: 20%RH ~ 80%RH

Features

．Independent M.2 PCIe/SATA two-way clone.
．Support PC Mode & Clone mode switchable.
．Applicable with M.2PCIe and SATA HDD/SSD.
．Connect USB3.2 -C supports 10Gbps to Host.
．Backward compatible with USB3.2 & USB2.0.
．Compatible M.2 2242/2260/2280/2230 SSD.
．Supports M.2 PCIe 10G & SATA 6G to host.
．Functional LED power & Activity indicators.
．Tool-Free, quickly installs SSD without tools.
．Plug and Play, automatically installs drivers.
．Hot-Swap, removing the driver at any time.
．World patent, use the clips to switch SSDs.

Advantages

[Multiple hard drives]
Exclusively available both M.2 NVMe and SATA SSD/HDD duplicator.
[Powerful function]
Supports reading, writing and copying of external hard disks, available for bidirectional copying and simultaneous reading of two disks.
[Fast upgrade]
High-speed USB3.2 USB-C connects to the host with 10G transmission.
[Innovative patent]
World patented M.2 NVMe reading clip, easy to replace hard disks.
[Simple operation steps]
Compatible to Mac / Windows system, tool-free installation, plug& play.
[Operation Tips]
Function indicator specially designed for users to keep following the operation status at any time.

Usage Scenario

[Double-matching]
Crease & create, with both functions of data cloning and transmission.
[Multi-task environment]
Mirror copy, bidirectional copy, no need to connect to host.
[Expanded capacity]
Idle hard disk is reborn, eco-friendly external expansion equipped.
[Personal storage]
Large-capacity storage solves the problem of no disposal data.

End-User

Industrial storage, Engineers, Film producers, Graphic designers, Video editors, Content creators, General consumers
