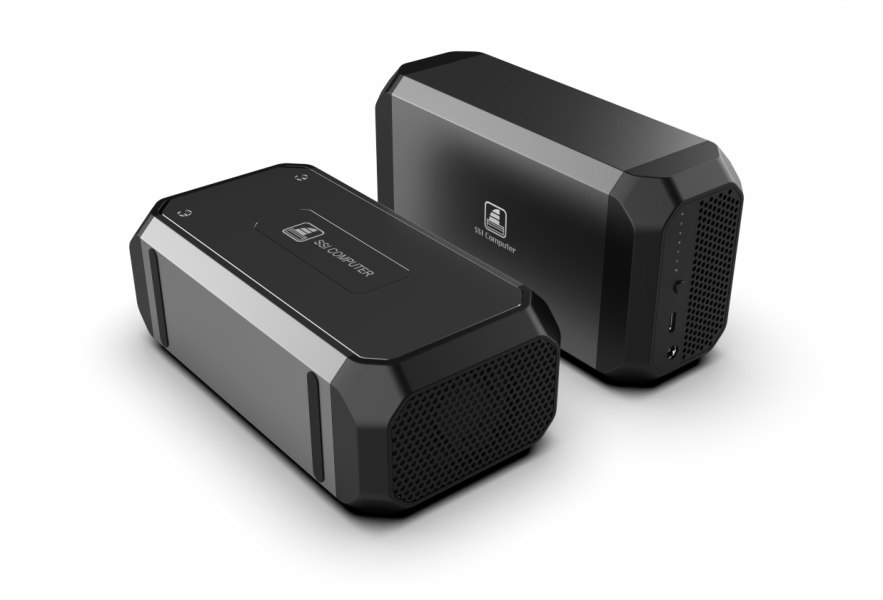

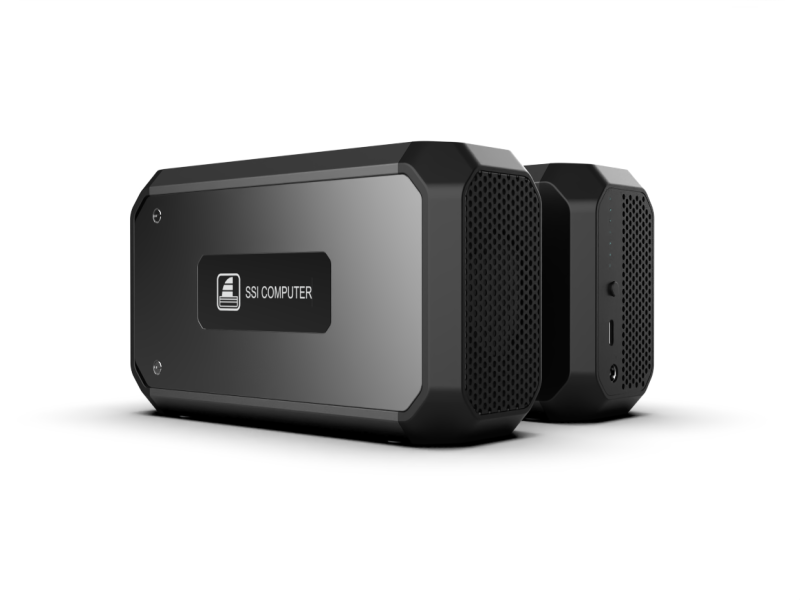

USB4 2 Bay M.2 Duplicator

Model No.

SI-9321USB4-D

Item

USB4 2 Bay M.2 Duplicator

Dimensions

170.0 x 89.0 x 60.0 mm

Interfaces

1x USB4 Type-C upstream.
2 x M-key Connector (Built-in)
1 x Clone start button
1 x DC_Jack

OS Support

Mac OS / Windows

Features

A.High quality Aluminum body for optimized heat dissipation.
B.Dimensions:170.0x89.0x60.0mm (not included foot pads).
C.Functional LED power and Activity indicator. (Power LED features a dual-color indicator: Blue light indicates PC mode (default/sleep state), while red light signals clone mode. M.2 SSD indicator light: M.2 SSD glows bule upon insertion, is off when empty, and flashes rapidly during R/W operations. Clone status indicator light: Blue flashes during clone, stays on when done.)
D.Supports USB4/Thunderbolt 40Gpbs to host, Compatible 2x PCIe Gen4x2 NVMe SSDs bridge controller to Host. backward compatible with USB 20Gbps and USB 10Gbps and USB5Gbps.
E.Supports 2 PCIe Gen4x2 NVMe SSD devices transfer speed each up to 1800MB/s. When a single NVMe Gen4x4 SSD is used for reading, the transfer speed can reach 3200MB/s.
F.Supports RAID with third - party software. In RAID0 mode, transfer speed up to 40Gbps.
G.Support Intelligent Copy Modes (Whole disk Copy). Support read error skip at the source drive. Support Independent Copy system operation without host computer.
H.Supports cloning mode M.2 NVMe source disk to target disk at transfer speed up to 1600 MB/s. It copies the entire drive sector by sector independently. Clone mode works with any file format between PCIe without host connection. In this mode, the offline clone's progress is shown via LED indicators.
I.Equipped with a 40x40x10mm fans for enhanced heat dissipation, ensuring stable performance.
J.Applicable SSD to sizes 2230/2242/ 2260/ 2280.
