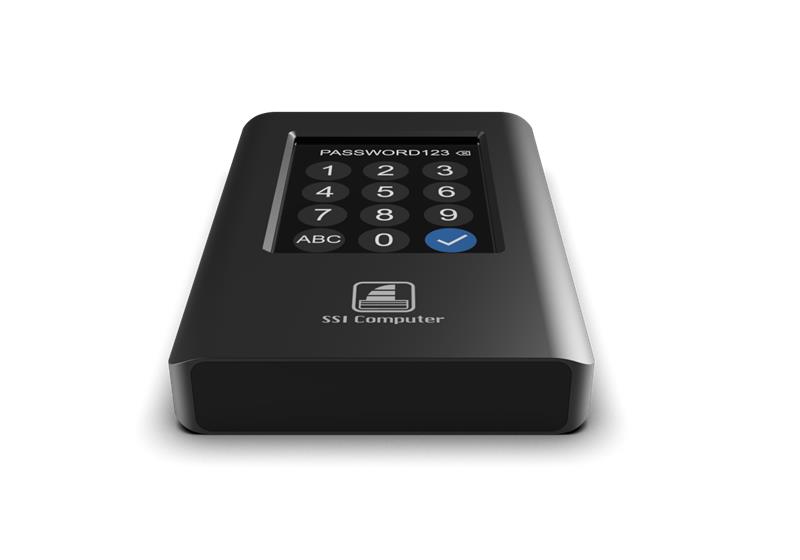

M.2 NVMe SSD Encrypted Enclosure

M.2 NVMe SSD Encrypted Enclosure

Model：SI-8214TUS31C
．USB3.2 Gen2x1 type-C supports 10Gbps to Host
．Backward compatible with USB 5Gbps and 480Mbps.
．Supports one pieces PCIe Gen3x2 NVMe M.2 SSD transfer speed each up to 10Gbps.
．Supports one pieces SATA Gen3 M.2 SSD transfer speed up to 6Gpbs.
．Featuring an intuitive color touch screen andmulti-password (Admin and User) option.
．Support for device Self-Encryption (SED): Opal defines device self-encryption based on AES-128 or AES-25
Contact Download

Model No.

SI-8214TUS31C

Item

PCIe Gen3x2/SATA Encrypted Enclosure

Certifications

CE, FCC, RoHS(compliance)

Material

High-quality Aluminum
High-strength ABS+PC plastic

Dimensions

110.00 x 72.00 x 16.00mm

Interfaces

1x USB-C upstream
1 x M-key Connector (Built-in)

Optional

1 x User manual
1 x Retail Color Box

OS Support

Mac OS / Windows

Environment

Operating Temperature: 5°C ~ 55°C
Operating Humidity: 20%RH ~ 80%RH
Storage Temperature: -20°C ~ 50°C
Storage Humidity: 20%RH ~ 80%RH

Features

．Functional unique Intuitive Touch Screen indicate.
．USB3.2 Gen2x1 type-C supports 10Gbps to Host, backward compatible with USB 5Gbps and 480Mbps.
．Supports one pieces PCIe Gen3x2 NVMe M.2 SSD transfer speed each up to 10Gbps. or one pieces SATA Gen3 M.2 SSD transfer speed up to 6Gpbs.
．Featuring an intuitive color touch screen and multi-password (Admin and User) option.
．Support for device Self-Encryption (SED): Opal defines device self-encryption based on AES-128 or AES-256.
．Support the use of SSD size only 2280 specification.
