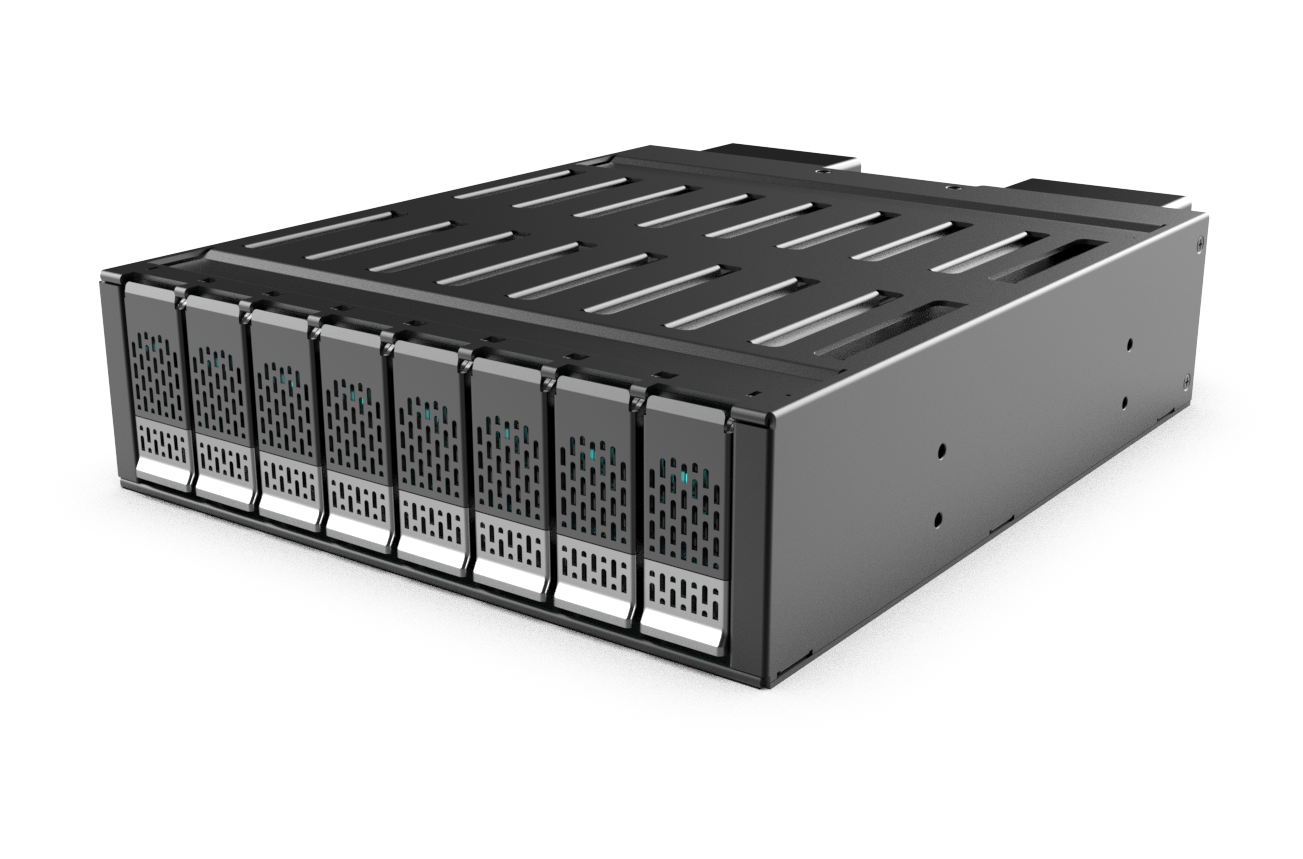

8 Bay M.2 NVMe SSD PCIe 4.0 Mobile Rack Enclosure

Model No.

 SI-5238U.2 mini

Item

8 Bay M.2 NVMe SSD PCIe 4.0 Mobile Rack Enclosure

Certifications

CE, FCC, RoHS(compliance)

Material

High-quality Aluminum

Dimensions

170.0 x 146.0 x 42.0 mm

Interfaces

8x OCulink (SFF-8612) Connector.
8 x M.2 NVMe M-Key socket (mobile rack built-in).
8x M.2 NVMe M-Key Socket (clip built-in)
2 x SATA 15pin power input.

OS Support

Mac OS / Windows

Environment

Operating Temperature: 5° ~ 55°C
Operating Humidity: 20% ~ 80%RH
Storage Temperature: -20° ~ 50°C
Storage Humidity: 20%~ 80%RH

Features

．Support x8 OCuLink SFF-8612 to M-Key Connector to connect downstream to each M.2 NVMe PCIe Gen4 SSDs driver.
．Supports PCle 4.0 protocol, each drive slot can transfer up to 64Gbps，can support up to x8 drive slots.
．Applicable SSD to sizes 2230/2242/ 2260/ 2280/22110.
．Compatible with triple mode HBA/RAID adapter.
．Available for 5.25” optical drive bays.
．Powering x8 M.2 SSDS through x2 SATA 15pin.
．Removable hard disk.

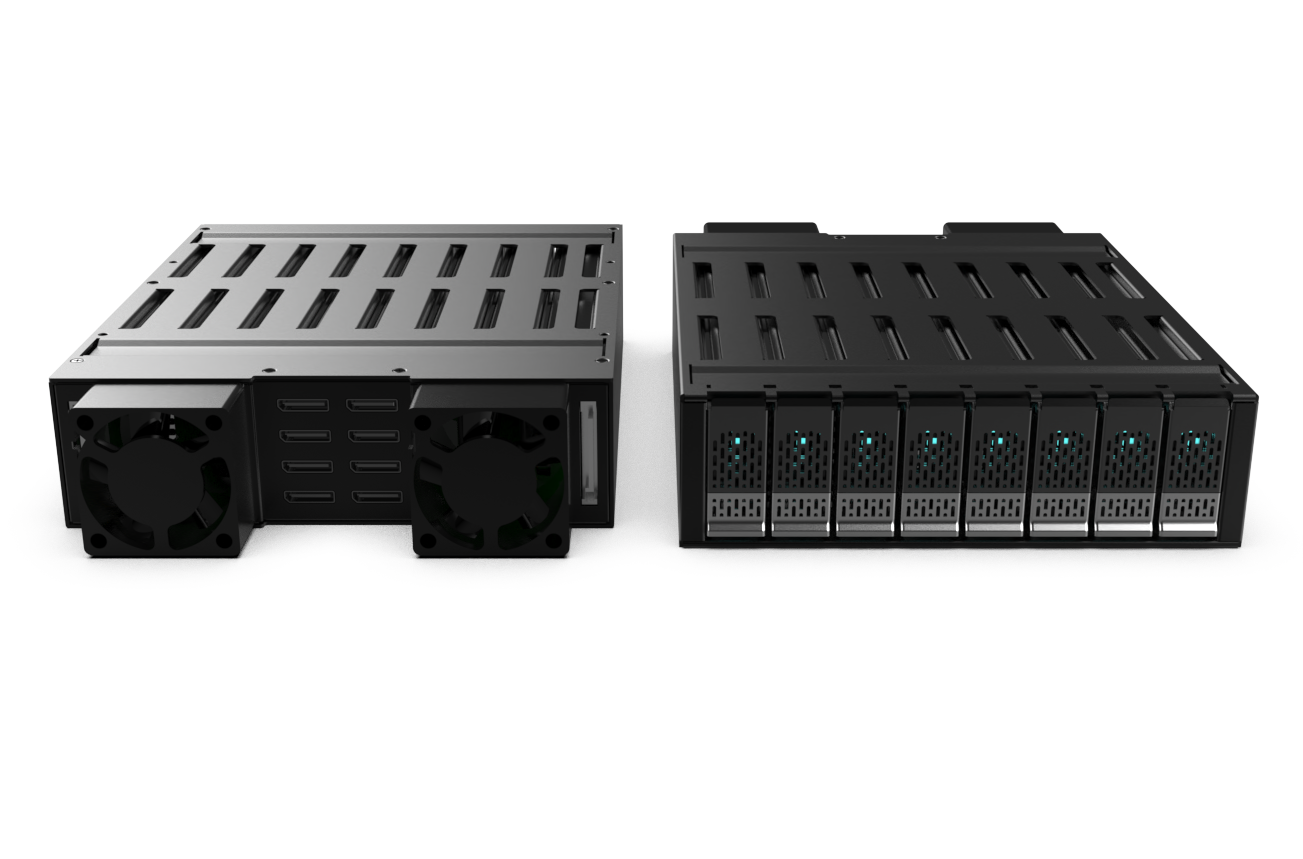

．Equipped with dual high-efficiency 40 x 20mm cooling fans.
．Support “Clip” hot-plug function, with PCIe 3.0 or PCIe 4.0 NVME HBA card or RAID card use, enjoy hot plug.
