3 Port DP/HDMI® Multi Monitor Adapter MST Hub with PD

Model No.

SI-4914U2HDPV

Item

3 Port DP/HDMI Multi Monitor Adapter MST Hub with PD, USB-C to DPx2+HDMIx1 Adapter

Certifications

CE, FCC, RoHS(compliance)

Material

High-quality Aluminum
High-strength ABS+PC plastic

Dimensions

68.0 x 61.0 x 15.0 mm

Interfaces

2 x DisplayPort 1.4 Ports
1 x HDMI1.4 4K@30Hz Port
1 x USB 2.0 USB-A Hub Port
1 x USB-C for PD3.0 Port
1 x USB-C Captive Cable

LED

1 x Functional LED power indicator

Optional

1 x Retail Color Box

OS Support

Mac OS / Windows

Environment

Operating Temperature: 5°C ~ 55°C
Operating Humidity: 20%RH ~ 80%RH
Storage Temperature: -20°C ~ 50°C
Storage Humidity: 20%RH ~ 80%RH

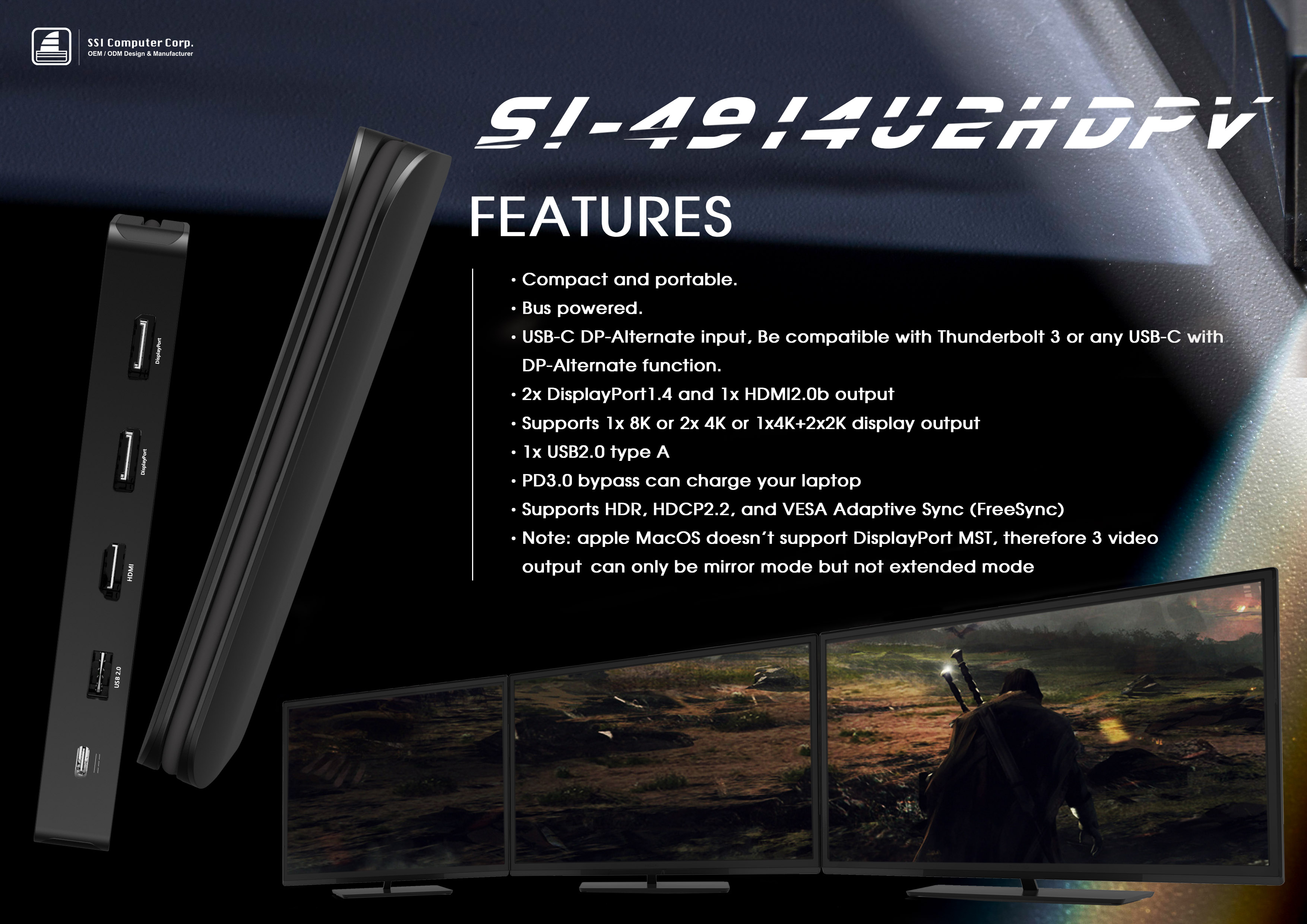

Features

．Support 2x DisplayPort1.4,1x HDMI1.4 output.
．Compatible with TB/USB-C with DP function.
．USB-C PD 3.0 bypass can charge your laptop.
．USB2.0 -A Hub port, provide external device.
．Bus-powered, does not need external power.
．Plug and play, automatically install drivers.
．Portable design for USB-C captive cables.

Advantages

[Efficient Conversion]
Combining HDMI1.4 and DisplayPort1.4 dual ports, single-screen DP 8K output.
[PD Expansion]
Hub with 1x USB2.0-A port and 1x USB-C with PD3.0 high-speed charging port
[Complete Functions]
USB cable power supply, hot-swappable, plug-and-play, portable accessories.
[Aluminum Matte]
The whole machine is made of aluminum alloy to optimize heat dissipation, with high-quality accessories for metal weight and matte appearance.
[Wired Device]
This machine is a pocket product with USB3.2-C high-quality external cable design.

Usage Scenario

[Video Editing]
Triple-screen simultaneous output, hubs & video transmission ports with various ports.
[Visual Design]
Output color-saturated & undistorted, proofreading & sharing large files with high efficiency.
[Medical Care]
Multi-screen testing instruments and multi-interface devices cross-using images for real-time output.
[Financial Securities]
Dual multi-screen high-definition picture quality display at the counter, the high-efficiency synchronous data transmission, audio and video.
[Home Entertainment]
Plug and play, specially designed for large screen sharing entertainment.

End-User

Business Management, Video Creation, Photography Editing, Visual Designers, UI/UX Designers, Product Design, Engineers, Architects, Medical Care, Financial Counters, Securities Analysis, Business Man, Teaching Sessions, Researchers, Bloggers, E-Sports, Family Sharing, General Consumer
