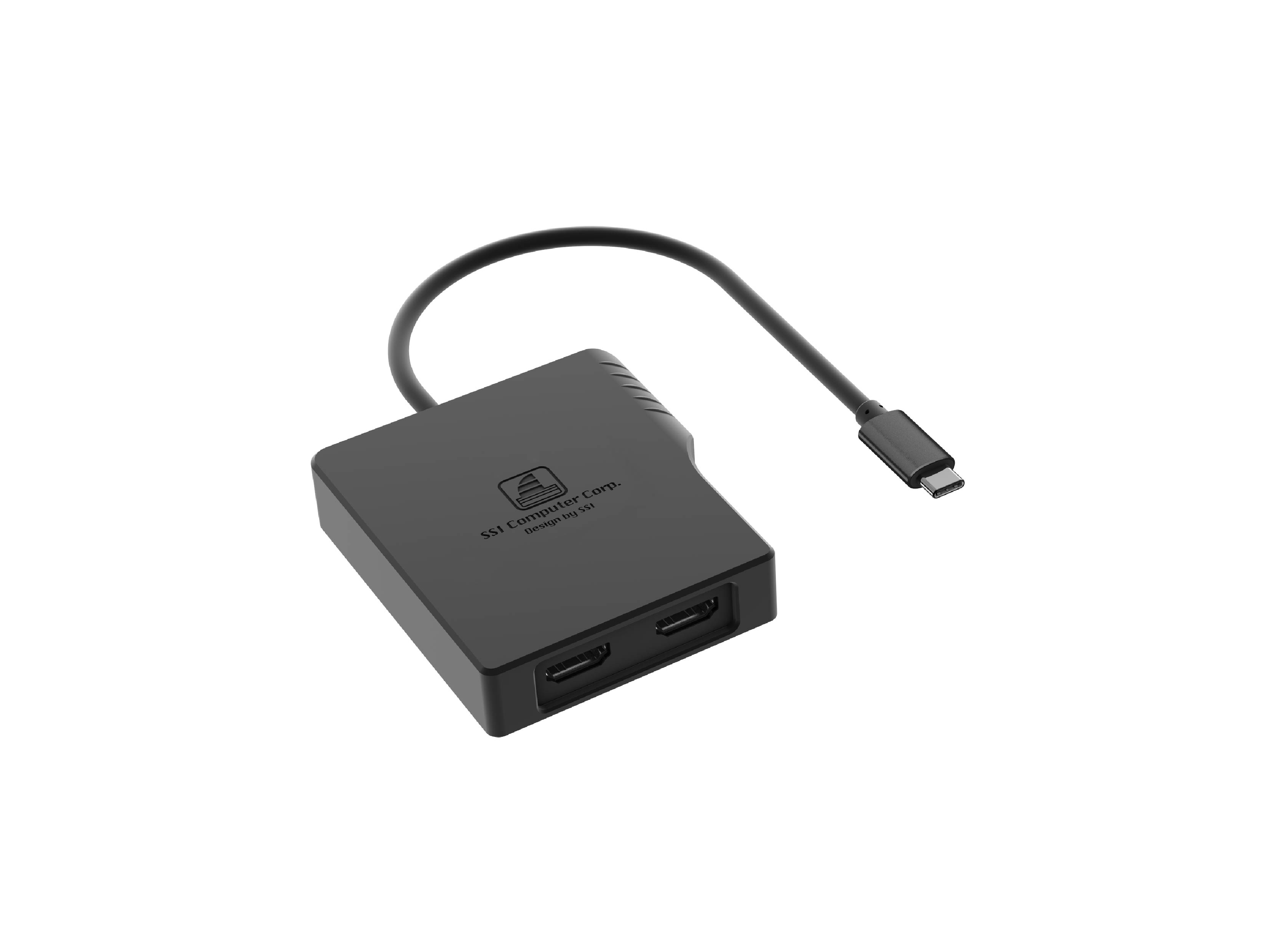

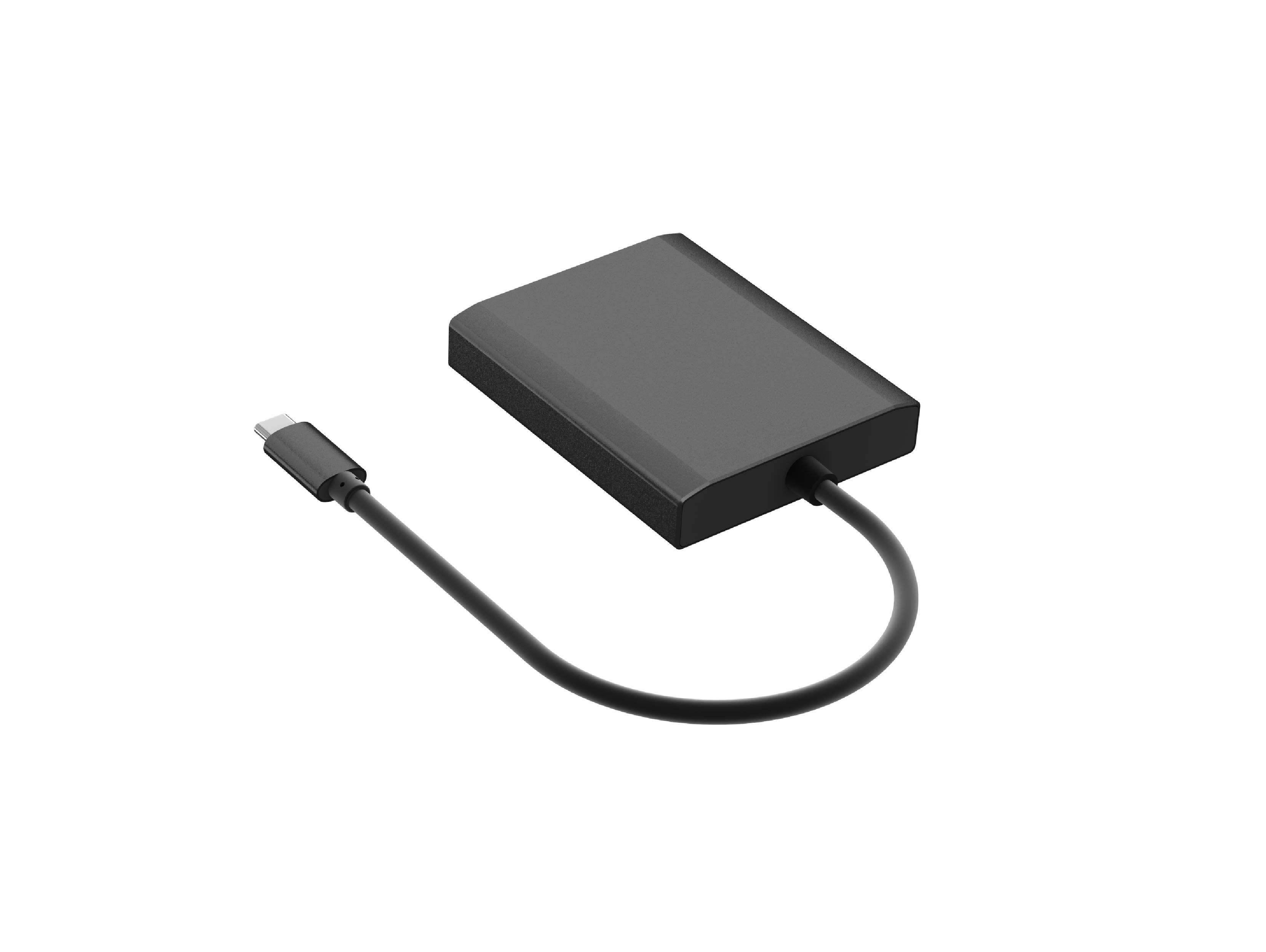

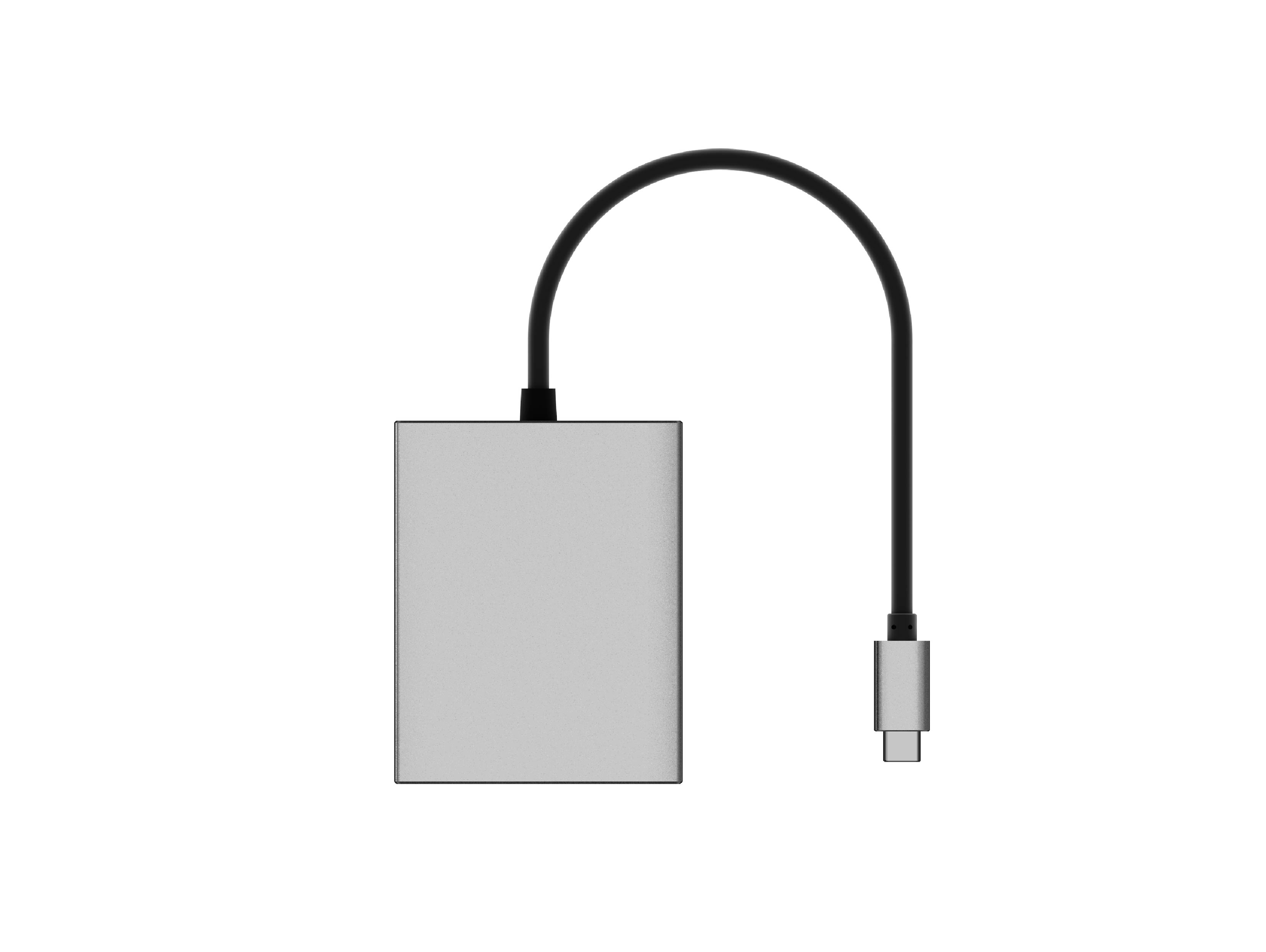

Dual HDMI® MST Adapter

Model No.

SI-4942HDMI

Item

Dual HDMI MST Adapter, USB-C to DPx2 Adapter

Certifications

CE, FCC, RoHS(compliance)

Material

High-quality Aluminum

Dimensions

80.0 x 63.5 x 14.5 mm

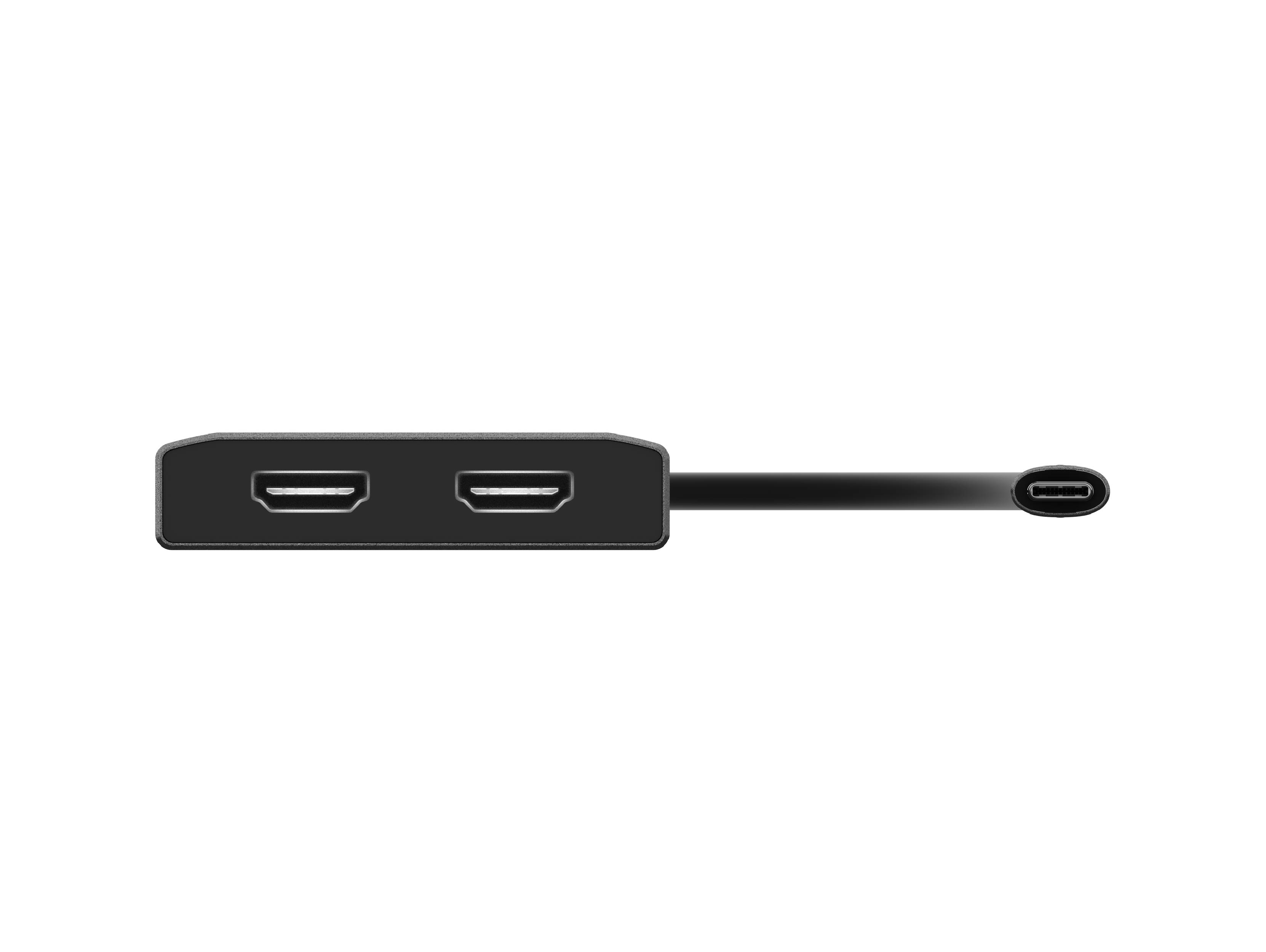

Interfaces

2 x HDMI1.4 4K@30Hz Ports
1 x USB-C Captive Cable

Optional

1 x Silicone protective (LOGO)
1 x Retail Color Box

OS Support

Mac OS / Windows

Environment

Operating Temperature: 5°C ~ 55°C
Operating Humidity: 20%RH ~ 80%RH
Storage Temperature: -20°C ~ 50°C
Storage Humidity: 20%RH ~ 80%RH

Features

．Support dual HDMI2.0 4k@30Hz video output.
．Supports multiple flow transmission MST mode.
．Bus-powered, does not need external power.
．Plug and Play, automatically install drivers.
．Silicone protective anti-collision fall damage.
．Portable design for USB -C captive cables.

Advantages

[Efficient Conversion]
Suitable for dual HDMI computer transfer to TV, projector and monitor output.
[MST System]
It supports Mac OSX and Windows multi-stream transmission MST mode.
[Complete Functions]
USB cable power supply, hot-swappable, plug-and-play, portable accessories.
[Aluminum Matte]
The whole machine is made of aluminum alloy to optimize heat dissipation, with high-quality accessories for metal weight and matte appearance.
[Wired Device]
This machine is a pocket product with a USB-C external cable all in one design.
[Silicone Protection]
With a soft and skin-friendly silicone protective cover, it is comfortable to hold and prevents product wear out.

Usage Scenario

[Video Editing]
HDMI dual-screen 4K output, equipped with video conversion equipment with various ports.
[Visual Design]
Output color-saturated and undistorted, while proofreading and sharing large files with high efficiency.
[Medical Care]
Multi-screen testing instruments and multi-interface devices cross-using images for real-time output.
[Financial securities]
Dual multi-screen high-definition picture quality display at the counter, the high-efficiency synchronous data transmission, audio and video.
[Home Entertainment]
USB plug and play, specially designed for watching movies, and large screen sharing entertainment.

End-User

Business Management, Video Creation, Photography Editing, Visual Designers, UI/UX Designers, Product Design, Engineers, Architects, Medical Care, Financial Counters, Securities Analysis, Business Man, Teaching Sessions, Researchers, Bloggers, E-Sports, Family Sharing, General Consumer
