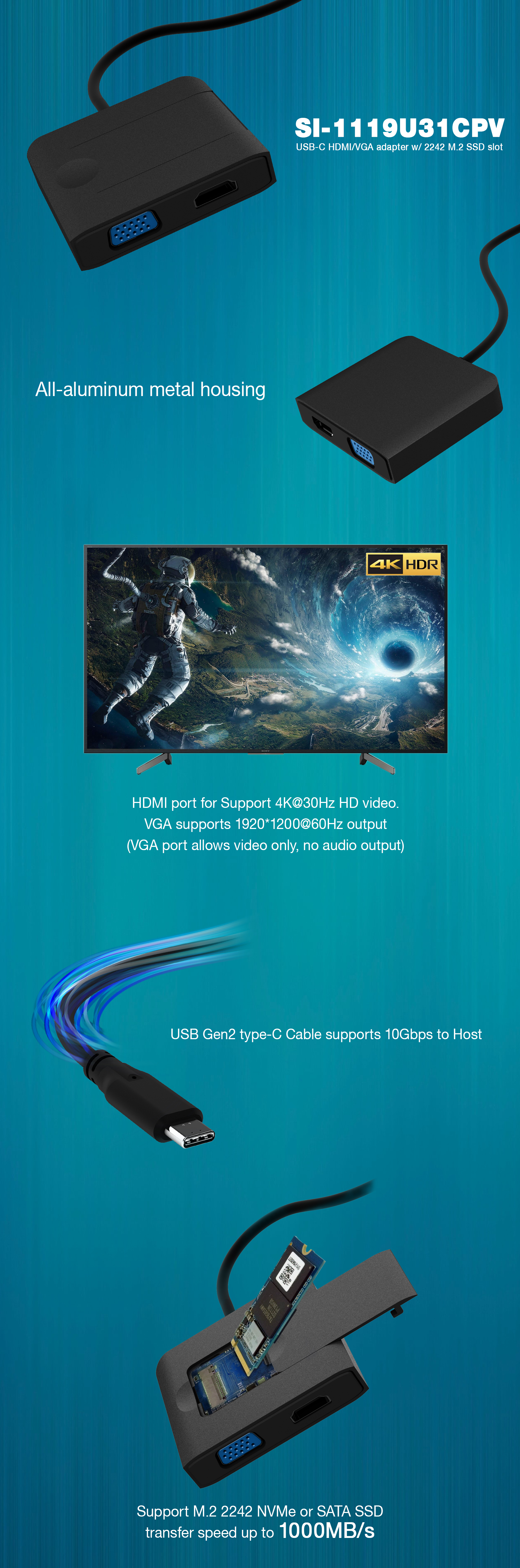

M.2 NVMe SSD Travel Dongle

Model No.

SI-1119U31PV

Item

M.2 NVMe SSD Travel Dongle, USB-C to VGA+HDMI Adapter

Certifications

CE, FCC, RoHS(compliance)

Material

High-quality Aluminum

Dimensions

68.0 x 61.0 x 15.0 mm

Interfaces

1 x HDMI1.4 4K@30Hz Port
1 x VGA 1080P@60Hz Port
1 x M.2 NVMe SSD (M-Key) Slot
1 x USB3.2 10G USB-C Captive Cable

Optional

1 x Retail Color Box

OS Support

Mac OS / Windows

Environment

Operating Temperature: 5°C ~ 55°C
Operating Humidity: 20%RH ~ 80%RH
Storage Temperature: -20°C ~ 50°C
Storage Humidity: 20%RH ~ 80%RH

Features

．USB3.2 to VGA/HDMI adapter with M.2 Slot.
．Suitable for M.2 NVMe SSD up to 1000MB/s.
．Applicable with M-key M.2 SSD to sizes 2242.
．Compatible with B+M Key M.2 SATA SSD 6G.
．USB3.2 -C to connect host speed up of 10G.
．Backward compatible with USB2.0/USB1.1.
．Compatible with TB/USB-C with DP function.
．Simultaneously display via HDMI & VGA port.
．Support VGA 1080P@60Hz/HDMI 4K@30Hz.
．Plug and Play, automatically installs drivers.
．Bus-powered, does not need external power.
．Portable design for USB3.2 -C captive cables.
．Light & compact size for traveling & carrying.
．Best tool for presentation and data sharing.

Advantages

[Innovative Product]
Portable equipment that combines HDMI/VGA dual video output and SSD storage function.
[Efficient Projection]
Suitable for computers connecting to TVs, projectors, various monitors with multi-function output.
[Decompression Accessories]
Light & compact size for traveling, easy to convert with your mobile phone or tablet without carrying a laptop.
[Speed Sharing]
Equipped with USB3.2 external cable, data transmission can easily reach 10Gbpswith zero burden.
[Dual-Screen Output]
The picture quality is delicate and full, HDMI 4K/VGA 1080p dual-screen synchronous output.
[Aluminum Fog Feeling]
The whole machine is made of aluminum alloy to optimize heat dissipation, with high-quality accessories for metal weight and fog surface appearance.
[Complete Functions]
Bus-power supply, SSD tool-free installation, hot-swappable, plug & play.
[Wired Device]
This machine is a pocket product with a USB3.2-C high-quality external cable all in one design.

Usage Scenario

[Video Editing]
Simultaneous dual-screen output, using M.2 SATA SSD to access files for immediate backup.
[Visual Design]
Output color saturated and undistorted, while proofreading and sharing large files with high efficiency.
[Construction Engineering]
3D modeling, a good helper for engineering, a multi-function machine to handle tedious work.
[Medical Care]
Multi-screen testing instruments and multi-interface devices cross using images for real-time output.
[Financial Securities]
Dual multi-screen high-definition picture quality display at the counter, high-efficiency synchronous transmission of data, audio and video.
[Professional Presentations]
Share large data and quickly connect to projection equipment, and present professional presentations.
[Teaching Institutions]
Without complicated data transfer steps, it is a portable pocket machine for projecting reports.
[Home Entertainment]
USB plug and play, specially designed for watching movies, large screen sharing entertainment.

End-User

Business Management, Video Creation, Photography Editing, Visual Designers, UI/UX Designers, Product Design, Engineers, Architects, Medical Care, Financial Counters, Securities Analysis, Business Man, Teaching Sessions, Researchers, Bloggers, E-Sports, Family Sharing, General Consumer
