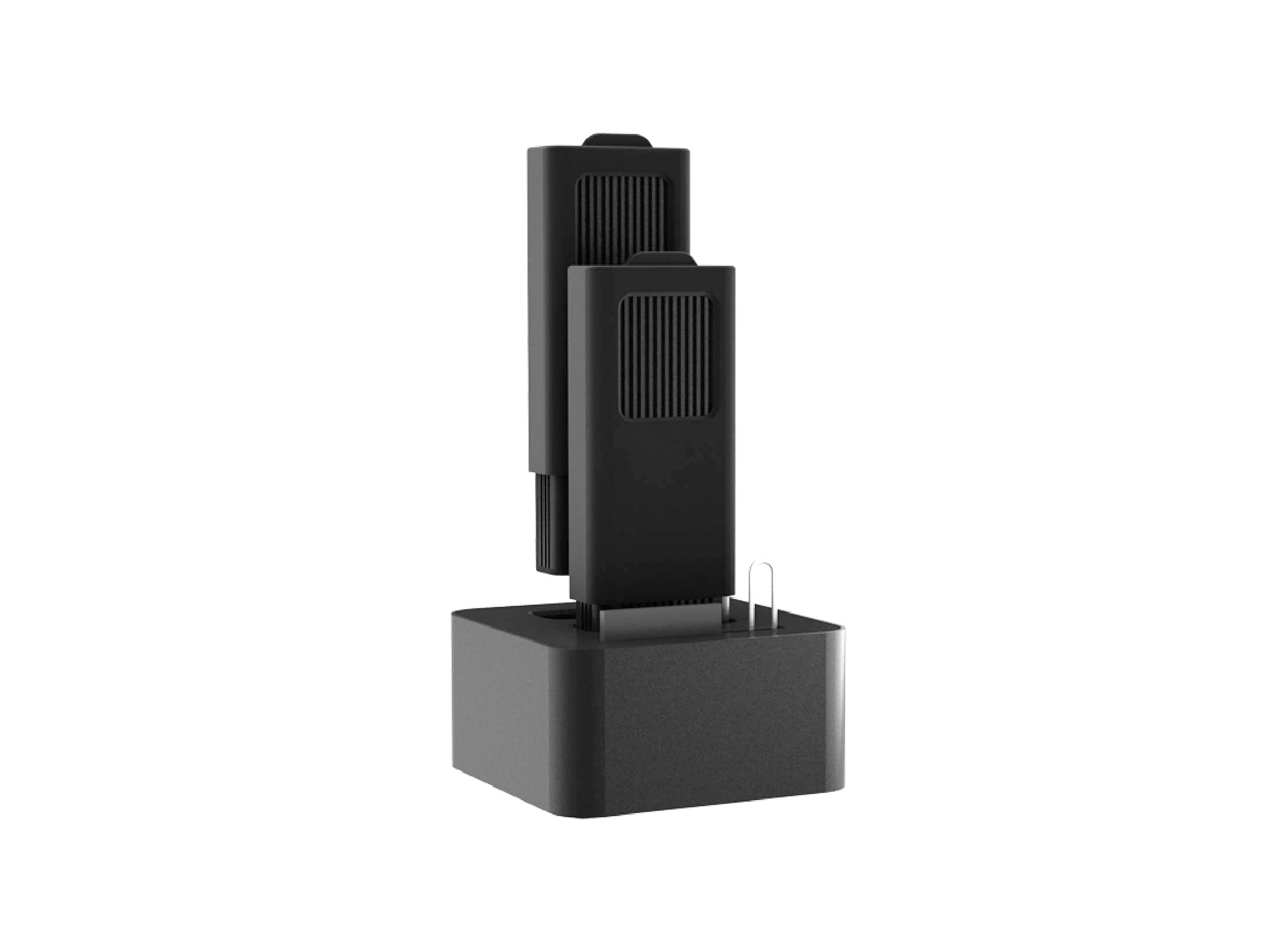

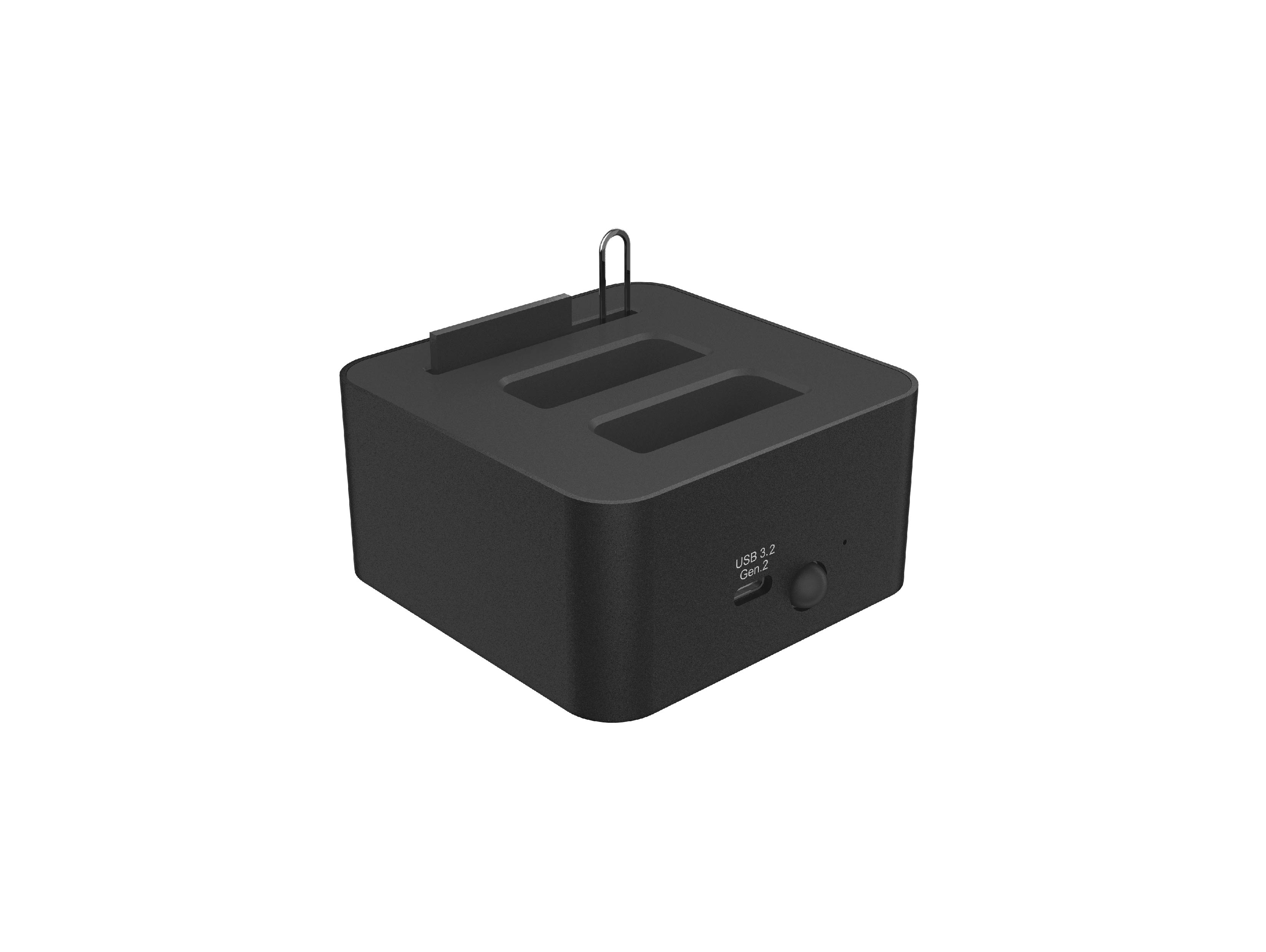

M.2 SSD Reader with Extra Storage Slot

Model：SI-8008US31C

．World patent, use the clips to switch SSDs.
．With storage slots for SSD & memory card.
．Supports M-key M.2 NVMe 10Gbps to host.
．Backward compatible with SATA-III 6Gbps.
．USB3.2 -C adapter support 10Gbps to host.
．Compatible M.2 NVMe 2242/2260/2280 size.
．The storage's designed as a clip idle place.
．Plug and play, hot-swappable, bus-powered.
．Silicone protector case, comfortable to hold.

Contact Download

Description
Specification

All OEM Docking Products >>

Model No.

SI-8008US31C

Item

M.2 SSD Reader with Extra Storage Slot (Clip+Dock)

Certifications

CE, FCC, RoHS(compliance)

Material

High-quality Aluminum
High-strength ABS+PC plastic

Dimensions

133.4 x 80.0 x 80.0 mm

Clip	112.5 x 38.0 x 13.0mm
Dock	80.0 x 80.0 x 40.0mm

Interfaces

Clip	1 x M.2 PCIe Gen3x2 Slot
Dock	2 x Clip Slots (The rear slot is only for storage) 1 x USB3.2 10G USB-C Upstream Port

LED

Clip	1 x Functional & power LED Indicator
Dock	1 x Functional & power LED Indicator

Optional

1 x USB3.2 10G USB-C to C/A Cable
1 x Clip (quantity optional)
1 x Silicone protector
1 x Retail Color Box

OS Support

Mac OS / Windows

Environment

Operating Temperature: 5°C ~ 55°C
Operating Humidity: 20%RH ~ 80%RH
Storage Temperature: -20°C ~ 50°C
Storage Humidity: 20%RH ~ 80%RH

Features

・Storage design as a Clip is idle.
・With a memory card storage slot.
・Support 1 M-key M.2 NVMe SSD 10Gbps.
・Backward compatible with SATA-III 6Gbps.
・Supports USB3.2 USB-C 10Gbps to Host.
・Plug & play, hot-swappable, Bus-powered.
・Soft silicone protector, comfortable to hold.

Advantages

[Minimal Storage]
There are also storage slots designed for an idle Clip and memory cards.
[Upgraded Touching]
With a silicone material protector makes it more comfortable to hold.
[Exclusive Innovation]
The innovative design has been patented by many countries, plug & play makes it easy to switch the device.
[Safe & Convenient]
No need to repeatedly install SSD to prevent the connecting fingers from being damaged due to touch.
[Comprehensive Heat Dissipation]
With heat sink and fin on the body. Its design combining plastic and Aluminum makes heat dissipation even faster and lighter to carry.
[Tool-free Installation]
The Snap-on design of the upper cover makes it easy to change the hard disk in seconds without any screw tools.

Usage Scenario

[Enterprise officer edition]
Use multiple cassettes switching between hard disks to efficiently back up a large amount of data.
[Gamers Edition]
Equipped with USB3.2 10G brings it ultra-fast transmission speed , giving you extraordinary gaming experience.
[Working off-site]
The replaceable clips design makes your SSD storage safe & sound.
[Personal use]
Multi-function device, no need to worry being damaged while unplugging, plug and play without any installation.
