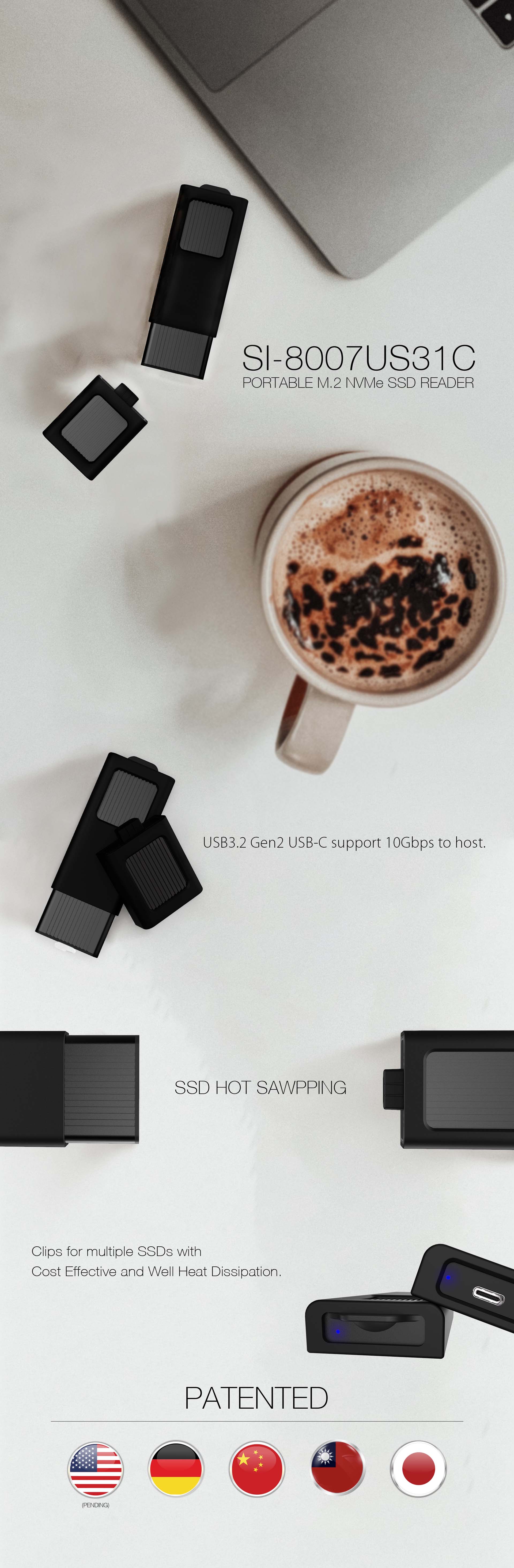

Portable M.2 NVMe SSD Reader

Model：SI-8007US31C

．World patent, use the clips to switch SSDs.
．Portable design as light and easy to carry.
．Supports M-key M.2 NVMe 10Gbps to host.
．Backward compatible with SATA Gen2/Gen1.
．USB3.2 -C adapter support 10Gbps to host.
．Compatible M.2 NVMe 2242/2260/2280 size.
．Plug and play, hot-swappable, bus-powered.
．Silicone protector case, comfortable to hold.

Contact Download

Description
Specification

With both convenience & quality practical device

Compact and neat design, According to the needs of different consumers can quickly replace the NVMe SSD or replace the entire set of "clips" to use the Dock, Consumers can do it with little cost.

Exclusive Portable Design for M.2 SSD Reader

These are compatible with all specs of M.2 NVMe or SATA SSD; with USB 3.2 10G connecting the host; supports Hot-swapping, plug & play, and optimized cooling mechanism with light design.

The Same Series

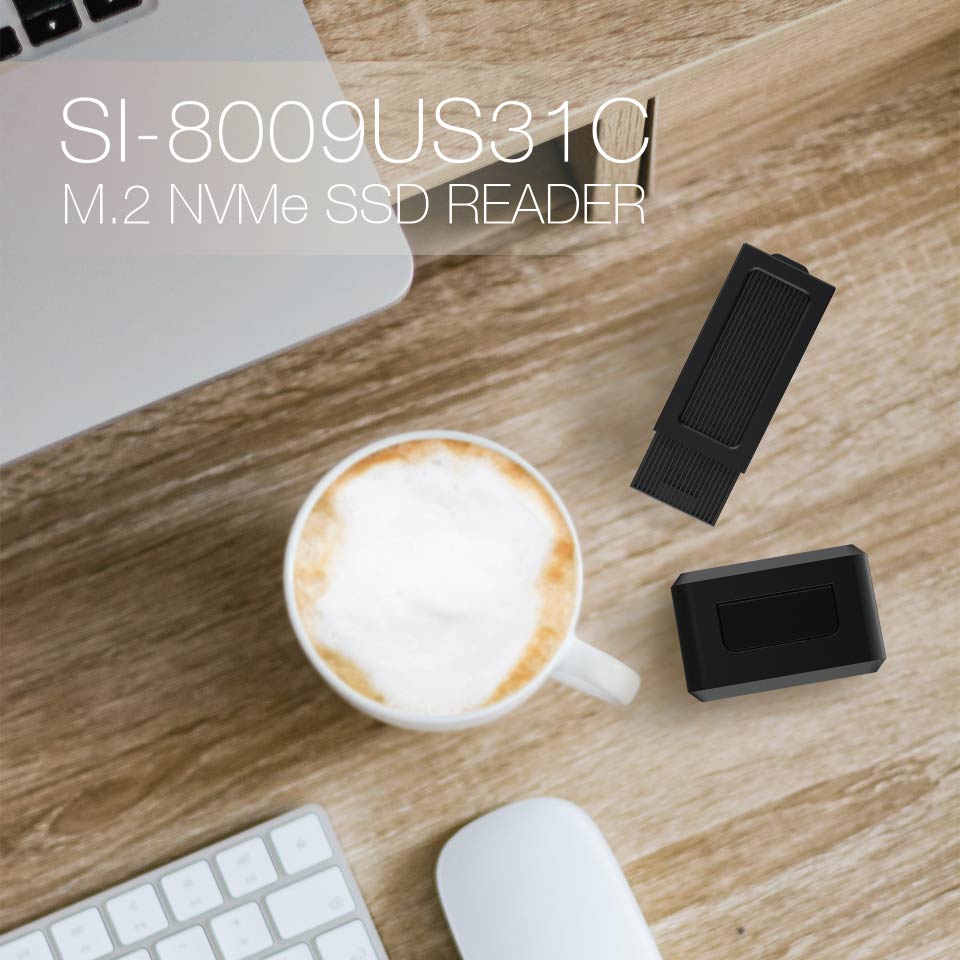

We also have M.2 SSD Reader with Extra Storage Slot (SI-8008US31C) and M.2 NVMe/SATA SSD Reader (SI-8009US31C) designs as optional for your choices.

You Can Match

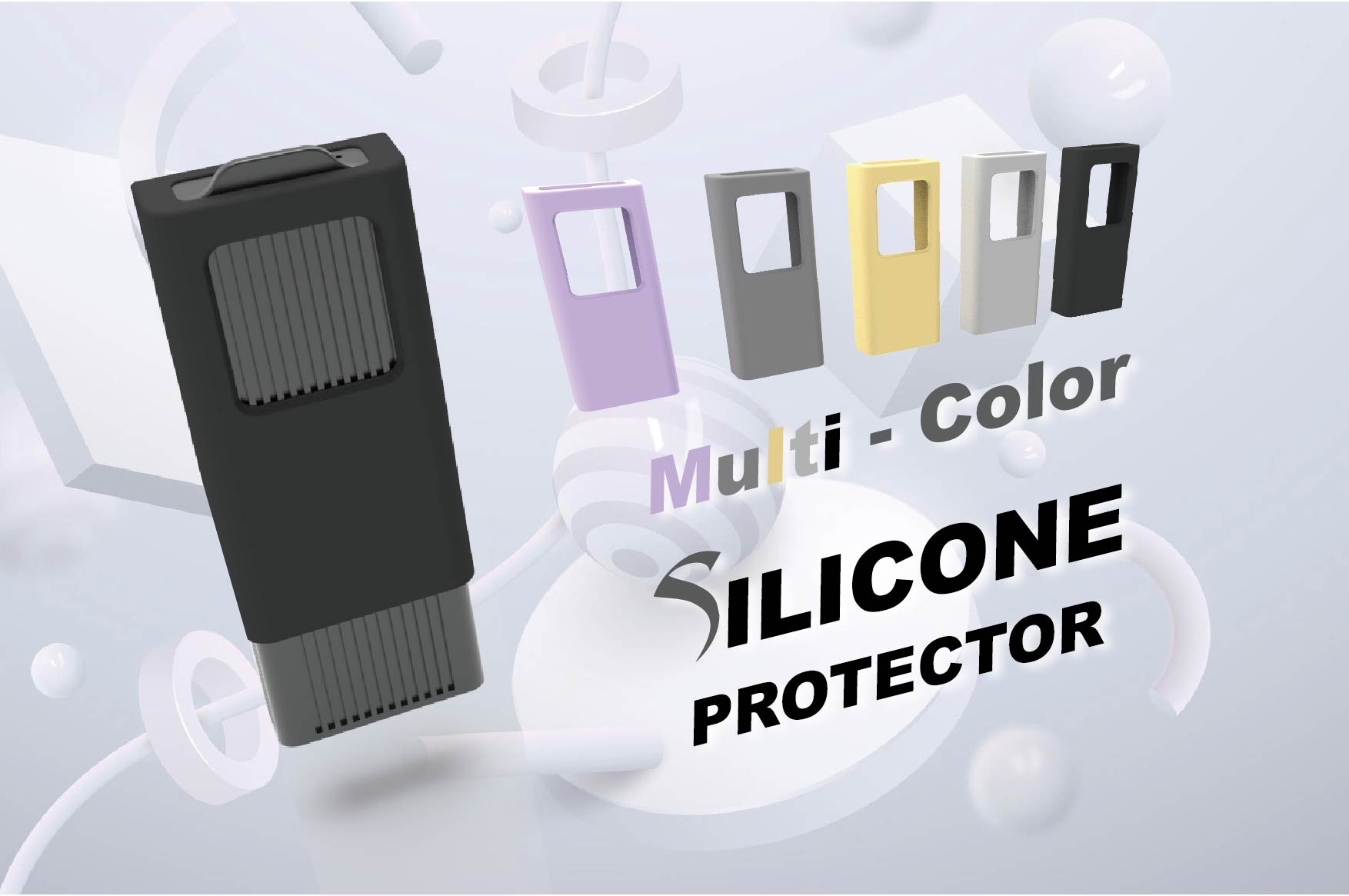

Clip Multi-Color Silicone Protective Cover for the SI-8000 Series,
The soft and skin-friendly material makes it more comfortable to hold.

All OEM Docking Products >>

Model No.

SI-8007US31C

Item

Portable M.2 NVMe SSD Reader

Certifications

CE, FCC, RoHS(compliance)

Material

High-quality Aluminum
High-strength ABS+PC plastic

Dimensions

158.3 x 38.0 x 13.0 mm

Clip	112.5 x 38.0 x 13.0mm
Dock	45.8 x 38.0 x 13.0mm

Interfaces

Clip	1 x M.2 PCIe Gen3x2 Slot
Dock	1 x Clip Socket 1 x USB3.2 10G USB-C upstream Port

LED

Clip	1 x Functional & power LED Indicator
Dock	1 x Functional & power LED Indicator

Optional

1 x USB3.2 10G USB-C to C/A Cable
1 x Clip (quantity optional)
1 x Silicone protector
1 x Retail Color Box

OS Support

Mac OS / Windows

Environment

Operating Temperature: 5°C ~ 55°C
Operating Humidity: 20%RH ~ 80%RH
Storage Temperature: -20°C ~ 50°C
Storage Humidity: 20%RH ~ 80%RH

Features

．Portable design as a pocket product makes it light and easy to carry.
・Supports M.2 NVMe SSD (1000MB/s) Card Reader.
．M.2 NVMe Supports 2242/2260/2280 (M-key) SSD.
・USB3.2 USB-C supports 10Gbps to host.
．Soft silicone protector makes it more comfortable to hold.
・Hot-swappable, undamaged when removing the device.
・Plug & play, automatically installs drivers.
・Bus powered, does not need external power.

Advantages

[Exclusive Innovation]
The innovative design has been patented by many countries, plug & play makes it easy to switch the device.
[Special Design]
The dock's light design makes it easy to carry and replace.
[Safe & Convenient]
No need to repeatedly install SSD to prevent the connecting fingers from being damaged due to touch.
[Upgraded Touching]
With a silicone material protector makes it more comfortable to hold.
[Comprehensive Heat Dissipation]
With heat sink and fin on the body. Its design combining plastic and Aluminum makes heat dissipation even faster and lighter to carry.
[Tool-free]
The Snap-on design of the upper cover makes it easy to change the hard disk in seconds without any screw tools.

Usage Scenario

[Enterprise officer edition]
Use multiple cassettes switching between hard disks to efficiently back up a large amount of data.
[Gamers Edition]
Equipped with USB3.2 10G brings it ultra-fast transmission speed, giving you extraordinary gaming experience.
[Working off-site]
The replaceable clips design makes your SSD storage safe & sound.
[Personal use]
Multi-function device, no need to worry being damaged while unplugging, plug and play without any installation.
