TBT3 KVM 擴充盒
TBT3 KVM 擴充盒
型號：SI-451TB3
．Supports DisplayPort 1.4 up to 8K@60Hz
．SD(UHS-II) transfer speed up to 270MB/s
．Audio output and mic input
．Be compatible with Thunderbolt™ 3 and legacy USB host
聯絡我們
．SD(UHS-II) transfer speed up to 270MB/s
．Audio output and mic input
．Be compatible with Thunderbolt™ 3 and legacy USB host

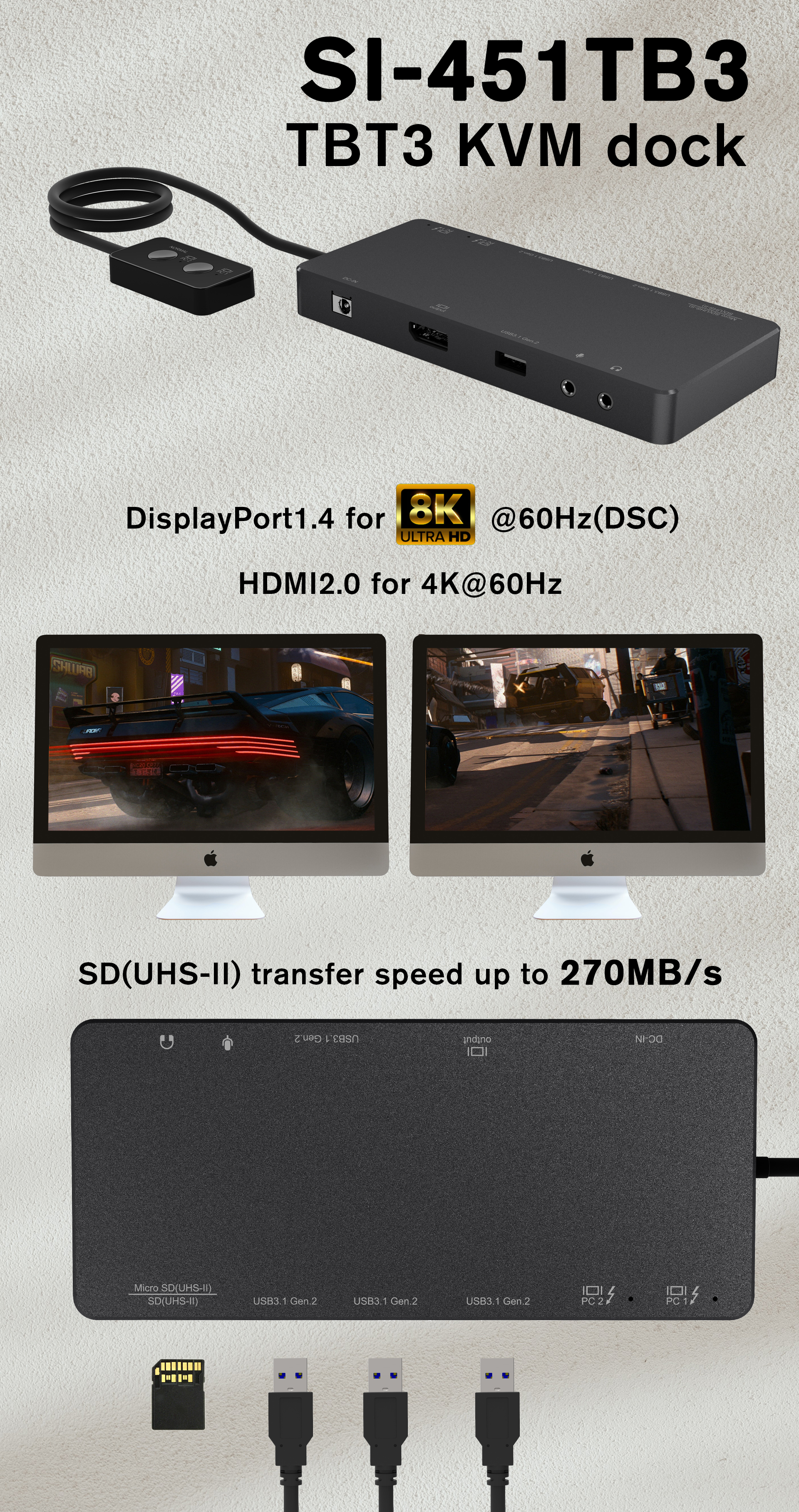

-210519.jpg)
| Model No. | SI-451TB3 |
| Certifications | CE、FCC、RoHS compliance |
| Interface | 2 x Thunderbolt™ 3 port 1 x DisplayPort1.4 1 x SD (UHS-II) 1 x MicroSD (UHS-II) 2 x USB3.1 Gen.2 type A 1 x USB3.1 Gen.2 type C 1 x USB3.0 type A 1 x Audio and Mic |
| Features | Supports 2 x Thunderbolt™ 3 speed up to 40Gbps There are 3 modes: Normal, KVM -PC1, KVM-PC2. Normal mode is like traditional TBT3 dock. KVM mode can connect 2x computers and switch between PC1 or PC2 Supports DisplayPort1.4 up to 8K@60Hz(DSC1.2 enable), 5K@60Hz output Backward compatible with USB-C computers DisplayPort supports HDR, HDCP2.2, and VESA Adaptive Sync (FreeSync) SD(UHS-II) transfer speed up to 270MB/s USB3.1 type A supports 10Gbps and BC1.2 5V@2.4A charge for iPAD, cell phone USB3.1 type C supports 10Gbps USB3.0 typeA support 5Gbps and BC1.2 5V@2.4A charge for iPAD, cell phone Audio output and mic input Supports PD3.0 60W charging Be compatible with Thunderbolt™ 3 and legacy USB host |
| OS support | Mac OS X 10.13 and future releases Windows 10 32 and 64 bit and future releases |
| Power & Accessories | 1 x Power Supply: External universal Power adaptor Thunderbolt™ 3 cable (optional) 1 x User manual 1 x Retail Color Box |
