SSD TBT3 擴充座
SSD TBT3 擴充座
型號:SI-414TB3
.Thunderbolt™ 3 speed up to 40Gbps
.DisplayPort supports single 5K@60Hz (5120x2880) UHD or dual 4K@60Hz
.Audio out and mic input
.Supports 1Gb Ethernet
聯絡我們
.DisplayPort supports single 5K@60Hz (5120x2880) UHD or dual 4K@60Hz
.Audio out and mic input
.Supports 1Gb Ethernet

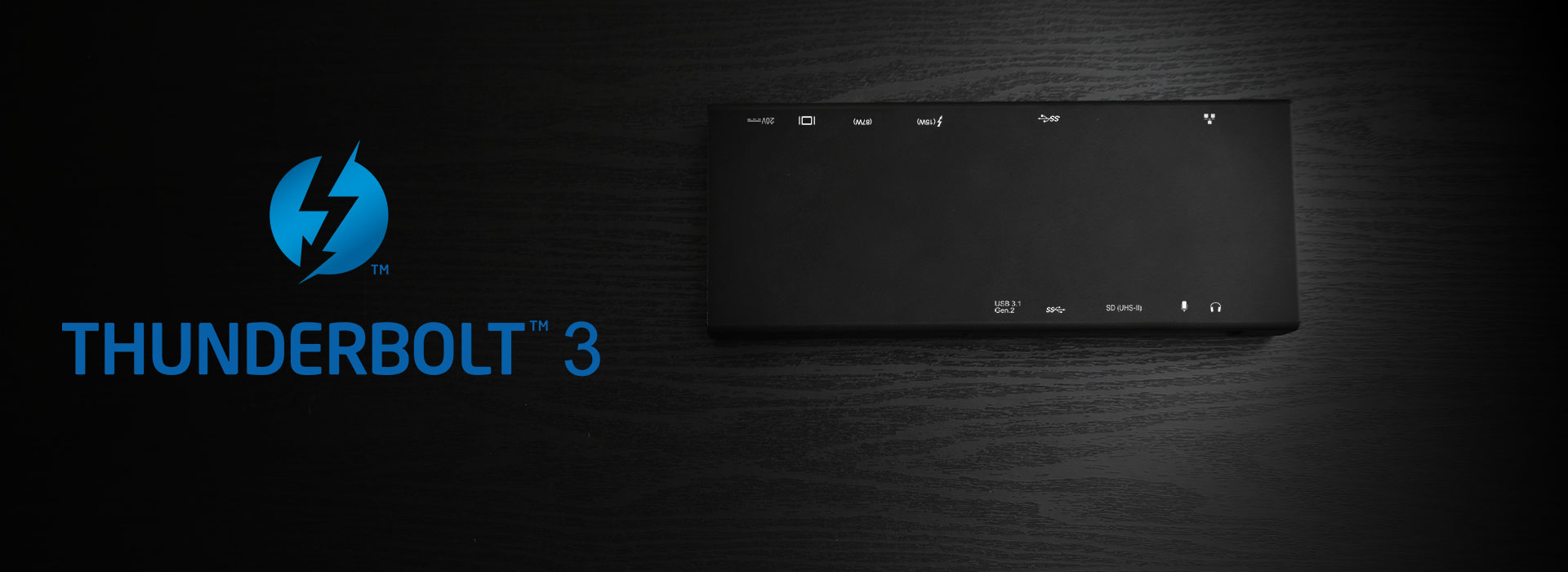

The Amazing Performance of Thunderbolt™ 3
Thunderbolt™ 3 offers a connection with state-of-the -art speed and versatility
Connect More Displays
Now, one compact port provides Thunderbolt™ 3 data transfer, support for two 4K@60Hz, and quick notebook charging with a single cable.
SD (UHS-II) transfer speed up to 270MB/s
It's the most advanced and versatile USB Type-C docking solution available
More Power to Work
Audio out and mic input

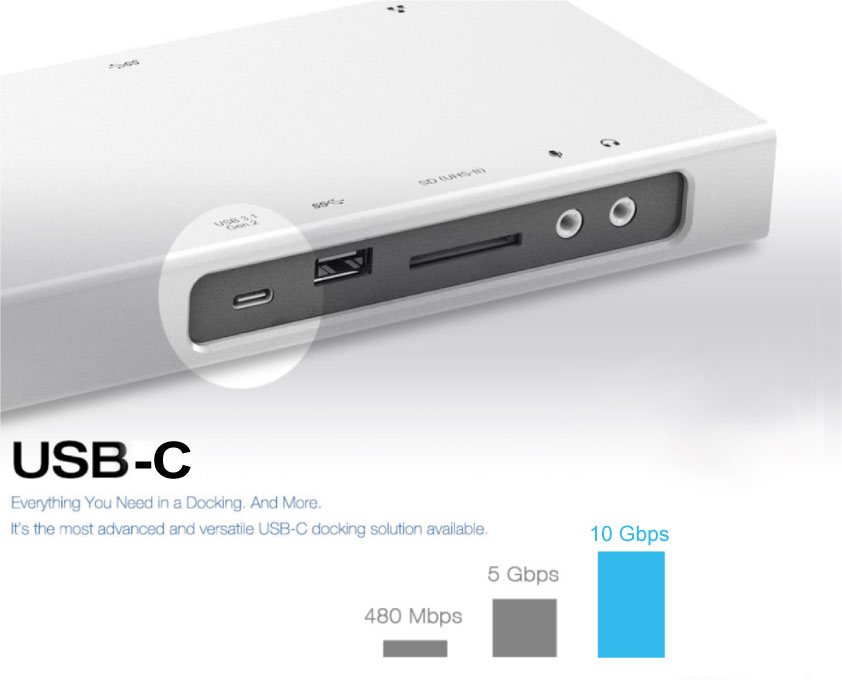

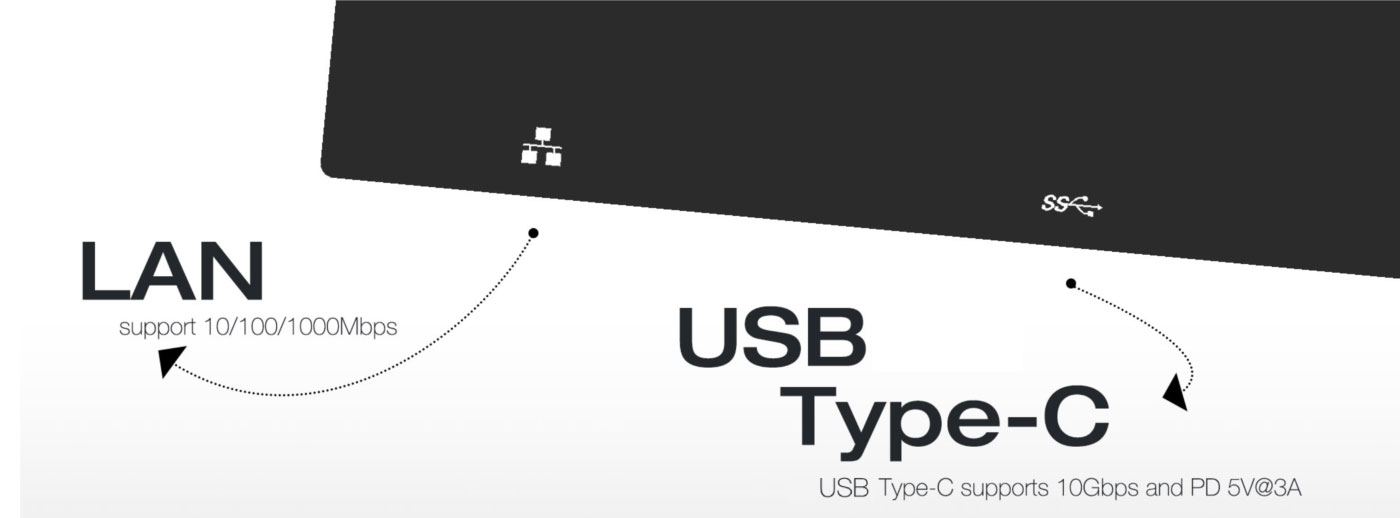

USB Type-C support 10Gbps and PD 5V@3A
LAN Support 10/100/1000Mbps
Everything You need in a Dock
It's the most advanced and versatile USB Type-C docking solution available
Model No. | SI-414TB3 -Single bay SD dock |
Certifications | CE、FCC、RoHS compliance |
Color | Black, Silver |
Material | High-quality metal for optimized heat dissipation |
HDD Type | External HDD Docking Station |
Features | Compact size Supports 2x Thunderbolt™ 3 40Gbps Supports Thunderbolt™ 3 daisy chain Supports single 5K@60Hz (5120x2880) UHD or dual 4K@60Hz display output DisplayPort supports 4K@60Hz Thunderbolt™ 3 ports supports 87W power delivery charging function Asmedia ASM1142 USB3.1 controller. The total bandwidth is twice than FrescoLogic solution dock SD transfer speed up to 270MB/s USB3.1 Type-C supports 10Gbps and PD 5V@3A USB3.0 type A supports 5Gbps and BC1.2 5V@1.5A Audio out and mic input M.2 inside supports PCIe Gen.3 x2 M.2 PCIe SSD, transfer speed up to 1500MB/s Supports 1Gb Ethernet |
Interfaces | 2 x Thunderbolt™ 3 port 1 x DisplayPort 1 x SD(UHS-II) 2 x USB3.0 type-A 1 x USB3.1 Gen.2 type-C 1 x M.2 PCIe SSD (inside) 1 x Audio and Mic |
OS support | Windows / Mac |
