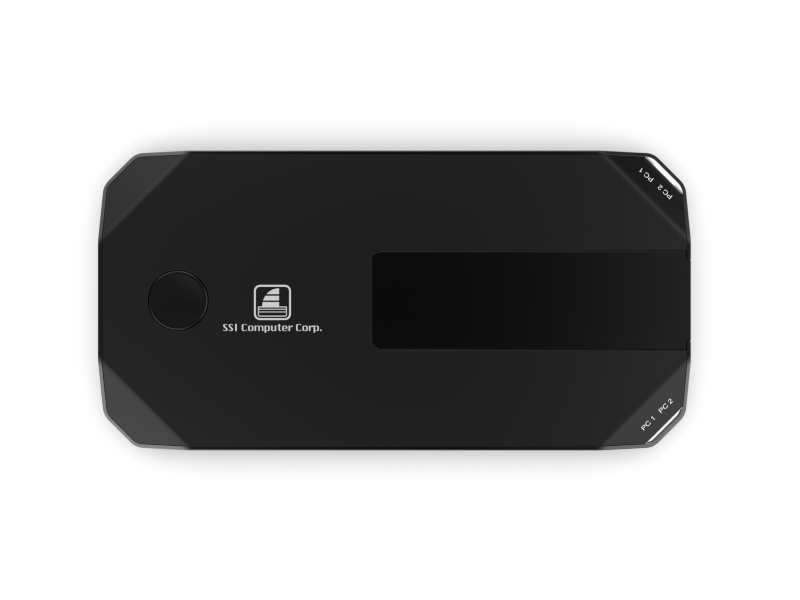

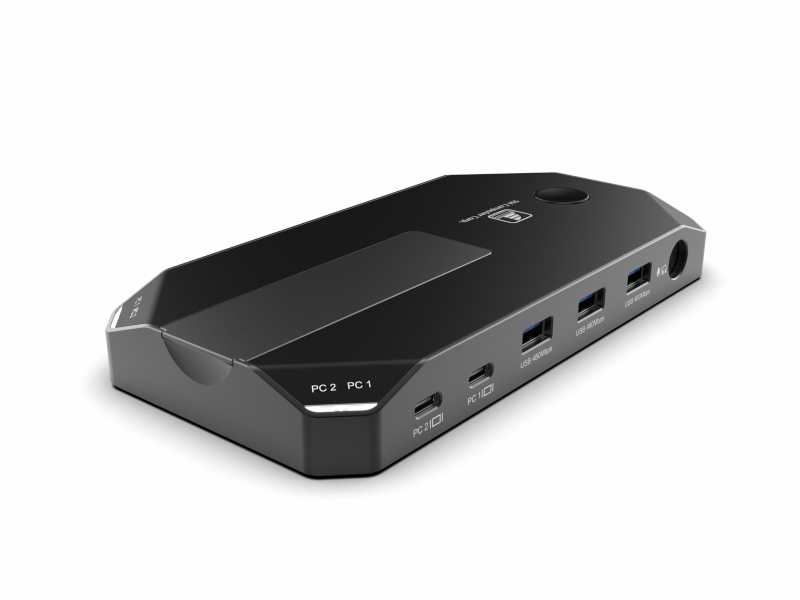

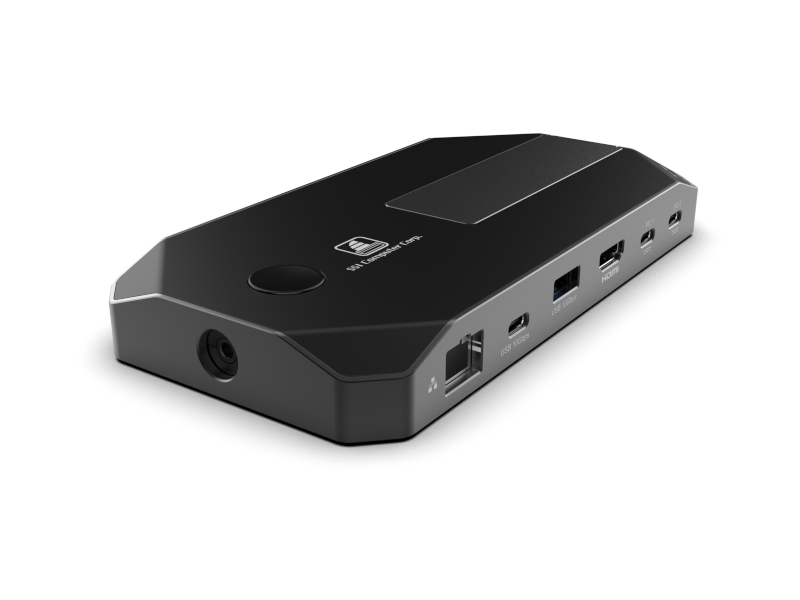

2 to 1 USB-C KVM Docking Station

Model:SI-9904US31C
.1 button to switch input source for PC1/2.
.Support 2 x hosts to transfer and display.
.Enable HDMI2.0 model support 4K@60Hz.
.Compatible with MacBook, thunderbolt.
.Support 2x USB-A/C 10Gpbs data-transfer.
.Support 1x M.2 NVMe or M.2 SATA SSD.
.Support 3x USB-A2.0 HUB external devices.
.1x Ethernet 10M/100M/1000M transceiver.
.Support 1x Audio(headphone & microphone).
.PD3.0 charging for laptop 90W via USB-C.
Contact Download

Model No.

 SI-9904US31C

Item

2 to 1 USB-C KVM Docking Station

Certifications

CE, FCC, RoHS(compliance)

Material

High-quality Aluminum
High-strength ABS+PC plastic

Dimensions

180.0 x 91.0 x 21.0 mm

Interfaces

2 x USB-C DP Alternate port (output)
1 x HDMI2.0 4K@60HZ port (output)
2 x USB-C PD port for PC1/2 (input)
1 x M-Key SSD Connector (built-in)
1 x RJ45 1Gigabit LAN port
1 x USB-A 10Gbps HUB port
1 x USB-C 10Gbps HUB port
3 x USB-A 5G HUB ports
1 x Audio jack

Button

1 x Hosts Option Switchover Button

LED

2 x PC1/PC2 Functional LED indicator

Optional

2 x USB C/C 1M Cable (Not-Mark)
1 x HDMI Cable AM to AM Cable 1M
1 x Retail Color Box & User’s manual

OS Support

Mac OS / Windows

Environment

Operating Temperature: 5°C ~ 55°C
Operating Humidity: 20%RH ~ 80%RH
Storage Temperature: -20°C ~ 50°C
Storage Humidity: 20%RH ~ 80%RH

Features

1 button to switch input source for PC1/2.
Support 2 x hosts to transfer and display.
Enable HDMI2.0 model support 4K@60Hz.
Compatible with MacBook and Thunderbolt.
Support 2x USB-A/C 10Gpbs data-transfer.
Support 1x M.2 NVMe or M.2 SATA SSD
Support 3x USB-A2.0 HUB external devices.
1x Ethernet 10M/100M/1000M transceiver.
Support 1x Audio(headphone & microphone).
PD3.0 charging for laptop 90W via USB-C

Advantages

[KVM Application]
USB-C dual-port input, HDMI 4K@60Hz switch in seconds.
[Screen Sharing]
Used to connect mobile phones, tablets, laptops, and desktops to share a large screen.

[High-Definition Video]
Equipped with HDMI2.0, enjoy high-quality 4K@60Hz video output.[Charging Station]

USB-C with PD3.0 bypass charging for laptops up to 90W via USB-C.
[Light Body]
KVM expansion is designed for personal use, is light & easy to carry.
[Device Sharing]
Mouse/keyboard/external device, no need to plug and plug between two hosts.

[Cost Down]
Users can switch through a set of devices to avoid space clutter.
[Easy Operation]
Equipped with PC1/ 2 switch extension button & LED indicator.

Usage Scenario

[Home Sharing]
Multiple hosts/devices share and switch between 4K@60Hz display.
[Video Creation]
With DP high-definition image output brings ultimate video and audio work efficiency.
[Remote Control]
Multi-device dual display switching control, controlling dual groups of monitors and hosts.
[Work from Home]
Easy switching between two computers, participating in remote conferences, and work from home at the same time.
[Engineering Design]
Multi-window editing, switch between 1 monitors & 2 hosts.
[Financial Investment]
Multi-screen display of investment and financial management, banking, and financial trading cabinets.
[Plant Room]
Single console, improve control and productivity to save costs.

End-User

Home Sharing, Video Creation, Design Engineer, Control Room, Remote Office, Financial Institution, Remote Server, Factory Production, Data Center, Personal Use, General Consumer
