USB4 KVM Dock

Model No.

 SI-453US4

Item

USB4 KVM Dock

Certifications

CE, FCC, RoHS(compliance)

Material

High-quality Aluminum
High-strength ABS+PC plastic

Dimensions

165.0 x 72.00x 21.0 mm

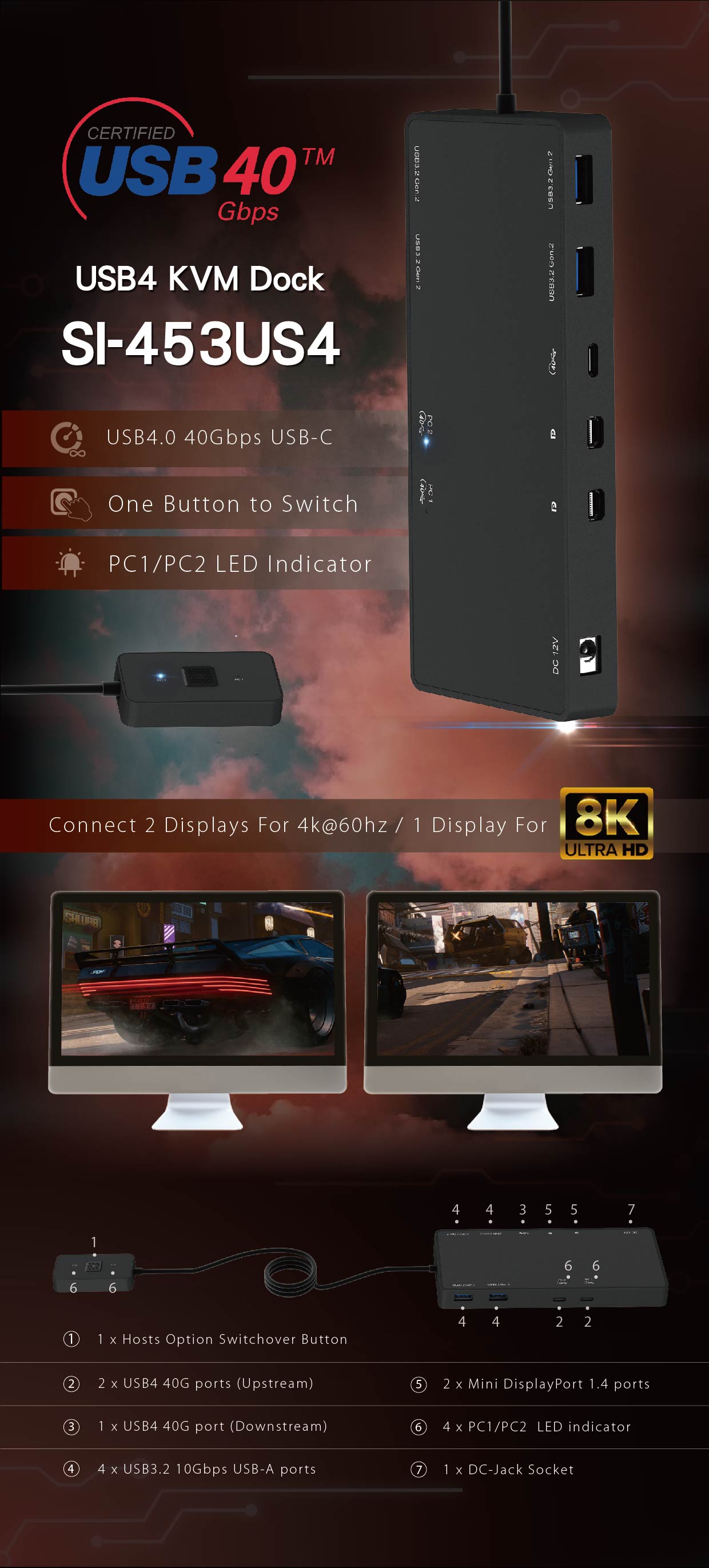

Interfaces

2 x USB4 40G ports (intput)
1 x USB4 40G port (output)
4 x USB3.2 10Gbps USB-A ports
2 x Mini DisplayPort 1.4 4k@60Hz ports
1 x DC-Jack Socket

Button

1 x Hosts Option Switchover Button

LED

2 x PC1/PC2 Functional LED indicator (Dock)
2 x PC1/PC2 Functional LED indicator (Button)

Optional

1 x USB4 40G USB-C to C Cable
1 x Retail Color Box

OS Support

Mac OS / Windows

Environment

Operating Temperature: 5°C ~ 55°C
Operating Humidity: 20%RH ~ 80%RH
Storage Temperature: -20°C ~ 50°C
Storage Humidity: 20%RH ~ 80%RH

Features

．2 to 2 KVM, supports 4K@60Hz output.
．USB4.0 USB-C port supports 40Gbps to host.
．Plug & play, automatically installs drivers.
．Backward compatible with USB3.0/USB2.0.
．2 x Mini DisplayPort1.4, supports 8K@60Hz.
．4 x USB-A supports BC1.2 (5V/2.4A) charging.
．USB-A ports for connecting external devices.
．USB-C supports PD3.0 charging (45W/15W).
．Compatible TB3/4 & USB-C with DP alternate host.

Advantages

[One-Key Switch]
Easy switching between dual hosts, the key extension design is more
[Top Speed]
USB4 is new launched, equipped with the latest 40Gbps interface.
[Device Sharing]
A set of mouse and keyboard devices can be used between two hosts without plugging.
[High-Definition Video]
Support DP1.4 8K@30Hz / 5K@60Hz high-definition video output.
[Cost Saving]
Users can switch through a set of devices to reduce clutter.
[Charging Station]
USB-C supports PD3.0 45W charging. USB-C downstream supports PD3.0 15W charging.
[Special Function]
Equipped with PC1 / PC2 switch extension button and LED indicator.

Usage Scenario

[Home Sharing]
Multiple hosts/devices share and switch between 8K@60Hz display.
[Video Creation]
With DP high-definition image output brings ultimate video work efficiency.
[Remote Control]
Multi-device dual display switching control, controlling dual groups of monitors and hosts.
[Work From Home]
Easy switching between two computers, participating in remote conferences and work from home at the same time.
[Engineering Design]
Multi-window editing, switch between two monitors and hosts.
[Financial Investment]
Multi-screen display of investment and financial management, banking, and financial trading cabinets.
[Plant Room]
Single console, improve control and productivity to save costs.

End-User

Home Sharing, Video Creation, Design Engineer, Control Room, Remote Office, Financial Institution, Remote Server, Factory Production, Data Center, Personal Use, General Consumer
