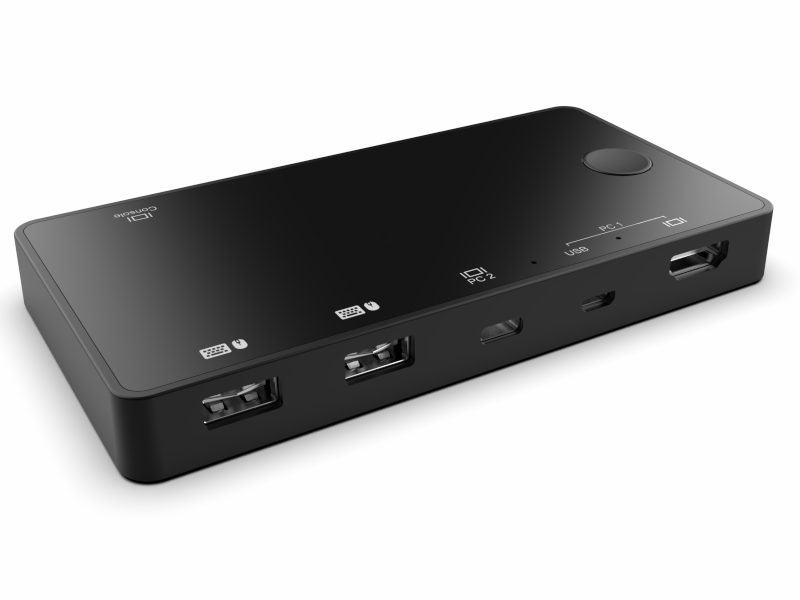

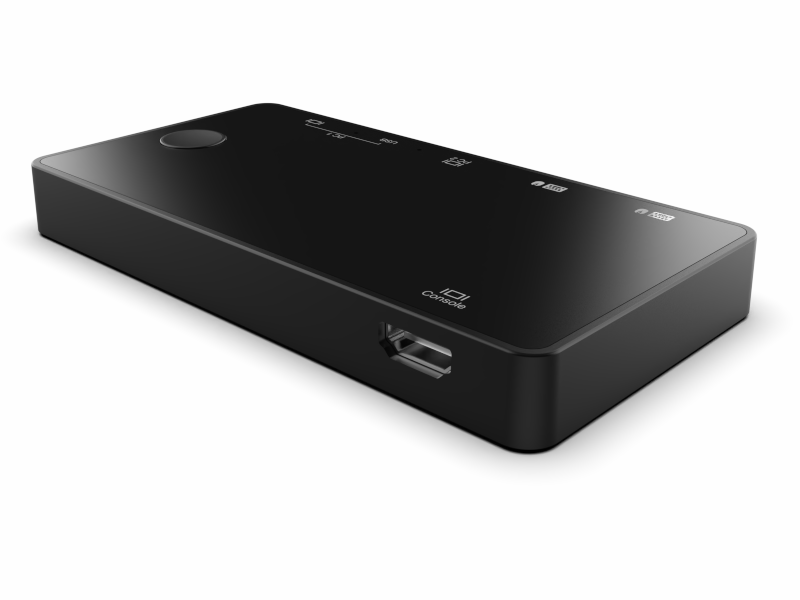

USB-C and legacy USB KVM

USB-C HDMI Switch (SI-420KVM), 2 to 1 KVM, HDMI supports 4K@60Hz output, 1 button to switch the input source for PC1/2.

USB-C and legacy USB KVM

Model：SI-420KVM

．2 to 1 KVM, HDMI® supports 4K@60Hz output.
．1 button to switch the input source for PC1/2.
．USB-A ports for keyboard/mouse connection.
．Compatible with TB/USB-C with DP function.
．Functional LED power and activity indicators.
．Bus-powered, does not need external power.
．OCP function, the device over current power.

Contact Download

Description
Specification

Easy one-touch switching

USB devices & monitior

One Device to link all you need

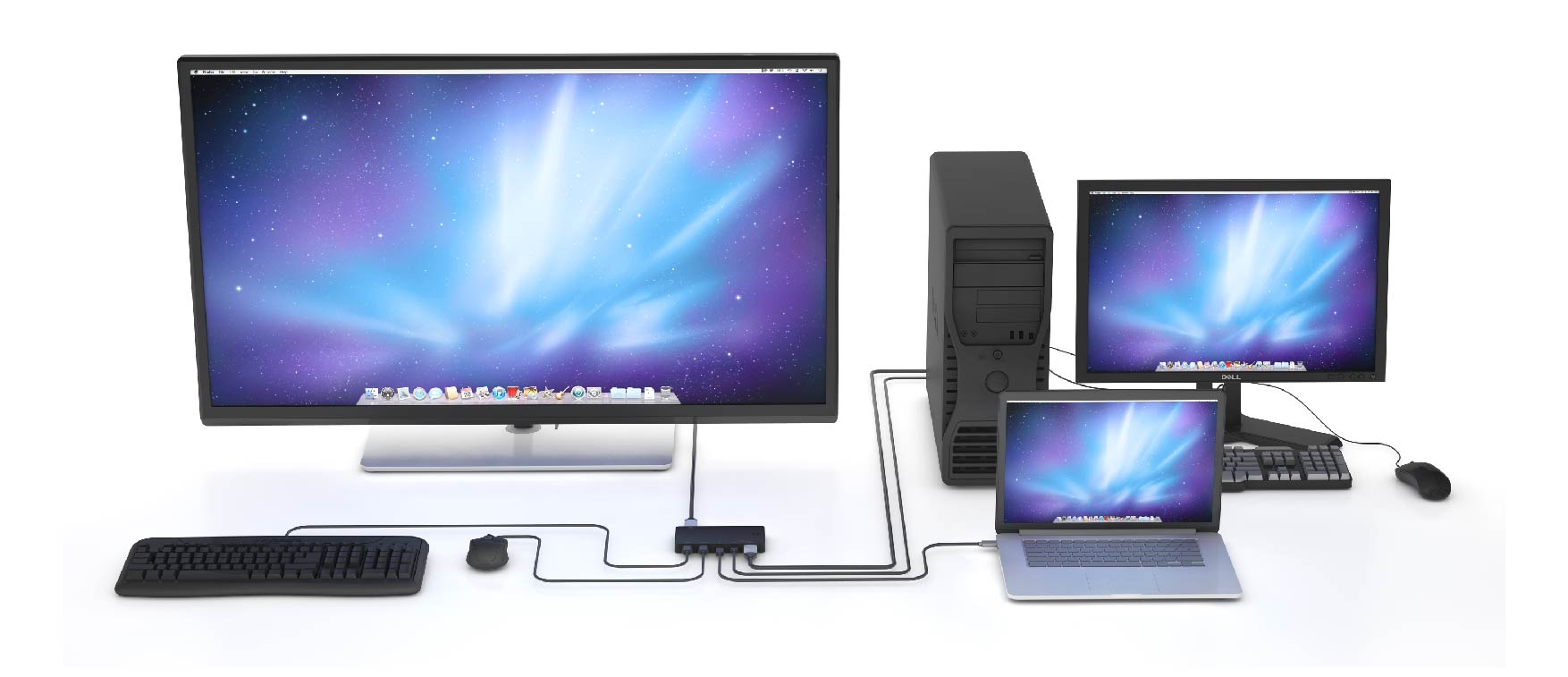

Dual hosts sources to One video output
One USB Type-C Input is compatiable with Thunderbolt 3 for any USB Type-C with DP-AI ternate function
Compatible with MacBook /Pro, PC, Thunderbolt™ 3
HDMI 2.0 for 4K@60Hz output
Bus powered and compact design

2 to 1 KVM switch

HDMI 2.0 output to monitor / project

All KVM Switch OEM Products >>

Model No.	SI-420KVM
Item	USB-C and legacy USB KVM
Certifications	CE, FCC, RoHS(compliance)
Material	High-quality Aluminum High-strength ABS+PC plastic
Dimensions	140.0 x 72.00x 15.7 mm
Interfaces	1 x USB2.0 Micro-B port + 1 x HDMI2.0 4K@60Hz port (input) 1 x USB-C DP-alternate port (input) 1 x HDMI2.0 4K@60Hz port (output) 2 x USB2.0 USB-A ports
LED	2 x PC1/PC2 Functional LED indicator
Button	1 x Hosts Option Switchover Button
Optional	1 x Retail Color Box
OS Support	Mac OS / Windows
Environment	Operating Temperature: 5°C ~ 55°C Operating Humidity: 20%RH ~ 80%RH Storage Temperature: -20°C ~ 50°C Storage Humidity: 20%RH ~ 80%RH
Features	．2 to 1 KVM switch, HDMI supports 4K@60Hz. ．1 button to switch the input source for PC-1/2. ．2 x USB-A for keyboard/mouse connection. ．Compatible with TB/USB-C with DP function. ．Functional LED power and activity indicators. ．Bus-powered, does not need external power. ．OCP function, the device over current power.
Advantages	[KVM Application] Support old port USB2.0 Micro B+HDMI input source. [Thin & Light Body] KVM is designed for personal usage light and is easy to carry. [One-Key Switch] Double hosts sharing one monitor, press one button to immediately switch between different input sources in seconds. [High-Definition Video] Equipped with HDMI2.0 ports, enjoy high-quality 4K@60Hz output. [Device Sharing] Mouse/keyboard/external device, no need to plug & unplug for hosts. [Cost Down] Users can switch through a set of devices to avoid space clutter. [Easy Operation] Equipped with PC1 / PC2 switch and functional LED indicator.
Usage Scenario	[Home Sharing] Multiple hosts/devices share and switch between 4K@60Hz displays. [Video Creation] With DP high-definition image output brings ultimate video and audio work efficiency. [Remote Control] Multi-device dual display switching control, controlling dual groups of monitors and hosts. [Work from Home] Easy switching between two computers, participating in remote conferences, and working from home at the same time. [Engineering Design] Multi-window editing, switch between two monitors and hosts. [Financial Investment] Multi-screen display of investment and financial management, banking, and financial trading cabinets. [Plant Room] Single console, improve control and productivity to save costs.
End-User	Home Sharing, Video Creation, Design engineering, Control Room, Remote Office, Financial Institution, Remote Server, Factory Production, Data Center, Personal Use, General Consumer
