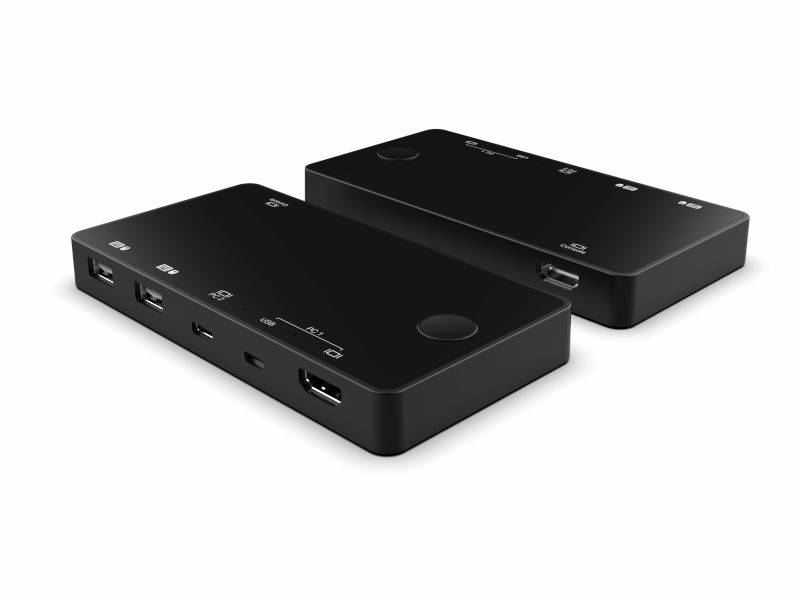

USB-C KVM

Model：SI-421KVM

．2 to 1 KVM, 1x HDMI®2.0 supports 4K@60Hz.
．1 button to switch the input source for PC1/2.
．USB-A ports for keyboard/mouse connection.
．Compatible with TB/ USB-C with DP function.
．Functional LED power and activity indicators.
．Bus-powered, does not need external power.
．OCP function, the device over current power.

Contact Download

Easy one-touching switching

USB devices & monitor console between 2 Hosts

One Device to link all you need

Dual hosts sources to One video output
One USB Type-C Input is compatible with Thunderbolt 3 for any USB Type-C with DP-AI ternate function
Compatible with MacBook /Pro, PC, Thunderbolt™ 3
HDMI 2.0 for 4K@60Hz output
Bus-powered and compact design

Easy one-touch switching

USB devices & monitor

All KVM Switch OEM Products >>

Model No.	SI-421KVM
Item	USB-C KVM Dock
Certifications	CE, FCC, RoHS(compliance)
Material	High-quality Aluminum High-strength ABS+PC plastic
Dimensions	140.0 x 72.00x 15.7 mm
Interfaces	2 x USB-C ports (input) 1 x HDMI2.0 4K@60Hz port (output) 2 x USB2.0 USB-A ports
Button	1 x Hosts Option Switchover Button
LED	2 x PC1/PC2 Functional LED indicator
Optional	1 x Retail Color Box
OS Support	Mac OS / Windows
Environment	Operating Temperature: 5°C ~ 55°C Operating Humidity: 20%RH ~ 80%RH Storage Temperature: -20°C ~ 50°C Storage Humidity: 20%RH ~ 80%RH
Features	．2 to 1 KVM switch, HDMI 2.0 supports 4K@60Hz. ．One button to switch the input source for PC-1/2. ．2 x USB-A for keyboard/mouse connection. ．Compatible TBT and USB-C with DP function. ．Functional LED power and activity indicators. ．Bus-powered, does not need external power. ．OCP function, the device over current power.
Advantages	[KVM Application] USB-C dual-port input to HDMI2.0 output switch in seconds. [Screen Sharing] Connect mobile phones, tablets, laptops, and desktops to share large screen. [High-Definition Video] Equipped with HDMI2.0 ports, enjoy high-quality 4K@60H output. [Device Sharing] Mouse/keyboard/external device, no need to plug & unplug for hosts. [Light Body] KVM expansion box designed for personal use, light and easy to carry. [Cost Down] Users can switch through a set of devices to avoid space clutter. [Easy Operation] Equipped with PC1 / PC2 switch and functional LED indicator.
Usage Scenario	[Home Sharing] Multiple hosts/devices share and switch between 4K@60Hz display. [Video Creation] With DP high-definition image output brings ultimate video work efficiency. [Remote Control] Multi-device dual display switching control, controling dual groups of monitors and hosts. [Work from Home] Easy switching between two computers, participating in remote conferences and work from home at the same time. [Engineering Design] Multi-window editing, switch between two monitors and hosts. [Financial Investment] Multi-screen display of investment and financial management, banking, and financial trading cabinets. [Plant Room] Single console, improve control and productivity to save costs.
End-User	Home Sharing, Video Creation, Design Engineer, Control Room, Remote Office, Financial Institution, Remote Server, Factory Production, Data Center, Personal Use, General Consumer
